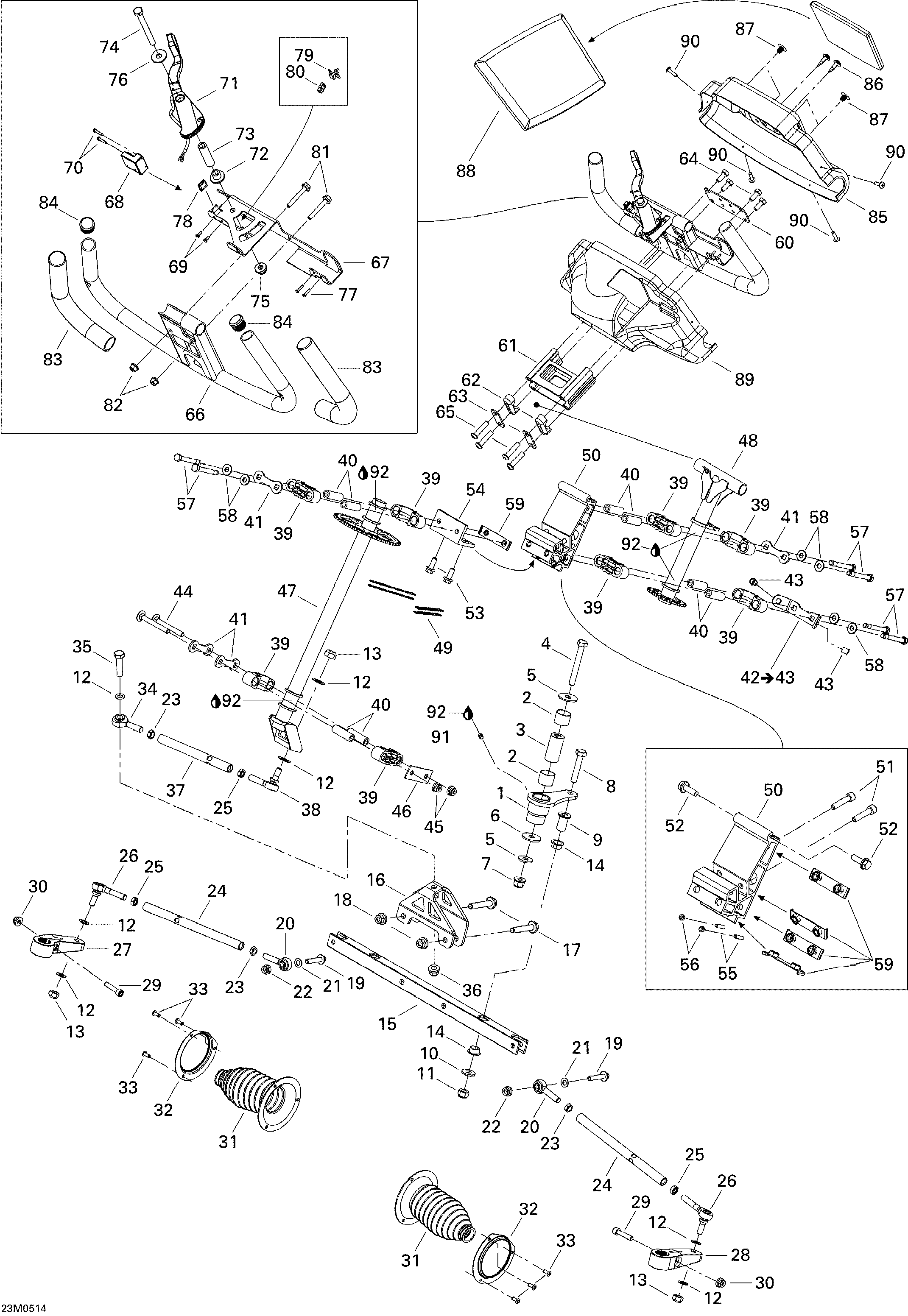

07- Steering System для BRP Ski-Doo Elite 1500 2nd Edition - 2004
-
№АртикулНазвание
-
1506151623 LH Swivel ArmLH Swivel Arm
-
2506149900 Bushing SwivelBushing Swivel
-
3506150100 Pivot SwivelPivot Swivel
-
4207008086 Hex Screw M10 X 80Hex Screw M10 X 80
-
5506150000 Washer 10 mmWasher 10 mm
-
6506151251 WasherWasher
-
7732610084 Hex Flanged Nut M10Hex Flanged Nut M10
-
8207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
9506147300 Bar PivotBar Pivot
-
10224002251 Flat WasherFlat Washer
-
11233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
12503175800 WasherWasher
-
13232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
14506150200 Bushing SwivelBushing Swivel
-
15506151842 Swivel BarSwivel Bar
-
16506151750 Swivel Bar PlateSwivel Bar Plate
-
17207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
18233201416 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
19207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
20506151496 LH Ball JointLH Ball Joint
-
21506151252 WasherWasher
-
22233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
23250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
24506151374 Tie-RodTie-Rod
-
25732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
26506151491 Ball JointBall Joint
-
27506145800 RH Steering ArmRH Steering Arm
-
28506145900 LH Steering ArmLH Steering Arm
-
29205083544 Socket Head Screw M8 X 35Socket Head Screw M8 X 35
-
30233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
31570070500 Tie-Rod CapTie-Rod Cap
-
32506151100 Retainer RingRetainer Ring
-
33390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
34506151810 LH Ball JointLH Ball Joint
-
35207004544 Hex Screw M10 X 45Hex Screw M10 X 45
-
36233201416 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
37506151585 Inside Tie-RodInside Tie-Rod
-
38506151492 RH Ball JointRH Ball Joint
-
39506150400 Housing HalfHousing Half
-
40506150500 Housing BushingHousing Bushing
-
41506150600 Stopper PlateStopper Plate
-
42506151885 Stopper Plate Ass'Y. Includes 42 to 43Stopper Plate Ass'Y. Includes 42 to 43
-
43415107300 InsertInsert
-
44207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
45233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
46506151934 Reinforcement PlateReinforcement Plate
-
47506151586 Inferior Main TubeInferior Main Tube
-
48506151744 Superior Main TubeSuperior Main Tube
-
49506151755 Chain #35Chain #35
-
50506151734 Superior BracketSuperior Bracket
-
51205583544 Socket Head Screw M8 X 35 Scotch GripSocket Head Screw M8 X 35 Scotch Grip
-
52210282540 Hex Forming Screw M8 X 25Hex Forming Screw M8 X 25
-
53207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
54506151749 TensionnerTensionner
-
55206252044 Socket Set Screw M5 X 20Socket Set Screw M5 X 20
-
56232051600 Hex Nut M5Hex Nut M5
-
57207286544 Hex Screw (Scotch Grip) M8 X 65Hex Screw (Scotch Grip) M8 X 65
-
58224081201 Flat WasherFlat Washer
-
59506151841 BracketBracket
-
60506151757 PlatePlate
-
61506151756 ExtensionExtension
-
62506151622 Steering SupportSteering Support
-
63506151196 ReinforcementReinforcement
-
64250000118 Hex Screw With NylonHex Screw With Nylon
-
65205483546 Socket Head Screw M8 X 35Socket Head Screw M8 X 35
-
66506151589 SteeringSteering
-
67506151965 Control SupportControl Support
-
68506151850 Switch HolderSwitch Holder
-
69207130860 Hex Screw M3 X 08Hex Screw M3 X 08
-
70205431660 Socket Head Screw M3 X 16Socket Head Screw M3 X 16
-
71512060021 Lever Ass'yLever Ass'y
-
72506151763 Pivot BushingPivot Bushing
-
73506151762 BushingBushing
-
74207088044 Hex Screw M8 X 80Hex Screw M8 X 80
-
75233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
76234082410 Flat Washer M8Flat Washer M8
-
77250000022 Phillips ScrewPhillips Screw
-
78415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
79293750010 Tie-rap MountTie-rap Mount
-
80293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
81207664044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
82233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
83506151914 GripGrip
-
84572110800 CapCap
-
85506151865 Front PadFront Pad
-
86211000088 Phillips ScrewPhillips Screw
-
87293730010 Dart, BlackDart, Black
-
88506151592 Steering PadSteering Pad
-
89506151962 Back EnvelopeBack Envelope
-
90250000031 Phillips Tapping Screw M4.8 X 16Phillips Tapping Screw M4.8 X 16
-
91408200700 Grease FittingGrease Fitting
-
92219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
