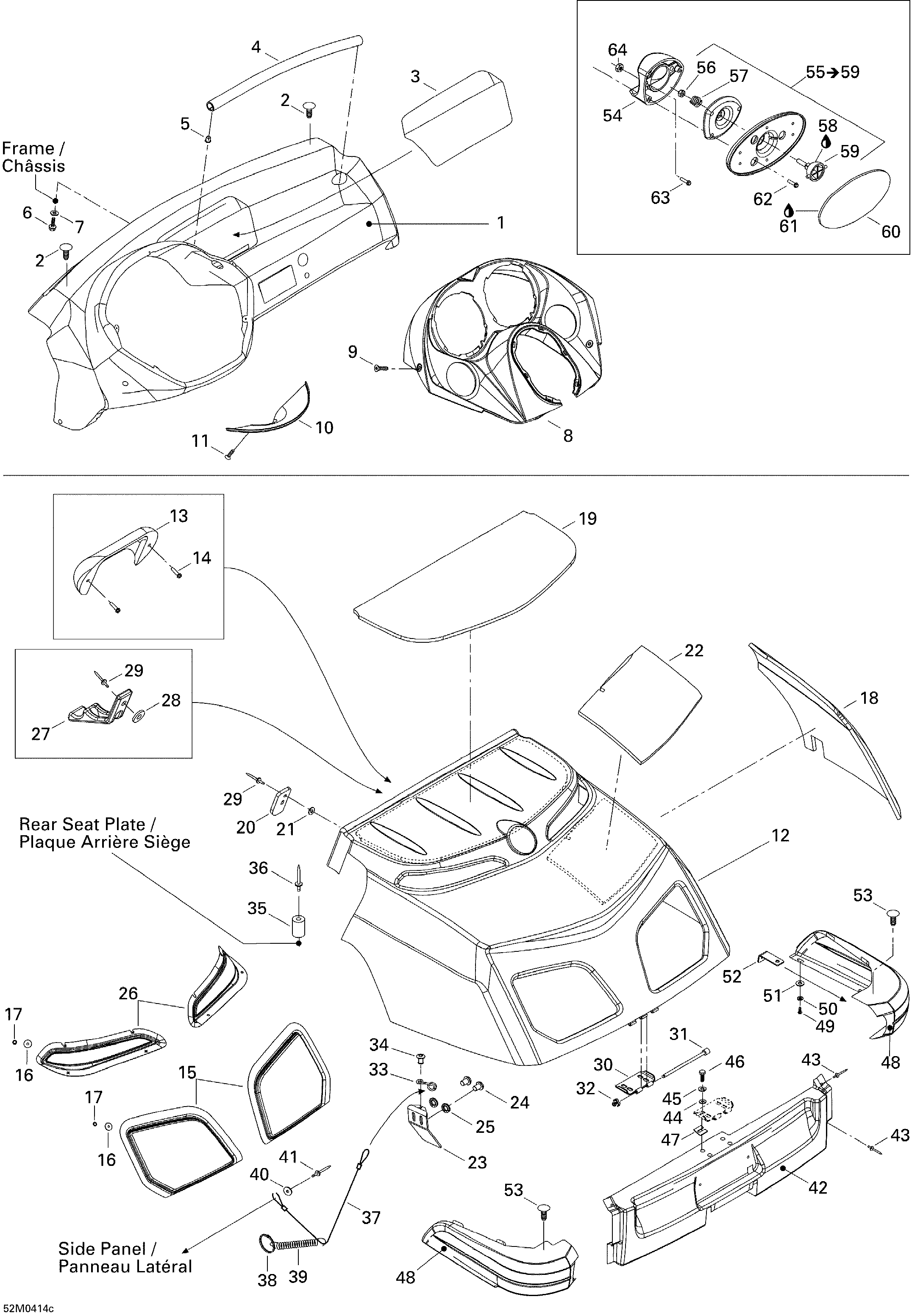

09- Body Rear and Accessories для BRP Ski-Doo Elite 1500 1st Edition - 2004
-
№АртикулНазвание
-
1517302882 DashDash
-
2517303276 Gray DartGray Dart
-
3517302884 Access Door (Headlamp)Access Door (Headlamp)
-
4517303226 Handle GripHandle Grip
-
5415107300 InsertInsert
-
6207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7234062410 Flat Washer 6 mmFlat Washer 6 mm
-
8517302885 Gauge SupportGauge Support
-
9250000031 Phillips Tapping Screw M4.8 X 16Phillips Tapping Screw M4.8 X 16
-
10517303146 Lower Dash CoverLower Dash Cover
-
11250000172 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
12517302909 Engine HoodEngine Hood
-
13517303116 HandleHandle
-
14241141660 Flanged Hex Screw K40 X 16Flanged Hex Screw K40 X 16
-
15517303058 Rear Grill RHRear Grill RH
-
15517303059 Rear Grill LHRear Grill LH
-
16250200029 Washer 6 mmWasher 6 mm
-
17250100020 Locking NutLocking Nut
-
18517303267 Side FoamSide Foam
-
19517302914 Upper FoamUpper Foam
-
20517303269 Upper Guide LHUpper Guide LH
-
517303300 Upper Guide RHUpper Guide RH
-
21517225900 Flat WasherFlat Washer
-
22517303268 Middle FoamMiddle Foam
-
23517303115 Hood GuideHood Guide
-
24205460860 Socket Screw M6 X 8Socket Screw M6 X 8
-
25234161601 Lock Washer 6 mmLock Washer 6 mm
-
26517303060 Upper Grill RHUpper Grill RH
-
517303061 Upper Grill LHUpper Grill LH
-
27570027100 Hood LatchHood Latch
-
28234052400 Stainless Flat Washer 5 mmStainless Flat Washer 5 mm
-
29293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
30517303129 Lower Half HingeLower Half Hinge
-
31204070204 Hinge RodHinge Rod
-
32204070205 Cotter Pin M2.5X12Cotter Pin M2.5X12
-
33517262800 BracketBracket
-
34390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
35293830043 Rubber StopperRubber Stopper
-
36390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
37415093900 Retainer CableRetainer Cable
-
38415058300 RingRing
-
39415043300 SpringSpring
-
40234052400 Stainless Flat Washer 5 mmStainless Flat Washer 5 mm
-
41390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
42517302918 Rear CapRear Cap
-
43293150065 RivetRivet
-
44224060251 WasherWasher
-
45234161601 Lock Washer 6 mmLock Washer 6 mm
-
46207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
47517303432 SpacerSpacer
-
48517302919 Bumper Corner RHBumper Corner RH
-
517302920 Bumper Corner LHBumper Corner LH
-
49205462060 Socket Screw M6 X 20Socket Screw M6 X 20
-
50234161601 Lock Washer 6 mmLock Washer 6 mm
-
51234062600 Flat Washer 6 mmFlat Washer 6 mm
-
52517303318 Corner SupportCorner Support
-
53517303276 Gray DartGray Dart
-
54517303217 Mirror AdapterMirror Adapter
-
55517303245 Mirror Frame Ass'Y. Includes 55 to 59Mirror Frame Ass'Y. Includes 55 to 59
-
56232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
57269500453 Mirror SpringMirror Spring
-
58293550010 Synthetic Grease, 400 gr.Synthetic Grease, 400 gr.
-
59269500079 Mirror Ball JointMirror Ball Joint
-
60269500454 MirrorMirror
-
61296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
62241141660 Flanged Hex Screw K40 X 16Flanged Hex Screw K40 X 16
-
63205451646 Socket Screw M5 X 16Socket Screw M5 X 16
-
64233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
