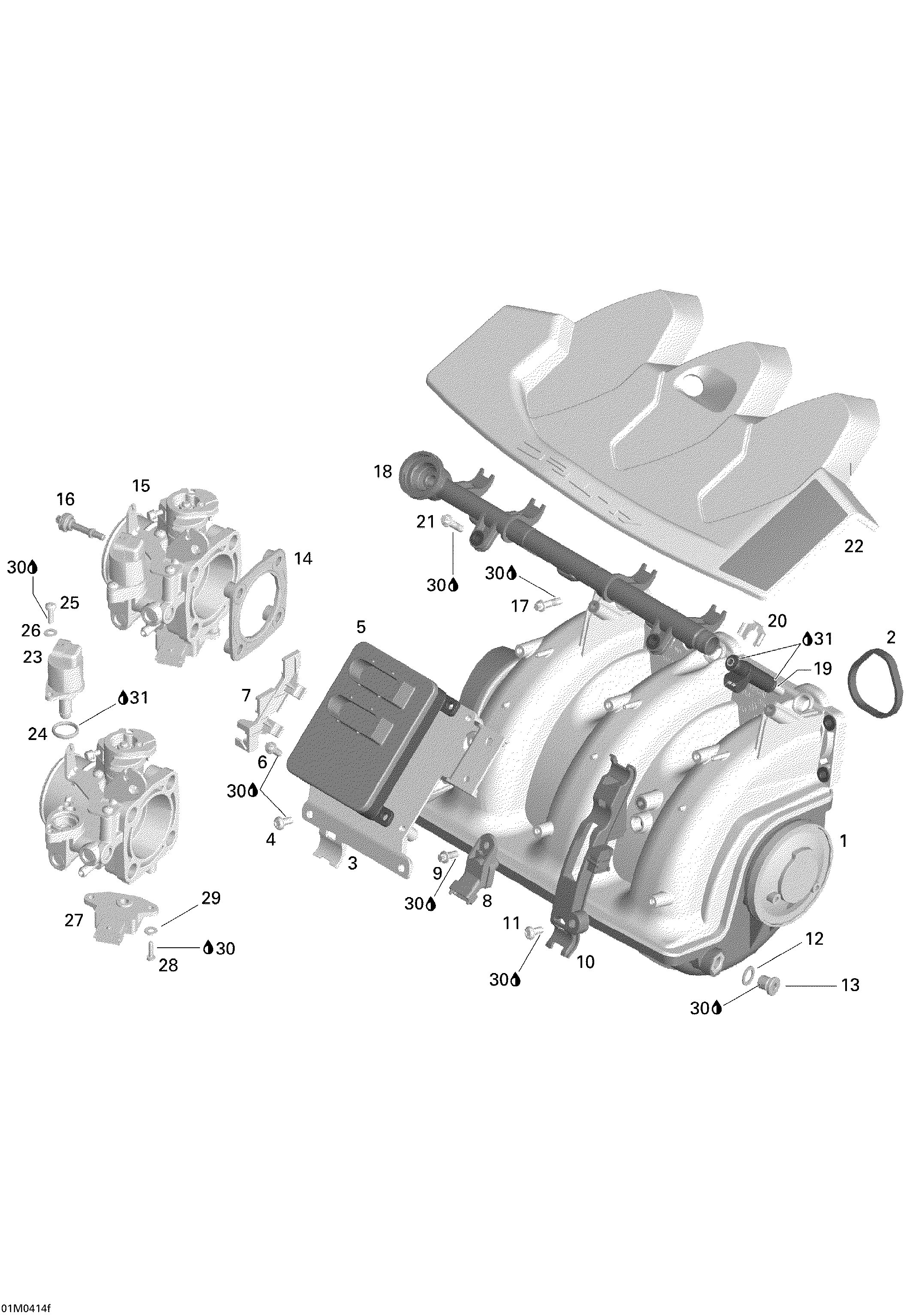

01- Intake Manifold для BRP Ski-Doo Elite 1500 1st Edition - 2004
-
№АртикулНазвание
-
1420867950 Induction ManifoldInduction Manifold
-
2420950740 GasketGasket
-
3420851521 Base PlateBase Plate
-
4420641048 Torx Flanged Screw M6 X 1Torx Flanged Screw M6 X 1
-
5420664921 Electronic BoxElectronic Box
-
6420641583 Torx Flanged Screw M6Torx Flanged Screw M6
-
7420660402 Connector BracketConnector Bracket
-
8420274055 Temperature SensorTemperature Sensor
-
9420641048 Torx Flanged Screw M6 X 1Torx Flanged Screw M6 X 1
-
10420660410 Wiring SupportWiring Support
-
11420641583 Torx Flanged Screw M6Torx Flanged Screw M6
-
12420250640 GasketGasket
-
13420241700 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
14420950792 Rubber GasketRubber Gasket
-
15420888906 Throttle Body SocketThrottle Body Socket
-
16420440560 Torx Screw M6 X 30,5Torx Screw M6 X 30,5
-
17420641238 Torx Flanged Screw M6 X 2Torx Flanged Screw M6 X 2
-
18420874391 Fuel Rail Ass'YFuel Rail Ass'Y
-
19420874525 InjectorInjector
-
20420851531 Injector ClipInjector Clip
-
21420641238 Torx Flanged Screw M6 X 2Torx Flanged Screw M6 X 2
-
22420660175 CoverCover
-
23420963050 Idle Bypass ValveIdle Bypass Valve
-
24420631780 O-RingO-Ring
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31293600054 Engine Oil 4 Strokes, 0W40, 12 X 1 LiterEngine Oil 4 Strokes, 0W40, 12 X 1 Liter
