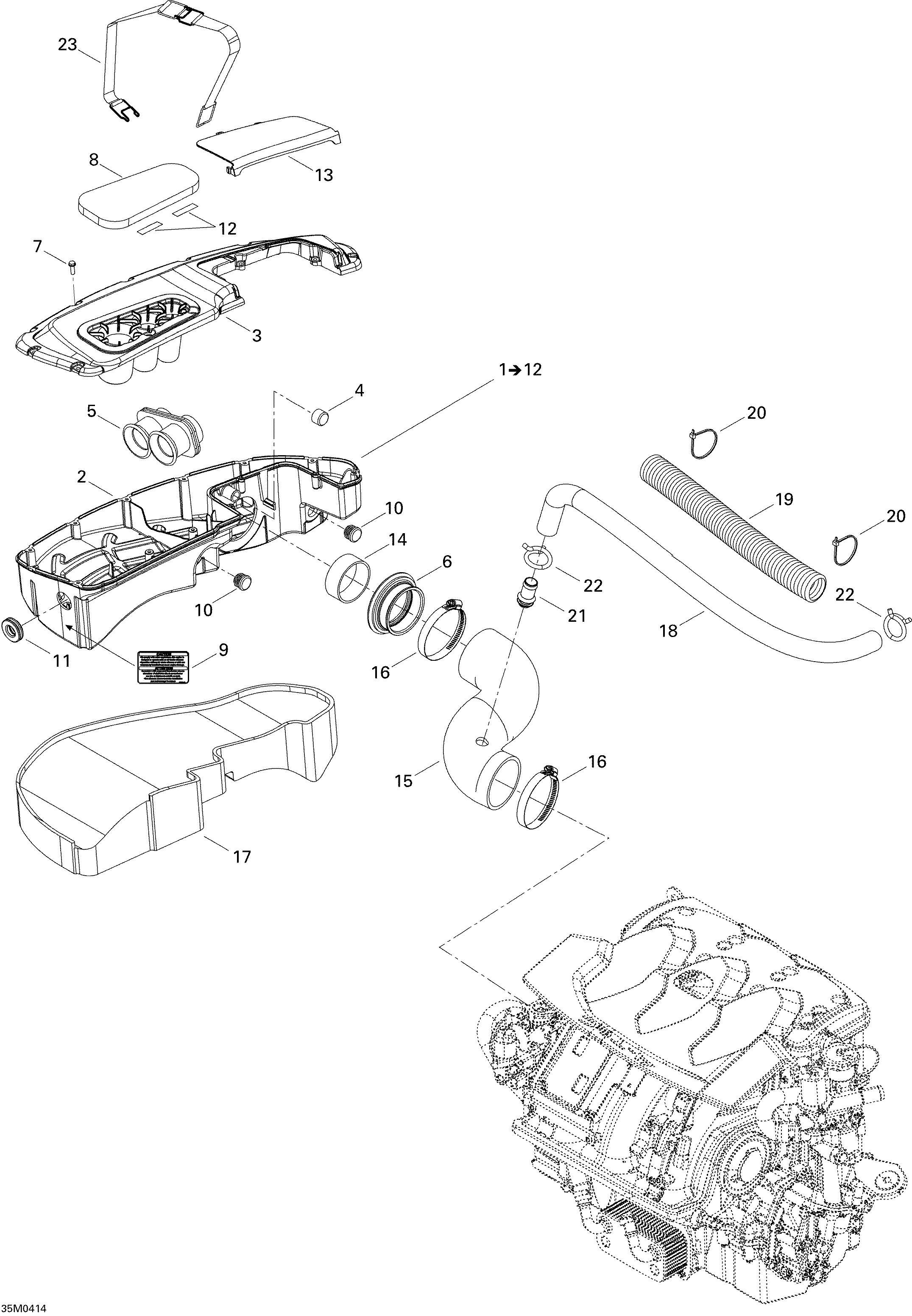

02- Air Intake для BRP Ski-Doo Elite 1500 1st Edition - 2004
-
№АртикулНазвание
-
1508000322 Air Silencer Ass'Y. Includes 1 to 12Air Silencer Ass'Y. Includes 1 to 12
-
4504151825 CapCap
-
5273000107 Inlet TubeInlet Tube
-
6508000254 Intake AdaptatorIntake Adaptator
-
7243141680 Hex Screw M4.8 X 1.8Hex Screw M4.8 X 1.8
-
8508000251 Air FilterAir Filter
-
9516001191 Caution Label (Air Intake)Caution Label (Air Intake)
-
10572110800 CapCap
-
11570065500 GrommetGrommet
-
12415110900 Velcro 1/2''Velcro 1/2''
-
13508000253 DoorDoor
-
14204250275 Admission Adaptor SupportAdmission Adaptor Support
-
15508000396 Hose IntakeHose Intake
-
16293650006 Tridon ClampTridon Clamp
-
17508000324 Air Intake SupportAir Intake Support
-
18508000442 HoseHose
-
19415084700 Protective ShieldProtective Shield
-
20414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
21273000195 BreatherBreather
-
22293650115 Spring ClampSpring Clamp
-
23293850038 Fuel Tank StrapFuel Tank Strap
