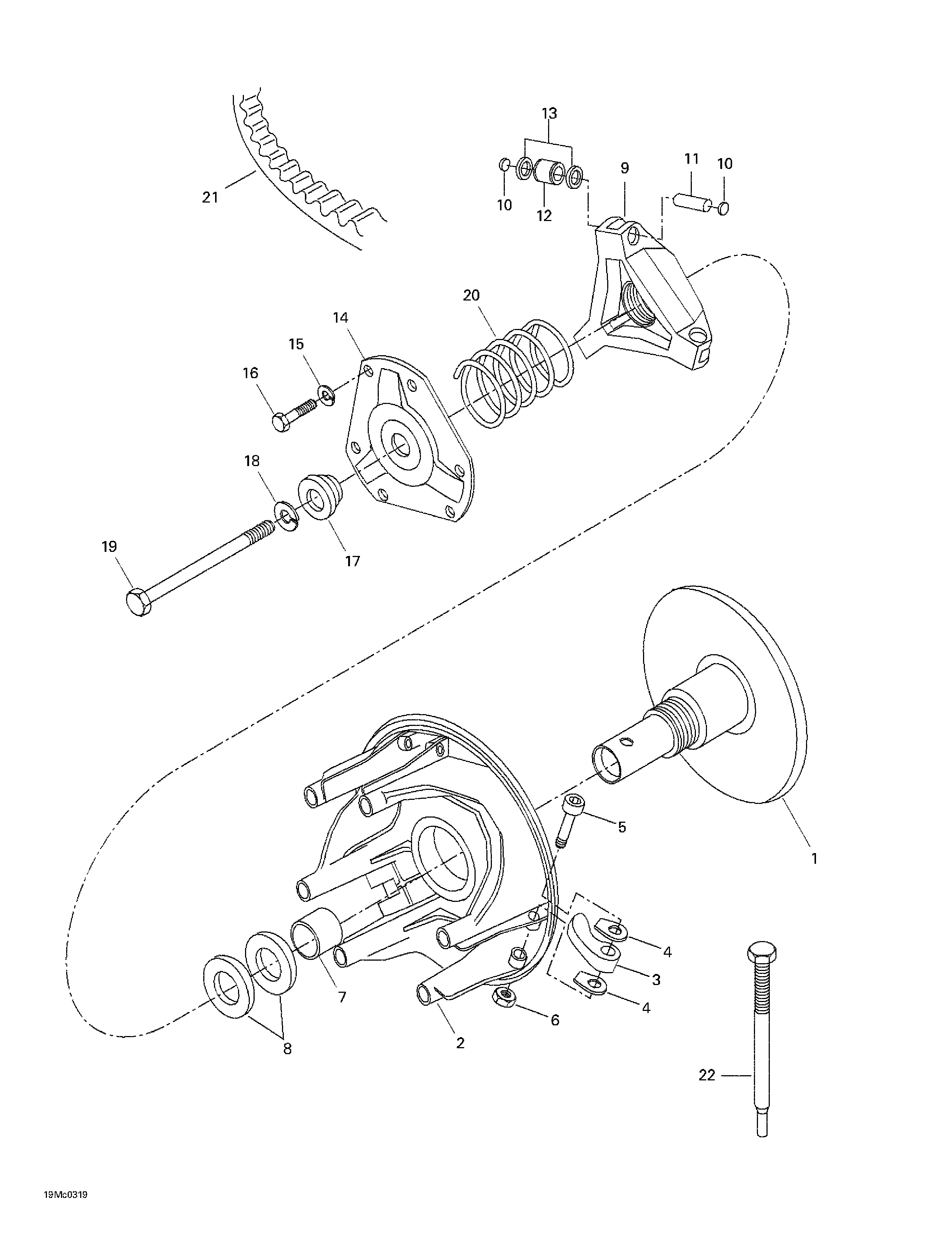

05- Drive Pulley для BRP Ski-Doo Skandic LT 440F - 2003

  • №
    Артикул
    Название
  • 1
    M140028 Inner flange
    Inner flange
  • 4
    M140042 Pin Armkit. Includes 4 - 6.
    Pin Armkit. Includes 4 - 6.
  • 8
    M140022 Spider shim
    Spider shim
  • 9
    M140017 Spider ass'y
    Spider ass'y
  • 11
    M140020 Pin
    Pin
  • 13
    M140019 Stopper washer
    Stopper washer
  • 15
    M140043 Bolt and washer set. Includes 15 - 16.
    Bolt and washer set. Includes 15 - 16.
  • 17
    M140013 Pivot washer
    Pivot washer
  • 18
    M20090 Conical spring washer 14 mm
    Conical spring washer 14 mm
  • 19
    417113800 Drive pulley bolt
    Drive pulley bolt
  • 21
    414633800 Drive belt
    Drive belt
  • 22
    529025000 Drive puller
    Drive puller
