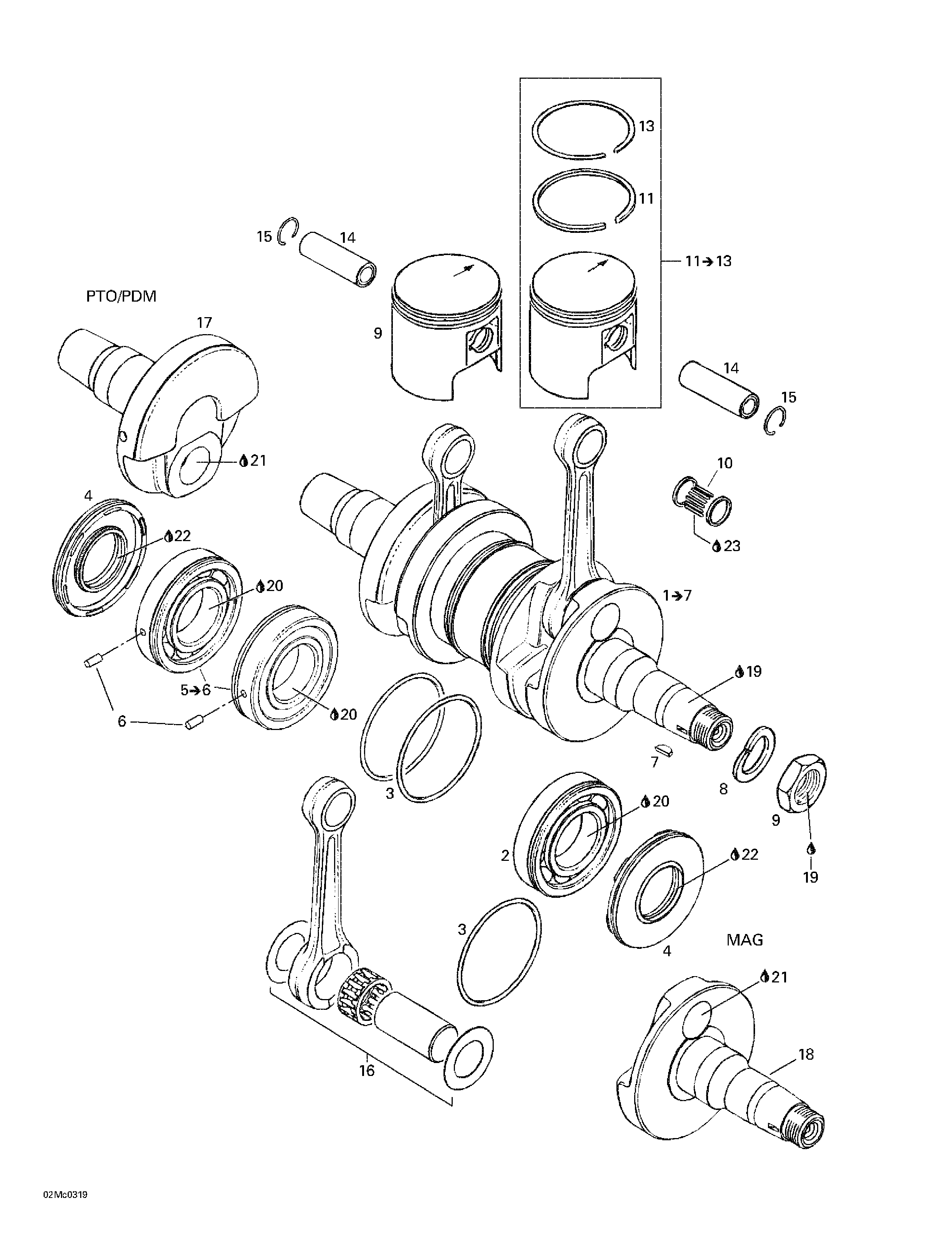

01- Crankshaft And Pistons для BRP Ski-Doo Skandic LT 440F - 2003

  • №
    Артикул
    Название
  • 1
    420887249 Crankshaft ass'y. Includes 1 - 7.
    Crankshaft ass'y. Includes 1 - 7.
  • 2
    420832570 Ball bearing >
    Ball bearing >
  • 3
    293300022 O-ring 64 mm
    O-ring 64 mm
  • 4
    290831952 Oil seal
    Oil seal
  • 5
    420832574 Ball bearing >. Includes 5 - 6.
    Ball bearing >. Includes 5 - 6.
  • 6
    420929972 Dowel pin
    Dowel pin
  • 7
    420246055 Woodruff key
    Woodruff key
  • 8
    420842230 Hex. nut M22
    Hex. nut M22
  • 9
    420945759 Lock washer 22 mm
    Lock washer 22 mm
  • 10
    420832325 Needle bearing
    Needle bearing
  • 11
    420887485 Piston ass'y 67.43 mm. Includes 11 - 13.
    Piston ass'y 67.43 mm. Includes 11 - 13.
  • 420887486 Oversize piston ass'y 67.68 mm
    Oversize piston ass'y 67.68 mm
  • 420887487 Oversize piston ass'y 67.93 mm
    Oversize piston ass'y 67.93 mm
  • 11
    420915960 Rectangular ring 67.5 mm
    Rectangular ring 67.5 mm
  • 420915961 Rectangular ring 67.75 mm
    Rectangular ring 67.75 mm
  • 420915962 Rectangular ring 68 mm
    Rectangular ring 68 mm
  • 13
    420915845 Semi-Trapez ring 67.5 mm
    Semi-Trapez ring 67.5 mm
  • 420915846 Semi-Trapez ring 67.75 mm
    Semi-Trapez ring 67.75 mm
  • 420915847 Semi-Trapez ring 68 mm
    Semi-Trapez ring 68 mm
  • 14
    420916136 Piston pin
    Piston pin
  • 15
    420945735 Circlip
    Circlip
  • 16
    420996334 Rod repair kit
    Rod repair kit
  • 17
    420818204 Crankshaft half PTO
    Crankshaft half PTO
  • 18
    420819010 Crankshaft half MAG
    Crankshaft half MAG
  • 19
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 20
    293800070 Loctite 767, antiseize lubricant, 8 oz
    Loctite 767, antiseize lubricant, 8 oz
  • 21
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • 22
    413707000 Molykote 111
    Molykote 111
  • 23
    413802900 Injection oil (12 x 1 liter)
    Injection oil (12 x 1 liter)
