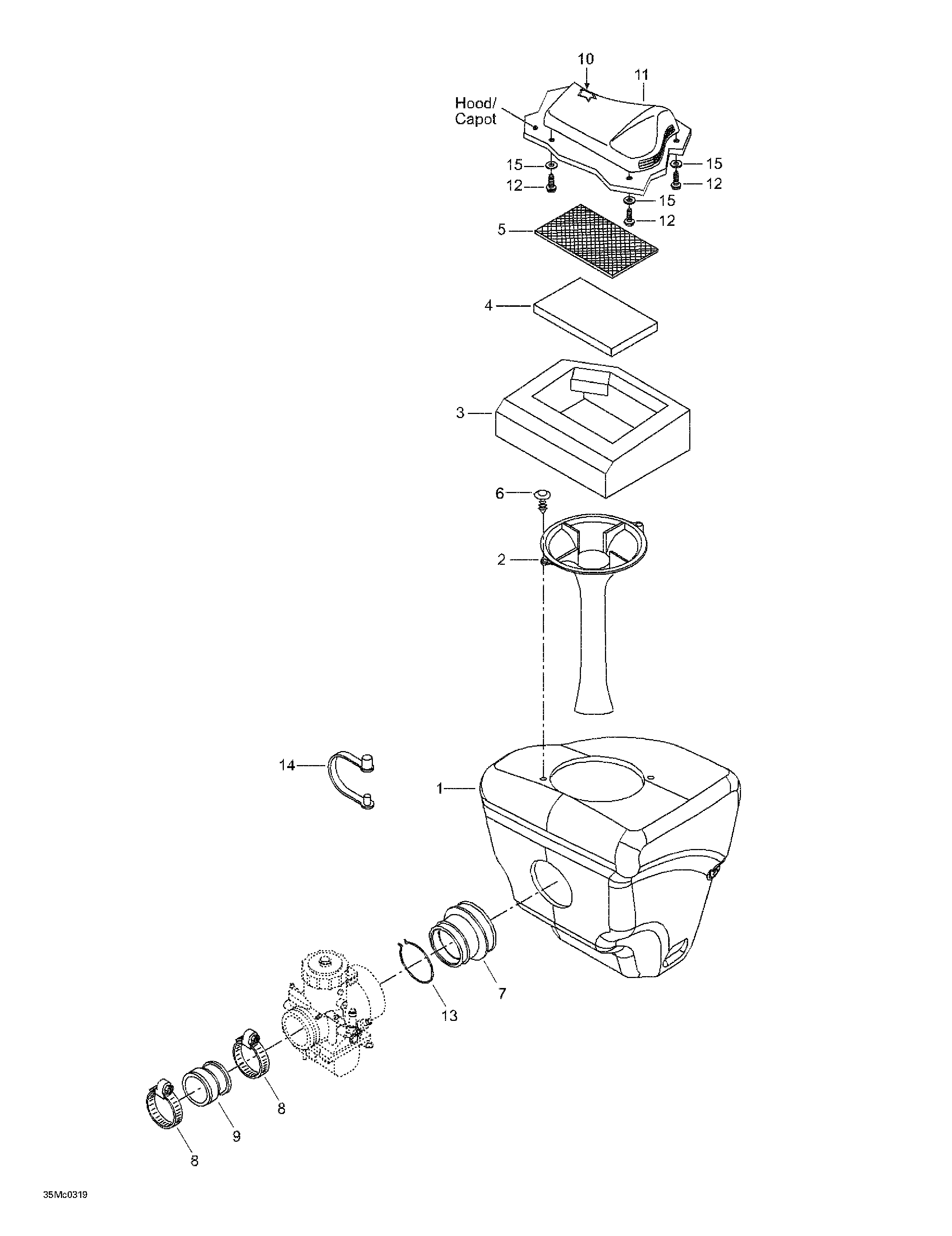

02- Air Silencer для BRP Ski-Doo Skandic LT 440F - 2003
-
№АртикулНазвание
-
1M5145397 Air intakeAir intake
-
2572054803 Inlet tubeInlet tube
-
3M5346536 Lower foamLower foam
-
4M5345398 Air filterAir filter
-
5M5346220 Intake grillIntake grill
-
6414644300 Windshield DartWindshield Dart
-
7M5245961 Air adaptorAir adaptor
-
8512059005 ClampClamp
-
9420867481 FlangeFlange
-
10414972600 Air filterAir filter
-
11572077900 Intake coverIntake cover
-
12M40901 Hex. screwHex. screw
-
13M5346755 CollarCollar
-
14414379300 Cable clipCable clip
-
15M20008 WasherWasher
