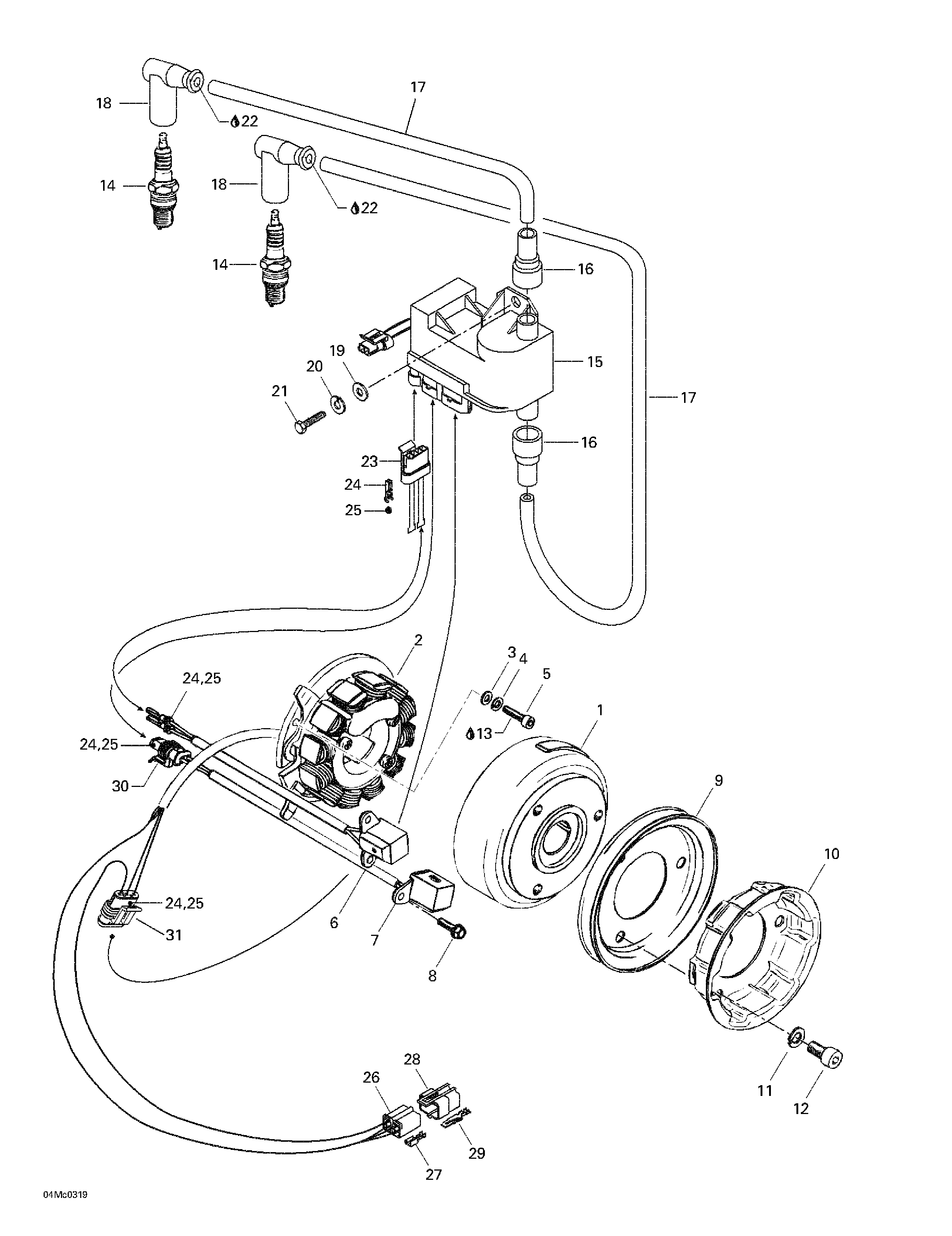

03- Magneto для BRP Ski-Doo Skandic LT 440F - 2003
-
№АртикулНазвание
-
1420887654 Magneto ducati 12V 240W. Includes 1 - 2.Magneto ducati 12V 240W. Includes 1 - 2.
-
1420996824 Magneto flywheelMagneto flywheel
-
2420886603 Stator plate ass'yStator plate ass'y
-
3420927571 Washer 5.3 mmWasher 5.3 mm
-
4420945750 Lock washer 5 mmLock washer 5 mm
-
5420840515 Allen screw M5 x 18Allen screw M5 x 18
-
6420966548 Pick-up ass'y (For Reverse)Pick-up ass'y (For Reverse)
-
7420966546 Pick-up ass'yPick-up ass'y
-
8420941925 Taptite screw M5 x 16Taptite screw M5 x 16
-
9420980486 V-belt pulleyV-belt pulley
-
10420852414 Starting pulleyStarting pulley
-
11420845311 Lock washer 8 mmLock washer 8 mm
-
12420841521 Allen screw M8 x 12Allen screw M8 x 12
-
13293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
14414961100 Spark plug NGK BR9 ESSpark plug NGK BR9 ES
-
15M42507 Electronic boxElectronic box
-
16515174900 Protection capProtection cap
-
17278001268 Ignition cableIgnition cable
-
18278000237 Spark plug protectorSpark plug protector
-
19234061410 Washer 6 mmWasher 6 mm
-
20234161471 Lock washer 6 mmLock washer 6 mm
-
21M40332 ScrewScrew
-
22219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
23409209700 Female terminal housing (4 circuits)Female terminal housing (4 circuits)
-
24278001014 Female terminalFemale terminal
-
25278001013 Wire sealWire seal
-
26409204900 Female terminal housingFemale terminal housing
-
27515175253 Female terminalFemale terminal
-
28409209300 Male terminal housing (4 circuits)Male terminal housing (4 circuits)
-
29409210000 Male terminalMale terminal
-
30409209500 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
31409209600 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
