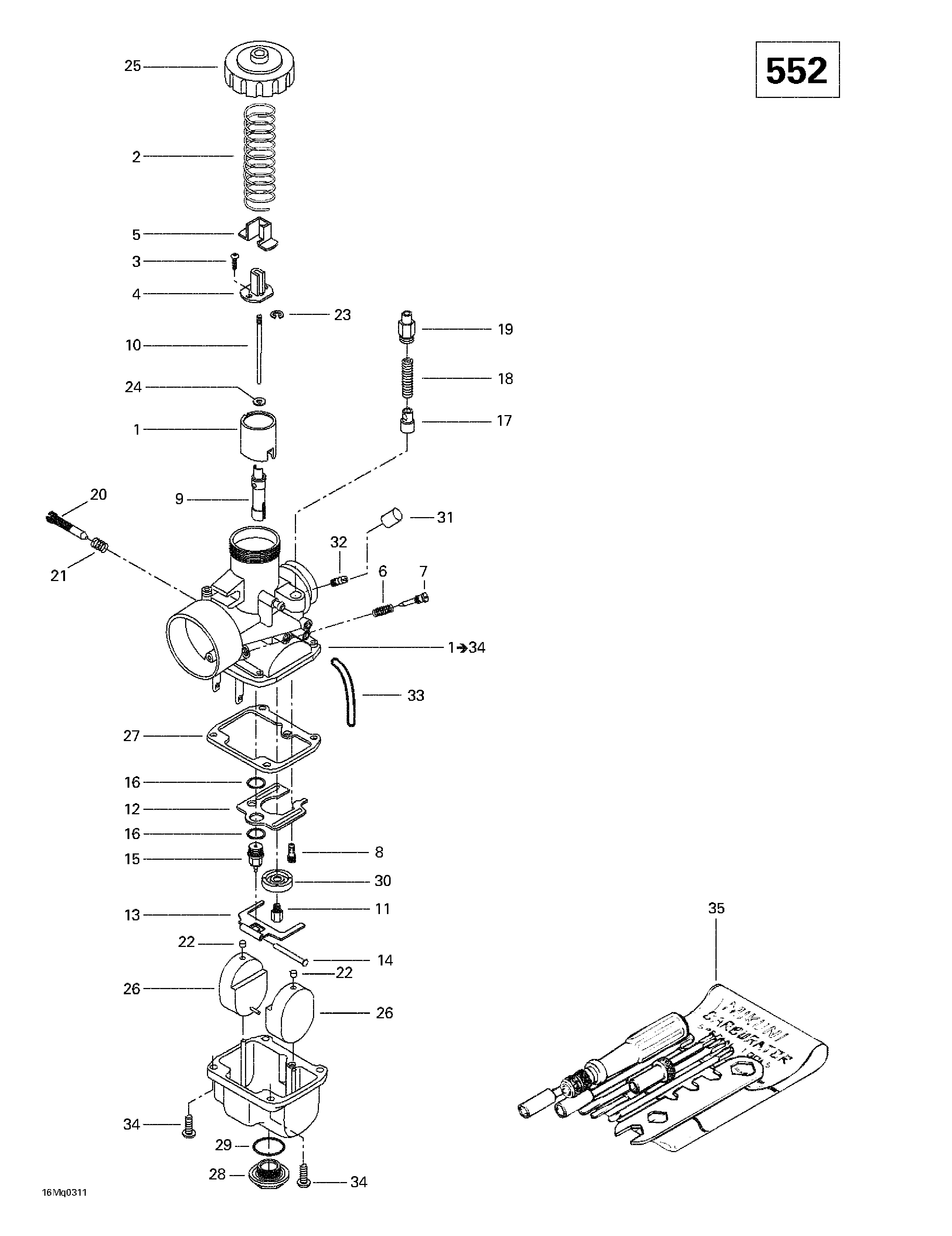

02- Carburetors (552) для BRP Ski-Doo Grand Touring 380 F/550 F - 2003
-
№АртикулНазвание
-
1403138727 Carburetor VM 34-591. Includes 1 - 34. 550 F.Carburetor VM 34-591. Includes 1 - 34. 550 F.
-
1404128400 Piston Valve CA 2.5. 550 F.Piston Valve CA 2.5. 550 F.
-
2404154800 Spring. 550 F.Spring. 550 F.
-
3404121300 Screw with Washer. 550 F.Screw with Washer. 550 F.
-
4404161948 Packing. 550 F.Packing. 550 F.
-
5404122100 Cover. 550 F.Cover. 550 F.
-
6404139800 Spring (Air Screw). 550 F.Spring (Air Screw). 550 F.
-
7404149000 Air Screw. 550 F.Air Screw. 550 F.
-
8404109100 Pilot Jet PJ 40. 550 F.Pilot Jet PJ 40. 550 F.
-
9404120800 Needle Jet NJ P-8 (159). 550 F.Needle Jet NJ P-8 (159). 550 F.
-
10404162032 Jet Needle JN J8-6BCY40. 550 F.Jet Needle JN J8-6BCY40. 550 F.
-
11404100300 Main Jet MJ 250. 550 F.Main Jet MJ 250. 550 F.
-
12404109600 Baffle. 550 F.Baffle. 550 F.
-
13404107600 Float Lever. 550 F.Float Lever. 550 F.
-
14404103300 Lever Pin. 550 F.Lever Pin. 550 F.
-
15404147500 Needle Valve 1.2. 550 F.Needle Valve 1.2. 550 F.
-
16404101600 Seat Washer. 550 F.Seat Washer. 550 F.
-
17404161986 Plunger Ass'y. 550 F.Plunger Ass'y. 550 F.
-
18404127400 Spring. 550 F.Spring. 550 F.
-
19404161100 Guide. 550 F.Guide. 550 F.
-
20404125200 Throttle Screw. 550 F.Throttle Screw. 550 F.
-
21404101700 Spring (Throttle Screw). 550 F.Spring (Throttle Screw). 550 F.
-
22404105800 Cap. 550 F.Cap. 550 F.
-
23404152400 E-Ring. 550 F.E-Ring. 550 F.
-
24404117000 Packing. 550 F.Packing. 550 F.
-
25404103700 Cover. 550 F.Cover. 550 F.
-
26404107100 Float. 550 F.Float. 550 F.
-
27404104200 Gasket. 550 F.Gasket. 550 F.
-
28404107400 Drain Plug Screw. 550 F.Drain Plug Screw. 550 F.
-
29404107300 O-Ring. 550 F.O-Ring. 550 F.
-
30404110900 Baffle Ring. 550 F.Baffle Ring. 550 F.
-
31404156600 Cap. 550 F.Cap. 550 F.
-
32404153400 Nipple. 550 F.Nipple. 550 F.
-
33404161851 Air Vent Tube. 550 F.Air Vent Tube. 550 F.
-
34404102000 Screw and Lock Washer. 550 F.Screw and Lock Washer. 550 F.
-
35404112000 Tool Kit. 550 F.Tool Kit. 550 F.
