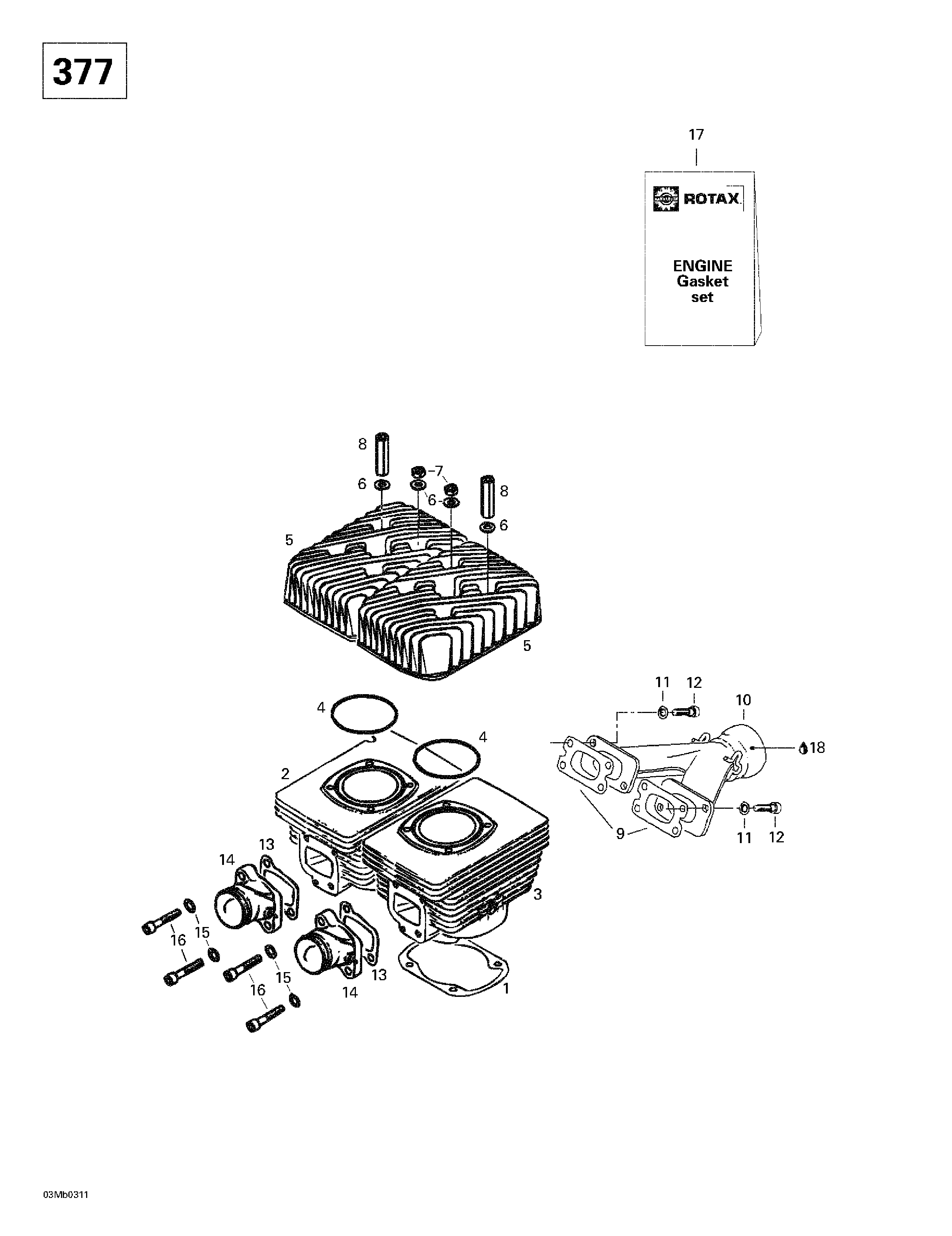

01- Cylinder, Intake, Exhaust Manifold (377) для BRP Ski-Doo Grand Touring 380 F/550 F - 2003

-
№АртикулНазвание
-
1420931781 Gasket 0.4 mm. 380 F.Gasket 0.4 mm. 380 F.
-
2420923403 Cylinder with Sleeve, PTO. 380 F.Cylinder with Sleeve, PTO. 380 F.
-
3420923408 Cylinder with Sleeve, MAG. 380 F.Cylinder with Sleeve, MAG. 380 F.
-
4420931380 O-Ring. 380 F.O-Ring. 380 F.
-
5420613630 Cylinder Head. 380 F.Cylinder Head. 380 F.
-
6420250311 Washer 8.4 mm. 380 F.Washer 8.4 mm. 380 F.
-
7232081414 Nut M8. 380 F.Nut M8. 380 F.
-
8420842385 Distance Nut M8 x 42. 380 F.Distance Nut M8 x 42. 380 F.
-
9420850114 Gasket 1.0 mm. 380 F.Gasket 1.0 mm. 380 F.
-
10420878938 Exhaust Manifold. 380 F.Exhaust Manifold. 380 F.
-
11234181401 Lock Washer 8 mm. 380 F.Lock Washer 8 mm. 380 F.
-
12205083044 Socket Head Screw M8 x 30. 380 F.Socket Head Screw M8 x 30. 380 F.
-
13420831867 Intake Gasket 1.0 mm. 380 F.Intake Gasket 1.0 mm. 380 F.
-
14420867408 Intake Socket Ass'y. 380 F.Intake Socket Ass'y. 380 F.
-
15420945752 Lock Washer 8 mm. 380 F.Lock Washer 8 mm. 380 F.
-
16420841591 Socket Head Screw. 380 F.Socket Head Screw. 380 F.
-
17420994232 Engine Gasket Set. 380 F.Engine Gasket Set. 380 F.
-
18293800090 Sealant, Loctite, 80 ml. 380 F.Sealant, Loctite, 80 ml. 380 F.
