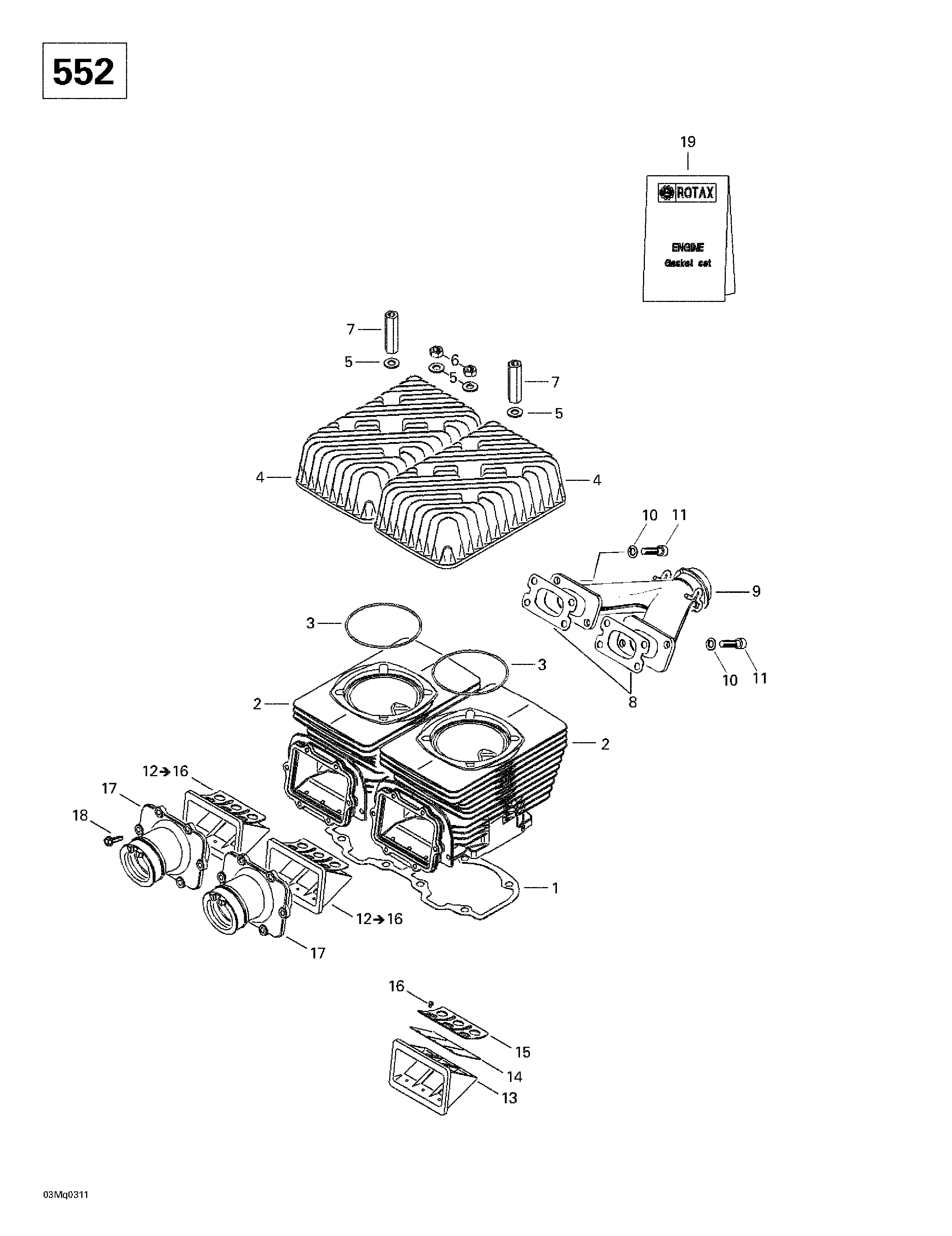

01- Cylinder, Intake, Exhaust Manifold (552) для BRP Ski-Doo Grand Touring 380 F/550 F - 2003

№

Артикул

Название
1

420950910 Gasket 0.3 mm. 550 F.

Gasket 0.3 mm. 550 F.

5 150 ₽
420950911 Gasket 0.4 mm. 550 F.

Gasket 0.4 mm. 550 F.

6 020 ₽
420950912 Gasket 0.6 mm. 550 F.

Gasket 0.6 mm. 550 F.

6 020 ₽
2

420923975 Cylinder With Sleeve. 550 F.

Cylinder With Sleeve. 550 F.

0 ₽
3

293300026 O-Ring. 550 F.

O-Ring. 550 F.

4 480 ₽
4

420923595 Cylinder Head. 550 F.

Cylinder Head. 550 F.

23 810 ₽
5

420250311 Washer 8.4 mm. 550 F.

Washer 8.4 mm. 550 F.

110 ₽
6

232081414 Hex. Nut M8. 550 F.

Hex. Nut M8. 550 F.

270 ₽
7

420842203 Distance Nut M8. 550 F.

Distance Nut M8. 550 F.

710 ₽
8

420831849 Gasket 1 mm. 550 F.

Gasket 1 mm. 550 F.

3 340 ₽
9

420673065 Exhaust Manifold. 550 F.

Exhaust Manifold. 550 F.

105 700 ₽
10

234181401 Lock Washer 8 mm. 550 F.

Lock Washer 8 mm. 550 F.

340 ₽
11

205083044 Socket Head Screw M8 x 30. 550 F.

Socket Head Screw M8 x 30. 550 F.

390 ₽
12

420924519 Reed Valve Ass'y. Includes 12 - 16. 550 F.

Reed Valve Ass'y. Includes 12 - 16. 550 F.

56 280 ₽
14

420924532 Reed Pedal. 550 F.

Reed Pedal. 550 F.

14 560 ₽
15

420924539 Reed Pedal Stop. 550 F.

Reed Pedal Stop. 550 F.

3 820 ₽
16

420941215 Oval Head Screw M3 x 25. 550 F.

Oval Head Screw M3 x 25. 550 F.

160 ₽
17

420867100 Carburetor Socket. 550 F.

Carburetor Socket. 550 F.

7 030 ₽
18

420941925 Tapping Screw M5 x 16. 550 F.

Tapping Screw M5 x 16. 550 F.

180 ₽
19

420889910 Gasket Set. 550 F.

Gasket Set. 550 F.

0 ₽
