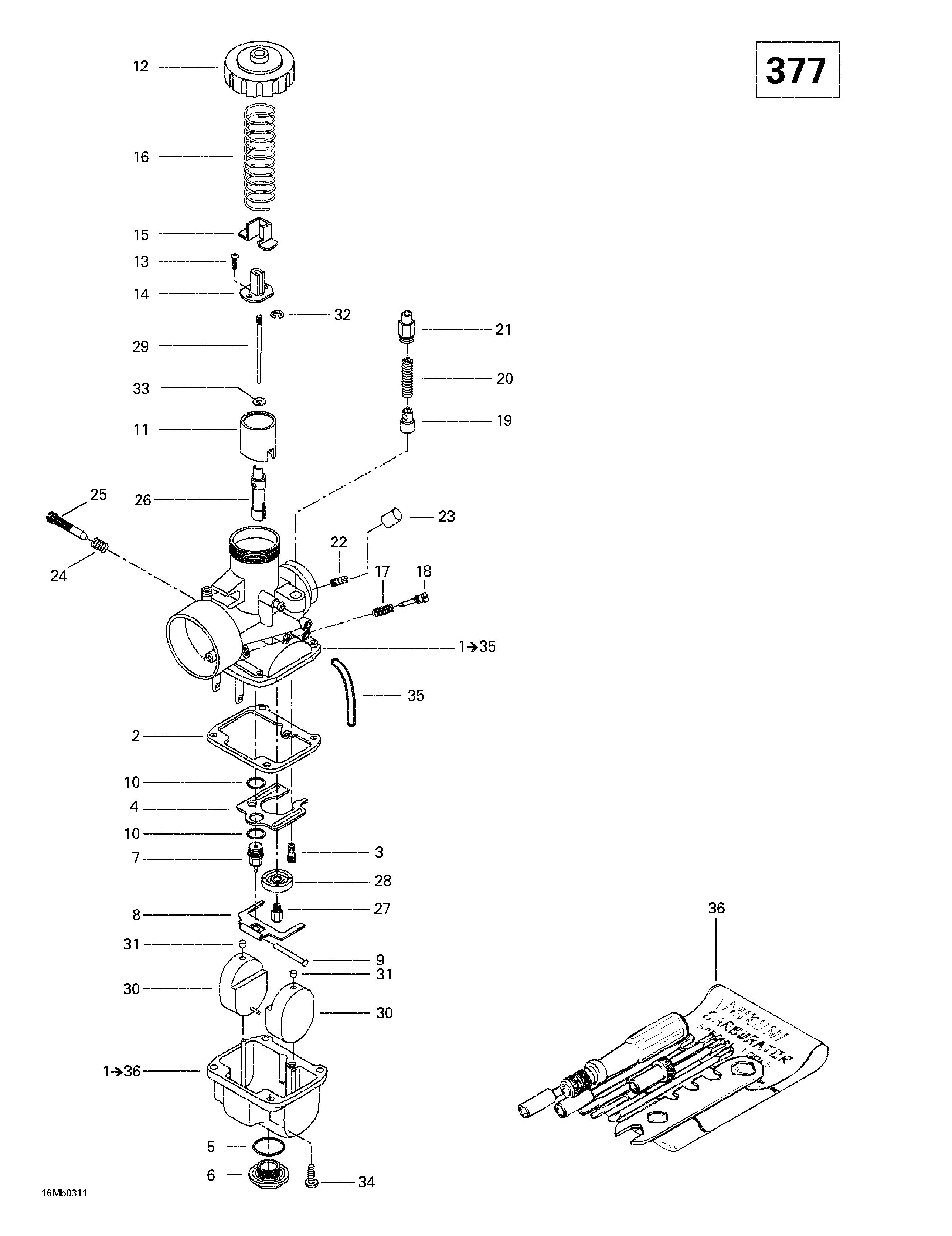

02- Carburetors (377) для BRP Ski-Doo Grand Touring 380 F/550 F - 2003

  • №
    Артикул
    Название
  • 1
    403138754 Carburetor VM 30-205. Includes 1 - 35. 380 F.
    Carburetor VM 30-205. Includes 1 - 35. 380 F.
  • 2
    404104200 Gasket. 380 F.
    Gasket. 380 F.
  • 3
    404109100 Pilot Jet PJ 40. 380 F.
    Pilot Jet PJ 40. 380 F.
  • 4
    404109600 Baffle. 380 F.
    Baffle. 380 F.
  • 5
    404107300 O-Ring. 380 F.
    O-Ring. 380 F.
  • 6
    404107400 Drain Plug Screw. 380 F.
    Drain Plug Screw. 380 F.
  • 7
    404147500 Needle Valve 1.5. 380 F.
    Needle Valve 1.5. 380 F.
  • 8
    404107600 Float Lever. 380 F.
    Float Lever. 380 F.
  • 9
    404103300 Lever Pin. 380 F.
    Lever Pin. 380 F.
  • 10
    404101600 Seat Washer. 380 F.
    Seat Washer. 380 F.
  • 11
    404128600 Throttle Valve CA 2.0. 380 F.
    Throttle Valve CA 2.0. 380 F.
  • 12
    404103700 Cover. 380 F.
    Cover. 380 F.
  • 13
    404121300 Screw with Washer. 380 F.
    Screw with Washer. 380 F.
  • 14
    404161948 Packing. 380 F.
    Packing. 380 F.
  • 15
    404122100 Cover. 380 F.
    Cover. 380 F.
  • 16
    404154800 Spring. 380 F.
    Spring. 380 F.
  • 17
    404101800 Spring (Idle Adjusting Screw). 380 F.
    Spring (Idle Adjusting Screw). 380 F.
  • 18
    404102300 Air Screw. 380 F.
    Air Screw. 380 F.
  • 19
    404161986 Plunger Ass'y. 380 F.
    Plunger Ass'y. 380 F.
  • 20
    404127400 Spring. 380 F.
    Spring. 380 F.
  • 21
    404161100 Holder Guide. 380 F.
    Holder Guide. 380 F.
  • 22
    404153400 Nipple. 380 F.
    Nipple. 380 F.
  • 23
    404156600 Cap. 380 F.
    Cap. 380 F.
  • 24
    404101700 Spring (Idle Speed Screw). 380 F.
    Spring (Idle Speed Screw). 380 F.
  • 25
    404109700 Idle Speed Screw. 380 F.
    Idle Speed Screw. 380 F.
  • 27
    404119500 Main Jet MJ 185. 380 F.
    Main Jet MJ 185. 380 F.
  • 28
    404110900 Baffle Ring. 380 F.
    Baffle Ring. 380 F.
  • 29
    404161988 Needle 6-CDY-01. 380 F.
    Needle 6-CDY-01. 380 F.
  • 30
    404107100 Float. 380 F.
    Float. 380 F.
  • 31
    404105800 Cap. 380 F.
    Cap. 380 F.
  • 32
    404152400 E-Ring. 380 F.
    E-Ring. 380 F.
  • 33
    404117000 Packing. 380 F.
    Packing. 380 F.
  • 34
    404102000 Screw and Lock Washer. 380 F.
    Screw and Lock Washer. 380 F.
  • 35
    404161851 Air Vent Tube. 380 F.
    Air Vent Tube. 380 F.
  • 36
    404112000 Tool Kit. 380 F.
    Tool Kit. 380 F.
