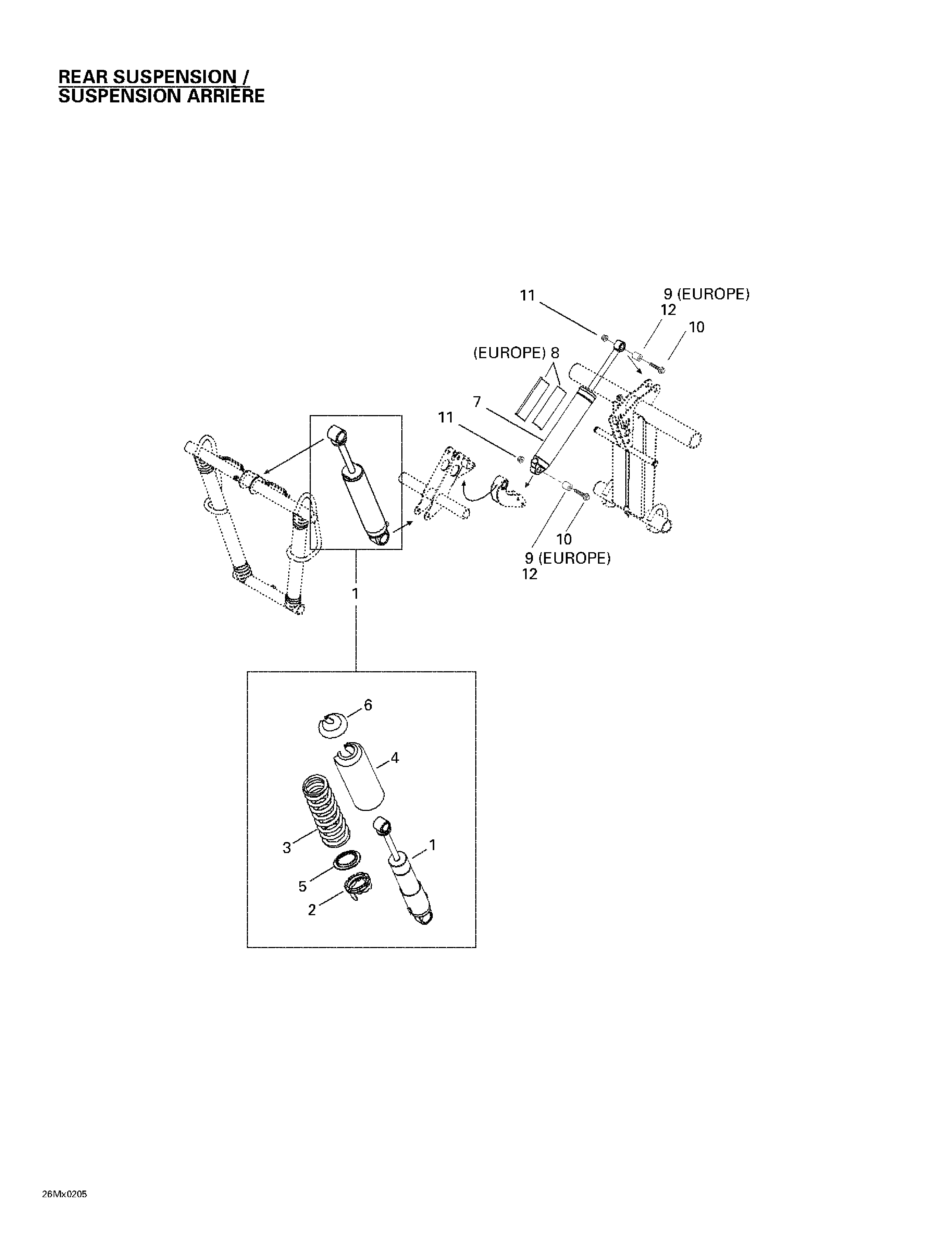

08- Rear Shocks для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002
-
№АртикулНазвание
-
1503189554 Center Shock. Grand Touring 500. Grand Touring 600. Grand Touring 700.Center Shock. Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
503189519 Center Shock (SE, GS). Grand Touring 600. Grand Touring 700. Grand Touring 800.Center Shock (SE, GS). Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
2503183700 Cam. Grand Touring 500. Grand Touring 600. Grand Touring 700.Cam. Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
505070150 Cam. Grand Touring 600. Grand Touring 700. Grand Touring 800.Cam. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
3503189659 Spring. Grand Touring 500. Grand Touring 600. Grand Touring 700.Spring. Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
503189325 Spring (SE, GS). Grand Touring 600. Grand Touring 700. Grand Touring 800.Spring (SE, GS). Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
4503188930 ProtectorProtector
-
5503187500 Spring Guide. Grand Touring 500. Grand Touring 600. Grand Touring 700.Spring Guide. Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
517184300 Spring Guide (SE, GS). Grand Touring 600. Grand Touring 700. Grand Touring 800.Spring Guide (SE, GS). Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
6503140600 Spring StopperSpring Stopper
-
7503189426 Rear Shock MCG. Grand Touring 500. Grand Touring 600. Grand Touring 700.Rear Shock MCG. Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
503189460 Rear Shock MPS. Grand Touring 600. Grand Touring 700. Grand Touring 800.Rear Shock MPS. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
7860306200 HPG Shock Kit (Europe). Includes 7 - 9. Grand Touring 500.HPG Shock Kit (Europe). Includes 7 - 9. Grand Touring 500.
-
8516000182 HPG Decal (Europe). Grand Touring 500.HPG Decal (Europe). Grand Touring 500.
-
9414936000 Cushion (Europe). Grand Touring 500.Cushion (Europe). Grand Touring 500.
-
10207684044 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
11233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
12414936000 CushionCushion
