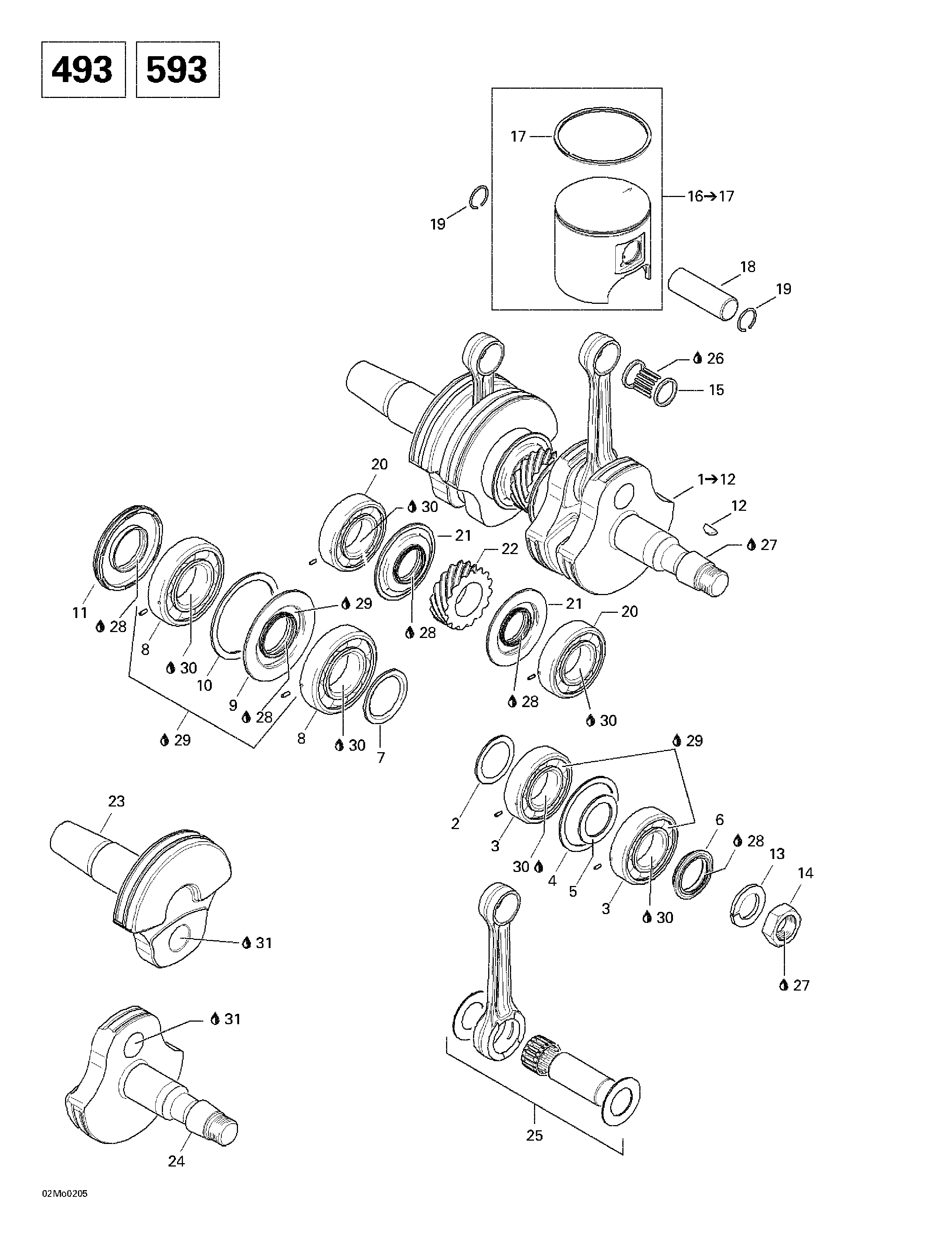

01- Crankshaft And Pistons (493) для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002

  • №
    Артикул
    Название
  • 1
    420888461 Crankshaft Ass'y. Includes 1 - 12. Grand Touring 500.
    Crankshaft Ass'y. Includes 1 - 12. Grand Touring 500.
  • 420888751 Crankshaft Ass'y. Grand Touring 600.
    Crankshaft Ass'y. Grand Touring 600.
  • 2
    420827445 Distance Ring. Grand Touring 500. Grand Touring 600.
    Distance Ring. Grand Touring 500. Grand Touring 600.
  • 3
    420832590 Ball Bearing 6206. Grand Touring 500. Grand Touring 600.
    Ball Bearing 6206. Grand Touring 500. Grand Touring 600.
  • 4
    420827050 Retaining Disk. Grand Touring 500. Grand Touring 600.
    Retaining Disk. Grand Touring 500. Grand Touring 600.
  • 5
    420427684 Adjustment Washer. Grand Touring 500. Grand Touring 600.
    Adjustment Washer. Grand Touring 500. Grand Touring 600.
  • 6
    420931790 Oil Seal. Grand Touring 500. Grand Touring 600.
    Oil Seal. Grand Touring 500. Grand Touring 600.
  • 7
    420827760 Distance Ring. Grand Touring 500. Grand Touring 600.
    Distance Ring. Grand Touring 500. Grand Touring 600.
  • 8
    420832575 Ball Bearing 6207. Grand Touring 500. Grand Touring 600.
    Ball Bearing 6207. Grand Touring 500. Grand Touring 600.
  • 9
    420931455 Oil Seal. Grand Touring 500. Grand Touring 600.
    Oil Seal. Grand Touring 500. Grand Touring 600.
  • 10
    420927710 Retaining Disk. Grand Touring 500. Grand Touring 600.
    Retaining Disk. Grand Touring 500. Grand Touring 600.
  • 11
    290831952 Oil Seal. Grand Touring 500. Grand Touring 600.
    Oil Seal. Grand Touring 500. Grand Touring 600.
  • 12
    420246015 Woodfuff Key. Grand Touring 500. Grand Touring 600.
    Woodfuff Key. Grand Touring 500. Grand Touring 600.
  • 13
    420945759 Lock Washer 22 mm. Grand Touring 500. Grand Touring 600.
    Lock Washer 22 mm. Grand Touring 500. Grand Touring 600.
  • 14
    420842230 Nut M22. Grand Touring 500. Grand Touring 600.
    Nut M22. Grand Touring 500. Grand Touring 600.
  • 15
    420832320 Needle Bearing. Grand Touring 500.
    Needle Bearing. Grand Touring 500.
  • 420832425 Needle Bearing. Grand Touring 600.
    Needle Bearing. Grand Touring 600.
  • 16
    420888445 Piston Ass'y (1 Ring 69.40 mm). Includes 16 - 17. Grand Touring 500.
    Piston Ass'y (1 Ring 69.40 mm). Includes 16 - 17. Grand Touring 500.
  • 420889170 Piston Ass'y (1 Ring 75.88 mm). Grand Touring 600.
    Piston Ass'y (1 Ring 75.88 mm). Grand Touring 600.
  • 420888446 Oversize Piston Ass'y (1 Ring 69.65 mm). Grand Touring 500.
    Oversize Piston Ass'y (1 Ring 69.65 mm). Grand Touring 500.
  • 420889171 Oversize Piston Ass'y (1 Ring 76.13 mm). Grand Touring 600.
    Oversize Piston Ass'y (1 Ring 76.13 mm). Grand Touring 600.
  • 17
    420815043 Semi-Trapez Ring 69.50 mm. Grand Touring 500.
    Semi-Trapez Ring 69.50 mm. Grand Touring 500.
  • 420815155 Semi-Trapez Ring 76.00 mm. Grand Touring 600.
    Semi-Trapez Ring 76.00 mm. Grand Touring 600.
  • 420815044 Oversize Semi-Trapez Ring 69.75 mm. Grand Touring 500.
    Oversize Semi-Trapez Ring 69.75 mm. Grand Touring 500.
  • 420815156 Oversize Semi-Trapez Ring 76.25 mm. Grand Touring 600.
    Oversize Semi-Trapez Ring 76.25 mm. Grand Touring 600.
  • 18
    420916186 Gudgeon Pin. Grand Touring 500.
    Gudgeon Pin. Grand Touring 500.
  • 420916410 Gudgeon Pin. Grand Touring 600.
    Gudgeon Pin. Grand Touring 600.
  • 19
    420945735 Piston Circlip. Grand Touring 500.
    Piston Circlip. Grand Touring 500.
  • 420845106 Piston Circlip. Grand Touring 600.
    Piston Circlip. Grand Touring 600.
  • 20
    420832590 Ball Bearing 6206. Grand Touring 500. Grand Touring 600.
    Ball Bearing 6206. Grand Touring 500. Grand Touring 600.
  • 21
    420931940 Oil Seal. Grand Touring 500. Grand Touring 600.
    Oil Seal. Grand Touring 500. Grand Touring 600.
  • 22
    420834350 Central Gear 15 Teeth. Grand Touring 500. Grand Touring 600.
    Central Gear 15 Teeth. Grand Touring 500. Grand Touring 600.
  • 23
    420818664 Crankshaft (PTO side). Grand Touring 500. Grand Touring 600.
    Crankshaft (PTO side). Grand Touring 500. Grand Touring 600.
  • 24
    420818693 Crankshaft (MAG side). Grand Touring 500. Grand Touring 600.
    Crankshaft (MAG side). Grand Touring 500. Grand Touring 600.
  • 25
    420888463 Rod Repair Kit (MAG side). Grand Touring 500.
    Rod Repair Kit (MAG side). Grand Touring 500.
  • 420888753 Rod Repair Kit (MAG side). Grand Touring 600.
    Rod Repair Kit (MAG side). Grand Touring 600.
  • 420888464 Rod Repair Kit (PTO side). Grand Touring 500.
    Rod Repair Kit (PTO side). Grand Touring 500.
  • 420888754 Rod Repair Kit (PTO side). Grand Touring 600.
    Rod Repair Kit (PTO side). Grand Touring 600.
  • 26
    413802900 Injection Oil (12 x 1 Liter). Grand Touring 500. Grand Touring 600.
    Injection Oil (12 x 1 Liter). Grand Touring 500. Grand Touring 600.
  • 27
    293800060 Loctite 243, 10 ml. Grand Touring 500. Grand Touring 600.
    Loctite 243, 10 ml. Grand Touring 500. Grand Touring 600.
  • 28
    420899271 Petamo Grease, GHY133N, 400 g. Grand Touring 500. Grand Touring 600.
    Petamo Grease, GHY133N, 400 g. Grand Touring 500. Grand Touring 600.
  • 29
    293550021 Isoflex Grease, 45 g. Grand Touring 500. Grand Touring 600.
    Isoflex Grease, 45 g. Grand Touring 500. Grand Touring 600.
  • 30
    293800070 Loctite 767, Antiseize Lubricant, 454 g. Grand Touring 500. Grand Touring 600.
    Loctite 767, Antiseize Lubricant, 454 g. Grand Touring 500. Grand Touring 600.
  • 31
    413711400 Loctite 648, 10 ml. Grand Touring 500. Grand Touring 600.
    Loctite 648, 10 ml. Grand Touring 500. Grand Touring 600.
