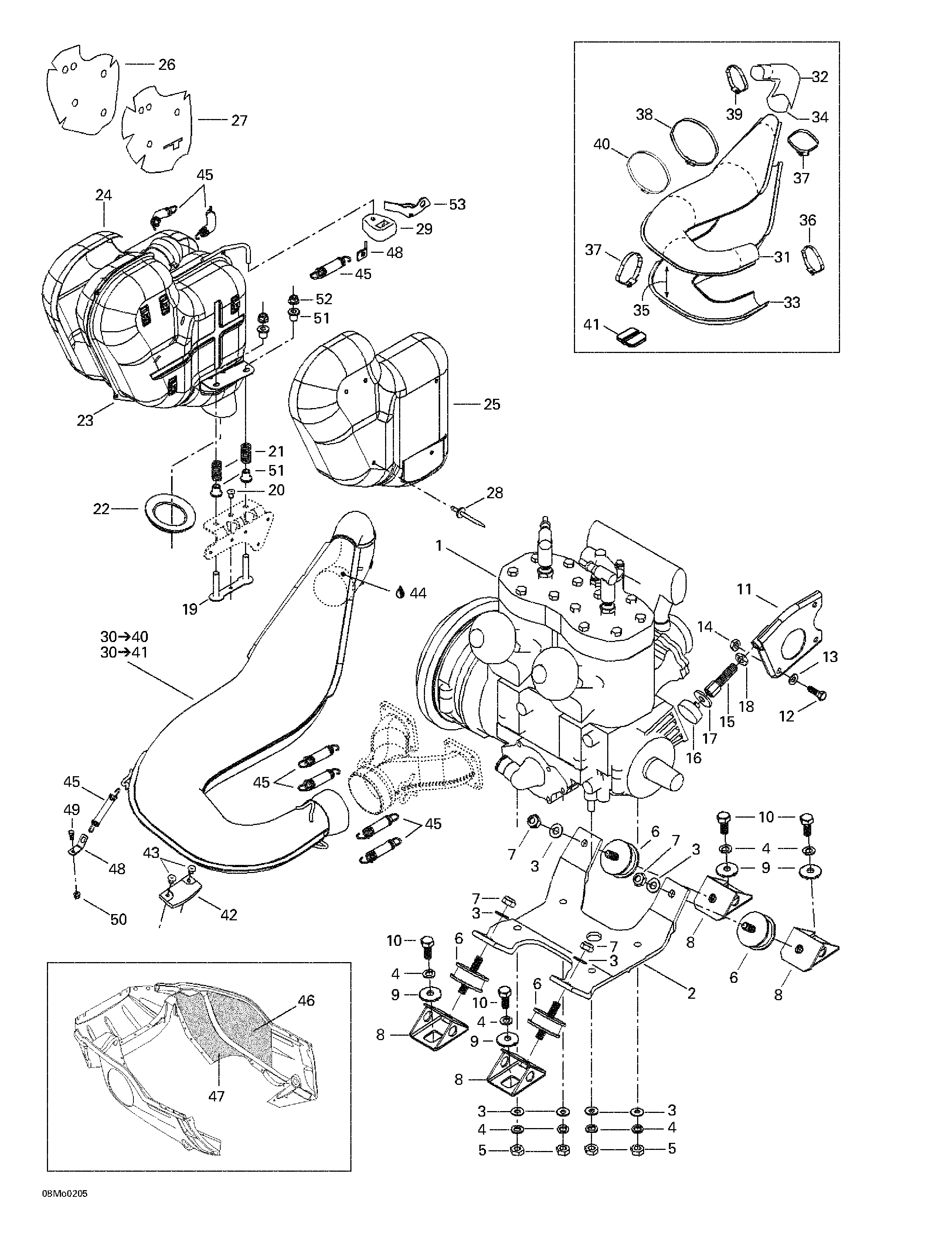

01- Engine Support And Muffler для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002

№

Артикул

Название
1

400409426 > Engine (RER). Grand Touring 500.

> Engine (RER). Grand Touring 500.

0 ₽
400509731 > Engine (RER). Grand Touring 600.

> Engine (RER). Grand Touring 600.

0 ₽
400604024 > Engine (RER). Grand Touring 700.

> Engine (RER). Grand Touring 700.

0 ₽
400702610 > Engine (RER). Grand Touring 800.

> Engine (RER). Grand Touring 800.

0 ₽
2

512059488 Engine Support. Grand Touring 500. Grand Touring 600. Grand Touring 700.

Engine Support. Grand Touring 500. Grand Touring 600. Grand Touring 700.

11 400 ₽
512059173 Engine Support. Grand Touring 800.

Engine Support. Grand Touring 800.

9 250 ₽
3

234001410 Flat Washer 10 mm

Flat Washer 10 mm

420 ₽
4

234100602 Lock Spring Washer 10 mm

Lock Spring Washer 10 mm

130 ₽
5

232006414 Nut M10

Nut M10

460 ₽
6

570128700 Rubber Mount

Rubber Mount

18 870 ₽
7

233601416 Elastic Locking Nut M10

Elastic Locking Nut M10

610 ₽
8

512050900 Engine Support

Engine Support

860 ₽
9

512056700 Lock Washer

Lock Washer

3 780 ₽
10

207102544 Hex. Screw M10 x 25

Hex. Screw M10 x 25

120 ₽
11

512058500 Support Plate

Support Plate

2 110 ₽
12

207182044 Hex. Screw M8 x 20

Hex. Screw M8 x 20

70 ₽
13

234081410 Flat Washer 8 mm

Flat Washer 8 mm

310 ₽
14

232581414 Elastic Stop Nut M8

Elastic Stop Nut M8

210 ₽
15

512058800 Stopper Screw

Stopper Screw

1 120 ₽
16

512059056 Stopper

Stopper

1 630 ₽
17

512059057 Washer

Washer

130 ₽
18

732610019 R.H. Hex. Jam Nut M12

R.H. Hex. Jam Nut M12

280 ₽
19

514053263 Attache

Attache

570 ₽
20

390402200 Rivet 3/16''

Rivet 3/16''

120 ₽
21

414913700 Spring

Spring

310 ₽
22

570039000 Exhaust Grommet. Grand Touring 500. Grand Touring 600.

Exhaust Grommet. Grand Touring 500. Grand Touring 600.

6 580 ₽
514053064 Exhaust Grommet. Grand Touring 700. Grand Touring 800.

Exhaust Grommet. Grand Touring 700. Grand Touring 800.

0 ₽
23

514053326 Muffler. Grand Touring 500. Grand Touring 600.

Muffler. Grand Touring 500. Grand Touring 600.

0 ₽
514053322 Muffler. Grand Touring 700.

Muffler. Grand Touring 700.

0 ₽
514053288 Muffler. Grand Touring 800.

Muffler. Grand Touring 800.

0 ₽
24

514053160 R.H. Heat Shield. Grand Touring 500. Grand Touring 600.

R.H. Heat Shield. Grand Touring 500. Grand Touring 600.

0 ₽
514053292 R.H. Heat Shield. Grand Touring 700. Grand Touring 800.

R.H. Heat Shield. Grand Touring 700. Grand Touring 800.

0 ₽
25

514052733 L.H. Heat Shield. Grand Touring 500. Grand Touring 600.

L.H. Heat Shield. Grand Touring 500. Grand Touring 600.

10 ₽
514053293 L.H. Heat Shield. Grand Touring 700. Grand Touring 800.

L.H. Heat Shield. Grand Touring 700. Grand Touring 800.

2 820 ₽
26

514052734 R.H. Insulating Wooll. Grand Touring 500. Grand Touring 600.

R.H. Insulating Wooll. Grand Touring 500. Grand Touring 600.

0 ₽
514053294 R.H. Insulating Wooll. Grand Touring 700. Grand Touring 800.

R.H. Insulating Wooll. Grand Touring 700. Grand Touring 800.

0 ₽
27

514052844 L.H. Insulating Wooll. Grand Touring 500. Grand Touring 600.

L.H. Insulating Wooll. Grand Touring 500. Grand Touring 600.

800 ₽
514053295 L.H. Insulating Wooll. Grand Touring 700. Grand Touring 800.

L.H. Insulating Wooll. Grand Touring 700. Grand Touring 800.

800 ₽
28

390910000 Rivet 3/16''

Rivet 3/16''

210 ₽
29

514052704 Rubber Bumper

Rubber Bumper

1 330 ₽
30

514053316 Tuned Pipe Ass'y. Includes 30 - 40. Grand Touring 500.

Tuned Pipe Ass'y. Includes 30 - 40. Grand Touring 500.

0 ₽
30

514053397 Tuned Pipe. Grand Touring 500.

Tuned Pipe. Grand Touring 500.

0 ₽
30

514053328 Tuned Pipe Ass'y. Includes 30 - 41. Grand Touring 600.

Tuned Pipe Ass'y. Includes 30 - 41. Grand Touring 600.

0 ₽
30

514053336 Tuned Pipe Ass'y. Includes 30 - 40. Grand Touring 700. Grand Touring 800.

Tuned Pipe Ass'y. Includes 30 - 40. Grand Touring 700. Grand Touring 800.

0 ₽
31

514053167 Upper Envelope. Grand Touring 500.

Upper Envelope. Grand Touring 500.

3 860 ₽
514053192 Upper Envelope. Grand Touring 600. Grand Touring 700. Grand Touring 800.

Upper Envelope. Grand Touring 600. Grand Touring 700. Grand Touring 800.

3 860 ₽
32

514053193 Rear Upper Envelope. Grand Touring 600.

Rear Upper Envelope. Grand Touring 600.

1 710 ₽
514053313 Rear Upper Envelope. Grand Touring 700. Grand Touring 800.

Rear Upper Envelope. Grand Touring 700. Grand Touring 800.

1 990 ₽
33

514053360 Lower Envelope. Grand Touring 500.

Lower Envelope. Grand Touring 500.

3 860 ₽
514053367 Lower Envelope. Grand Touring 600. Grand Touring 700. Grand Touring 800.

Lower Envelope. Grand Touring 600. Grand Touring 700. Grand Touring 800.

4 510 ₽
34

514053196 Rear Lower Envelope. Grand Touring 600.

Rear Lower Envelope. Grand Touring 600.

1 710 ₽
514053314 Rear Lower Envelope. Grand Touring 700. Grand Touring 800.

Rear Lower Envelope. Grand Touring 700. Grand Touring 800.

1 990 ₽
35

514052716 Insulating Wool. Grand Touring 500.

Insulating Wool. Grand Touring 500.

800 ₽
514053197 Insulating Wool. Grand Touring 600.

Insulating Wool. Grand Touring 600.

0 ₽
514053315 Insulating Wool. Grand Touring 700. Grand Touring 800.

Insulating Wool. Grand Touring 700. Grand Touring 800.

1 010 ₽
36

514053074 Norma Gear Clamp

Norma Gear Clamp

1 130 ₽
37

514052924 Norma Gear Clamp. Grand Touring 500.

Norma Gear Clamp. Grand Touring 500.

4 520 ₽
514053224 Norma Gear Clamp. Grand Touring 600. Grand Touring 700. Grand Touring 800.

Norma Gear Clamp. Grand Touring 600. Grand Touring 700. Grand Touring 800.

760 ₽
38

514052735 Norma Gear Clamp

Norma Gear Clamp

0 ₽
39

514052859 Norma Gear Clamp. Grand Touring 500.

Norma Gear Clamp. Grand Touring 500.

0 ₽
293650090 Norma Gear Clamp. Grand Touring 600.

Norma Gear Clamp. Grand Touring 600.

410 ₽
514053396 Norma Gear Clamp. Grand Touring 700. Grand Touring 800.

Norma Gear Clamp. Grand Touring 700. Grand Touring 800.

0 ₽
40

514052962 Norma Gear Clamp. Grand Touring 500.

Norma Gear Clamp. Grand Touring 500.

400 ₽
514052902 Norma Gear Clamp. Grand Touring 600.

Norma Gear Clamp. Grand Touring 600.

0 ₽
514052861 Norma Gear Clamp. Grand Touring 700. Grand Touring 800.

Norma Gear Clamp. Grand Touring 700. Grand Touring 800.

790 ₽
41

514053180 Rubber Pad. Grand Touring 600.

Rubber Pad. Grand Touring 600.

570 ₽
42

570044100 Rubber Pad

Rubber Pad

590 ₽
43

390406500 Pop Rivet 3/16''

Pop Rivet 3/16''

320 ₽
44

293800090 Sealant, Loctite 30542, 80 ml

Sealant, Loctite 30542, 80 ml

2 670 ₽
45

415107100 Spring

Spring

1 990 ₽
46

514052718 Reflective Sheet

Reflective Sheet

1 190 ₽
47

514053390 Reflective Sheet

Reflective Sheet

1 470 ₽
48

514053436 Spring Bracket

Spring Bracket

710 ₽
49

207151244 Hex. Screw M5 x 12

Hex. Screw M5 x 12

90 ₽
50

233251414 Elastic Flanged Stop Nut M5

Elastic Flanged Stop Nut M5

100 ₽
51

514053343 Guide

Guide

2 010 ₽
52

233081416 Hex. Flanged Nut M8

Hex. Flanged Nut M8

110 ₽
53

514053442 Support. Grand Touring 700. Grand Touring 800.

Support. Grand Touring 700. Grand Touring 800.

700 ₽
