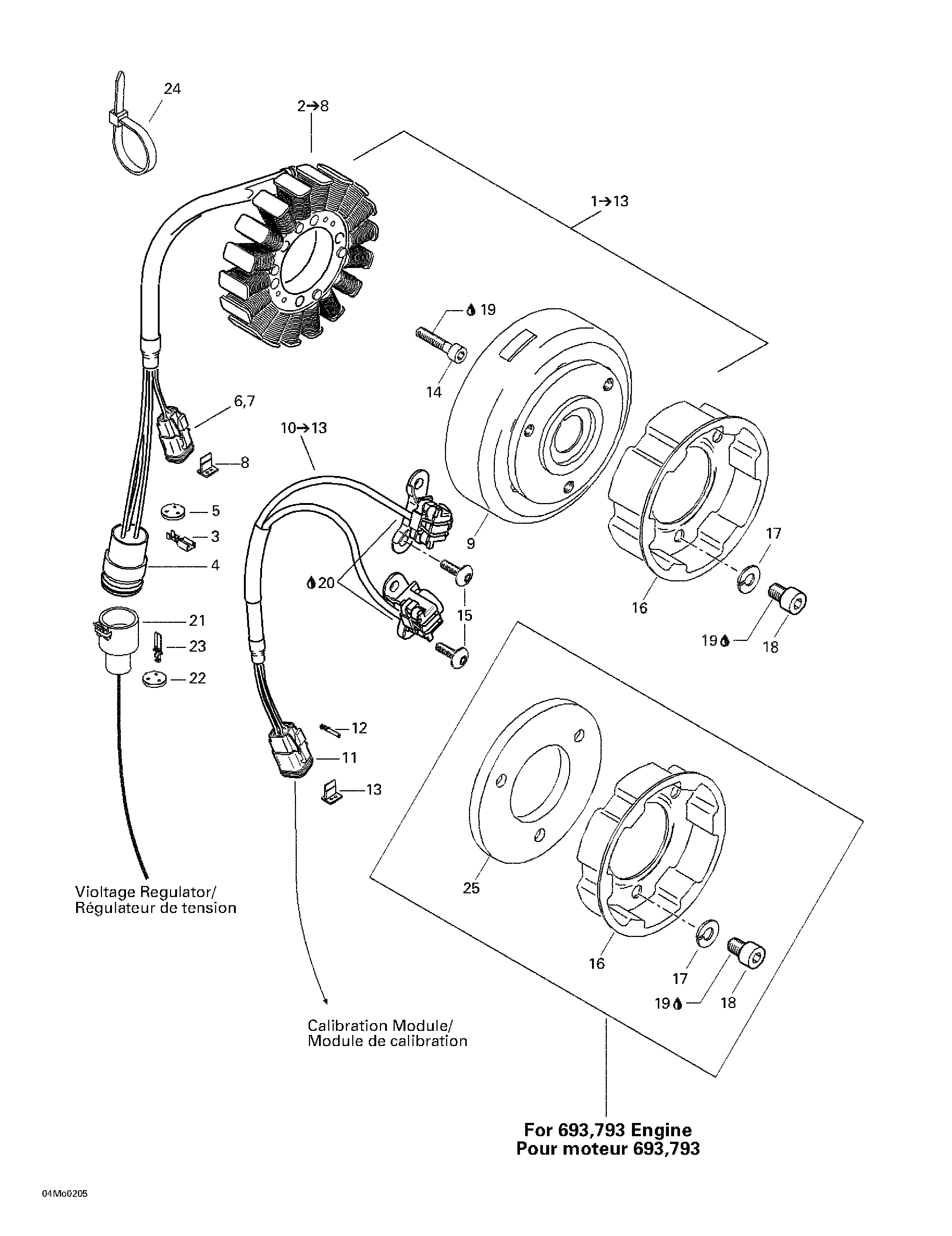

03- Magneto (12V, 290W) для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002

-
№АртикулНазвание
-
2410922941 Stator Plate Ass'y. Includes 2 - 8.Stator Plate Ass'y. Includes 2 - 8.
-
3409011900 Female TerminalFemale Terminal
-
4409208200 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
5409208500 SealSeal
-
6278000632 Female TerminalFemale Terminal
-
7515175670 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
8515175675 Female Lock (2 circuits)Female Lock (2 circuits)
-
9410922942 FlywheelFlywheel
-
10410922940 Pick-up Ass'y. Includes 10 - 13.Pick-up Ass'y. Includes 10 - 13.
-
11515175672 Female Terminal Housing (4 circuits)Female Terminal Housing (4 circuits)
-
12278000632 Female TerminalFemale Terminal
-
13515175677 Female Lock (4 circuits)Female Lock (4 circuits)
-
14205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
15420640321 Screw M5 x 16Screw M5 x 16
-
16420852419 Starting Pulley. Grand Touring 500. Grand Touring 600.Starting Pulley. Grand Touring 500. Grand Touring 600.
-
420852532 Starting Pulley. Grand Touring 700. Grand Touring 800.Starting Pulley. Grand Touring 700. Grand Touring 800.
-
17420945752 Lock Washer 8 mmLock Washer 8 mm
-
18420841520 Socket Head Screw M8 x 12. Grand Touring 500. Grand Touring 600.Socket Head Screw M8 x 12. Grand Touring 500. Grand Touring 600.
-
207182044 Hex. Screw M8 x 20. Grand Touring 700. Grand Touring 800.Hex. Screw M8 x 20. Grand Touring 700. Grand Touring 800.
-
19293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
21409207900 Male Terminal Housing (3 circuits)Male Terminal Housing (3 circuits)
-
22409208500 Seal (3 circuits)Seal (3 circuits)
-
23409011100 Male TerminalMale Terminal
-
24293750001 Tie Rap 94 mmTie Rap 94 mm
-
25420866756 Flywheel. Grand Touring 700. Grand Touring 800.Flywheel. Grand Touring 700. Grand Touring 800.
