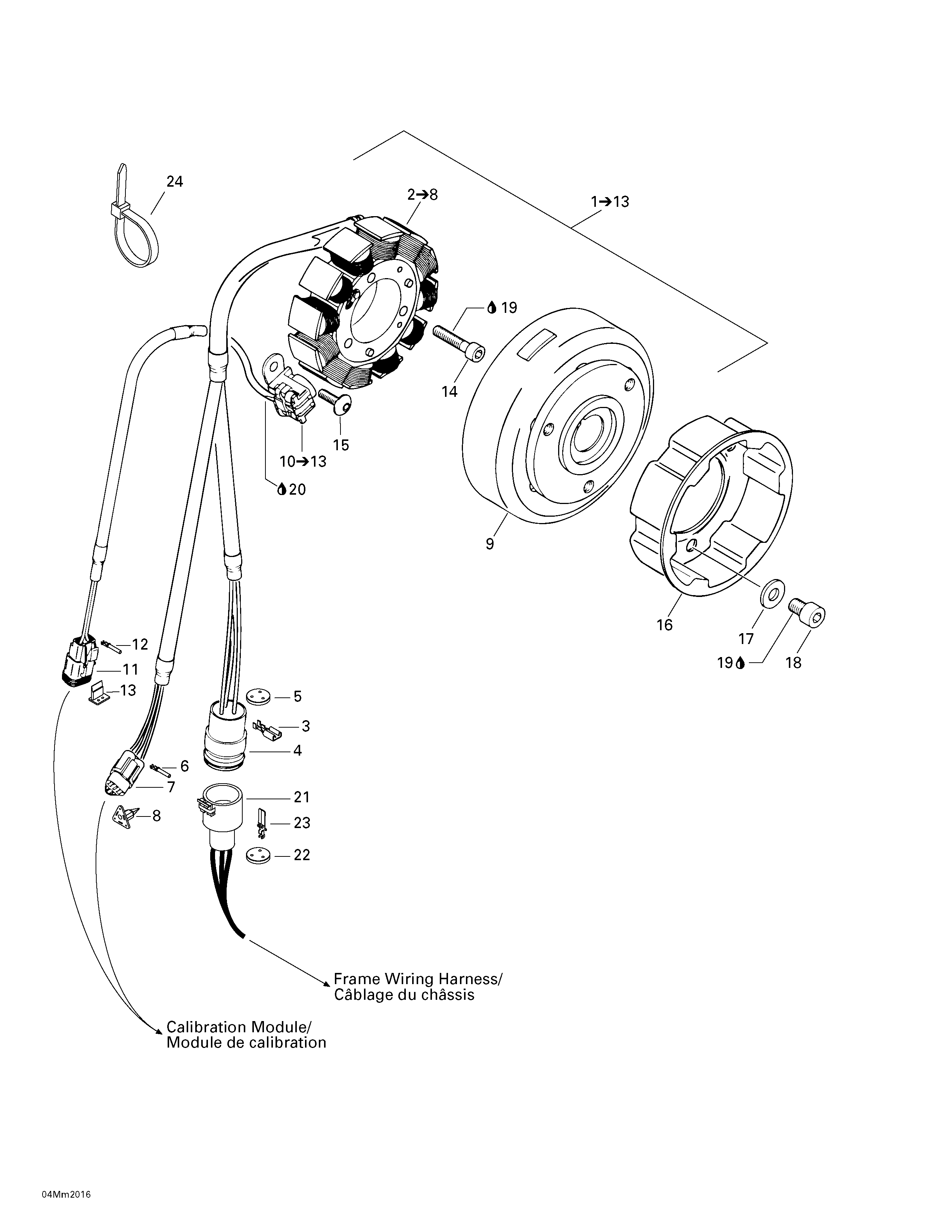

03- Magneto (12V, 290W) для BRP Ski-Doo Formula Z 600/700 - 2000

  • №
    Артикул
    Название
  • 2
    410922923 Stator Plate Ass'y. Includes 2 - 8. Formula Z 600.
    Stator Plate Ass'y. Includes 2 - 8. Formula Z 600.
  • 410922915 Stator Plate Ass'y. Formula Z 700.
    Stator Plate Ass'y. Formula Z 700.
  • 3
    409011900 Female Terminal
    Female Terminal
  • 4
    409208200 Female Terminal Housing (3 circuits)
    Female Terminal Housing (3 circuits)
  • 5
    409208500 Seal
    Seal
  • 6
    278000632 Female Terminal
    Female Terminal
  • 9
    410922933 Flywheel. Formula Z 600.
    Flywheel. Formula Z 600.
  • 410922921 Flywheel. Formula Z 700.
    Flywheel. Formula Z 700.
  • 10
    410922925 Pick-up Ass'y. Includes 10 - 13. Formula Z 600.
    Pick-up Ass'y. Includes 10 - 13. Formula Z 600.
  • 410922922 Pick-up Ass'y. Formula Z 700.
    Pick-up Ass'y. Formula Z 700.
  • 11
    409207300 Female Terminal Housing (2 circuits)
    Female Terminal Housing (2 circuits)
  • 12
    278000632 Female Terminal
    Female Terminal
  • 13
    409207100 Female Lock (2 circuits)
    Female Lock (2 circuits)
  • 14
    205063044 Socket Head Screw M6 x 30
    Socket Head Screw M6 x 30
  • 15
    420640321 Screw M5 x 16
    Screw M5 x 16
  • 16
    420852419 Pulley Starting
    Pulley Starting
  • 17
    420945752 Lock Washer 8 mm
    Lock Washer 8 mm
  • 18
    420841520 Socket Head Screw M8 x 12
    Socket Head Screw M8 x 12
  • 19
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 21
    409207900 Male Terminal Housing (3 circuits)
    Male Terminal Housing (3 circuits)
  • 22
    409208500 Seal (3 circuits)
    Seal (3 circuits)
  • 23
    409011100 Male Terminal
    Male Terminal
  • 24
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
