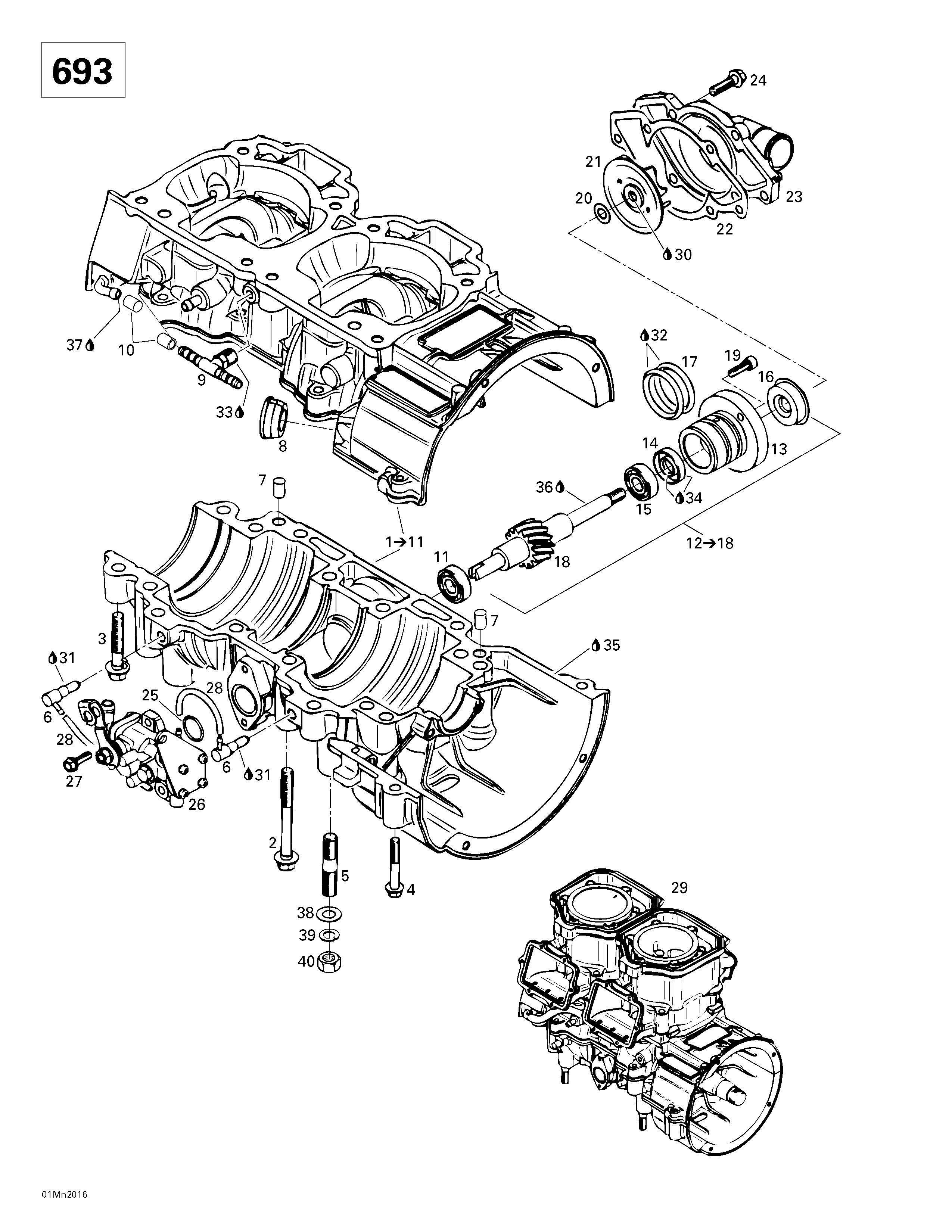

01- Crankcase, Water Pump And Oil Pump 2 для BRP Ski-Doo Formula Z 600/700 - 2000

№

Артикул

Название
1

420888272 Crankcase Ass'y. Includes 1 - 11. Formula Z 700.

Crankcase Ass'y. Includes 1 - 11. Formula Z 700.

0 ₽
2

420841316 Hex. Collar Screw M8 x 75. Formula Z 700.

Hex. Collar Screw M8 x 75. Formula Z 700.

10 ₽
3

420940636 Hex. Collar Screw M8 x 45. Formula Z 700.

Hex. Collar Screw M8 x 45. Formula Z 700.

0 ₽
4

420640311 Hex. Collar Screw M6 x 45. Formula Z 700.

Hex. Collar Screw M6 x 45. Formula Z 700.

370 ₽
5

420941644 Stud M10 x 23. Formula Z 700.

Stud M10 x 23. Formula Z 700.

350 ₽
6

420956510 Check Valve. Formula Z 700.

Check Valve. Formula Z 700.

3 130 ₽
7

420632010 Dowel Pin. Formula Z 700.

Dowel Pin. Formula Z 700.

1 450 ₽
8

420860965 Cable Grommet. Formula Z 700.

Cable Grommet. Formula Z 700.

1 150 ₽
9

420874360 T-Fitting. Formula Z 700.

T-Fitting. Formula Z 700.

10 ₽
10

420960770 Cap. Formula Z 700.

Cap. Formula Z 700.

380 ₽
11

420232100 Ball Bearing. Formula Z 700.

Ball Bearing. Formula Z 700.

10 030 ₽
12

420837421 Water Pump/Oil Pump Ass'y. Includes 12 - 18. Formula Z 700.

Water Pump/Oil Pump Ass'y. Includes 12 - 18. Formula Z 700.

112 000 ₽
14

420230195 Oil Seal. Formula Z 700.

Oil Seal. Formula Z 700.

5 600 ₽
15

420232100 Ball Bearing. Formula Z 700.

Ball Bearing. Formula Z 700.

10 030 ₽
16

420650370 Rotary Seal. Formula Z 700.

Rotary Seal. Formula Z 700.

25 480 ₽
17

420950890 O-Ring. Formula Z 700.

O-Ring. Formula Z 700.

1 540 ₽
19

420840511 Socket Head Screw M5 x 16. Formula Z 700.

Socket Head Screw M5 x 16. Formula Z 700.

670 ₽
20

420227945 Washer. Formula Z 700.

Washer. Formula Z 700.

1 450 ₽
21

420222505 Water Impeller. Formula Z 700.

Water Impeller. Formula Z 700.

6 480 ₽
22

420931810 Gasket. Formula Z 700.

Gasket. Formula Z 700.

4 520 ₽
23

420922630 Water Pump Housing. Formula Z 700.

Water Pump Housing. Formula Z 700.

5 020 ₽
24

420240031 Hex. Screw M6 x 25. Formula Z 700.

Hex. Screw M6 x 25. Formula Z 700.

280 ₽
25

420230400 O-Ring. Formula Z 700.

O-Ring. Formula Z 700.

0 ₽
26

420888265 Oil Pump Ass'y. Formula Z 700.

Oil Pump Ass'y. Formula Z 700.

0 ₽
27

420941925 Screw M5 x 16. Formula Z 700.

Screw M5 x 16. Formula Z 700.

180 ₽
28

414413800 Oil Line. Formula Z 700.

Oil Line. Formula Z 700.

300 ₽
29

420069302 Short Block Ass'y. Formula Z 700.

Short Block Ass'y. Formula Z 700.

0 ₽
30

293800060 Loctite 243, 10 ml. Formula Z 700.

Loctite 243, 10 ml. Formula Z 700.

2 760 ₽
31

413711400 Loctite 648, 10 ml. Formula Z 700.

Loctite 648, 10 ml. Formula Z 700.

3 420 ₽
32

413707000 Molykote 111. Formula Z 700.

Molykote 111. Formula Z 700.

7 550 ₽
34

420899271 Petamo Grease, GHY133N, 400 g. Formula Z 700.

Petamo Grease, GHY133N, 400 g. Formula Z 700.

8 190 ₽
35

420297905 Sealing Compound 2290, 310 ml. Formula Z 700.

Sealing Compound 2290, 310 ml. Formula Z 700.

0 ₽
36

413802900 Injection Oil (12 x 1 liter). Formula Z 700.

Injection Oil (12 x 1 liter). Formula Z 700.

1 050 ₽
37

293550021 Isoflex Grease, 45 g. Formula Z 700.

Isoflex Grease, 45 g. Formula Z 700.

6 860 ₽
38

234001410 Flat Washer 10 mm. Formula Z 700.

Flat Washer 10 mm. Formula Z 700.

420 ₽
39

234100602 Lock Spring Washer 10 mm. Formula Z 700.

Lock Spring Washer 10 mm. Formula Z 700.

130 ₽
40

232006414 Hex. Nut M10. Formula Z 700.

Hex. Nut M10. Formula Z 700.

460 ₽
