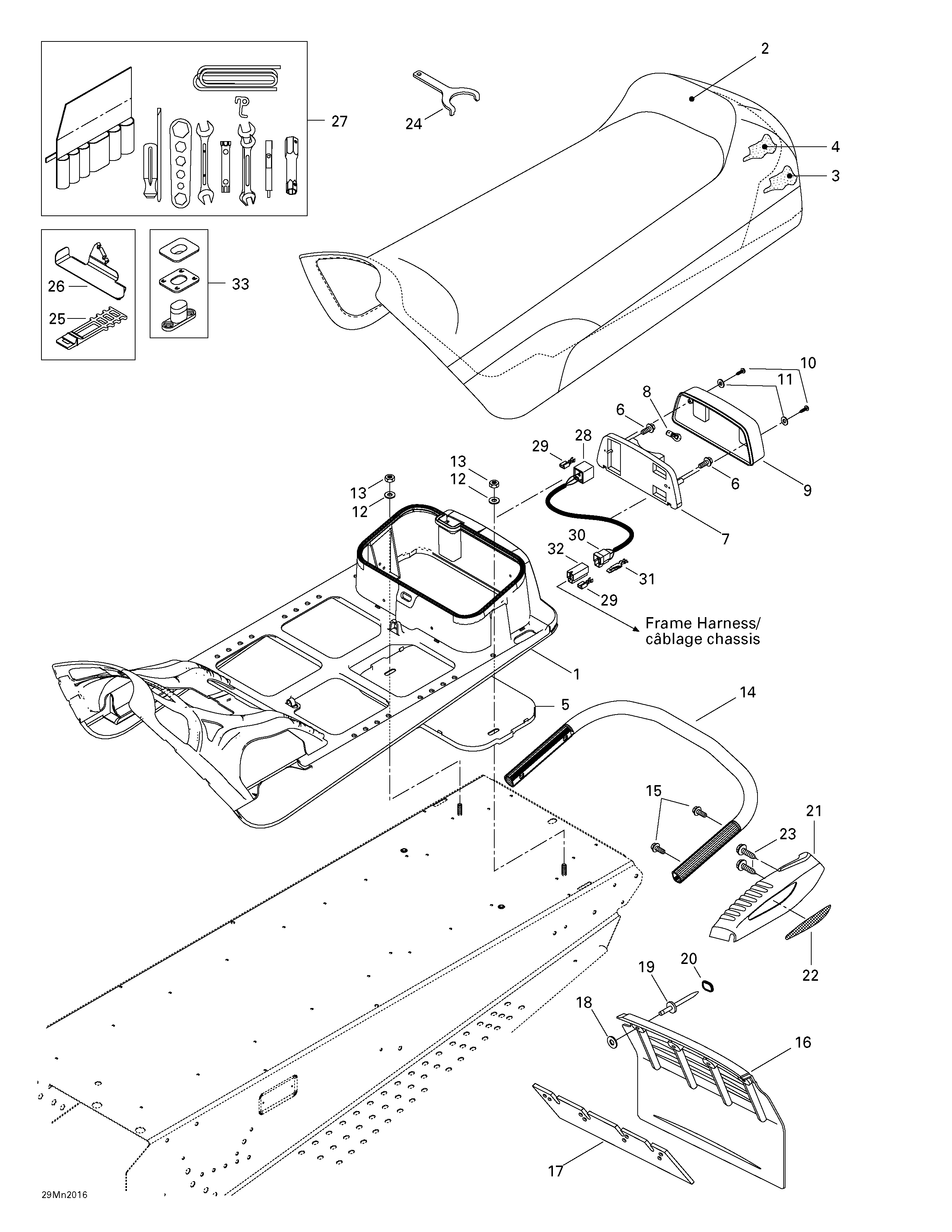

09- Seat And Accessories для BRP Ski-Doo Formula Z 600/700 - 2000
-
№АртикулНазвание
-
1572107600 Seat BaseSeat Base
-
2510003811 Seat CoverSeat Cover
-
3510003608 Seat FoamSeat Foam
-
4510003500 Seat FoamSeat Foam
-
5572107601 Under ChestUnder Chest
-
6732603006 Hex. ScrewHex. Screw
-
7414513600 Light HousingLight Housing
-
8410504000 Tail Lamp BulbTail Lamp Bulb
-
9414513700 LensLens
-
10209632540 Tapping ScrewTapping Screw
-
11414516400 WasherWasher
-
12234082410 Flat Washer 8 mmFlat Washer 8 mm
-
13232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
14518318200 Rear BumperRear Bumper
-
15207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
16520000180 Snow GuardSnow Guard
-
17572108200 ReinforcementReinforcement
-
18517225900 Flat WasherFlat Washer
-
19390908000 Pop Rivet 3/16 (Black)Pop Rivet 3/16 (Black)
-
20415073300 CapCap
-
21572092200 R.H. Moulding (Black)R.H. Moulding (Black)
-
572092300 L.H. Moulding (Black)L.H. Moulding (Black)
-
22516000237 R.H. ReflectorR.H. Reflector
-
516000238 LH ReflectorLH Reflector
-
23365901100 Hex. Tapping ScrewHex. Tapping Screw
-
24529032900 Wrench AdjusterWrench Adjuster
-
25570069700 LatchLatch
-
26518321999 Tool Kit SupportTool Kit Support
-
27529035596 Tool KitTool Kit
-
28515175250 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
29561503100 Female TerminalFemale Terminal
-
30409204200 Male Terminal Housing (3 circuits)Male Terminal Housing (3 circuits)
-
31409206100 Male TerminalMale Terminal
-
32409204300 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
33414728000 Seat BuckleSeat Buckle
