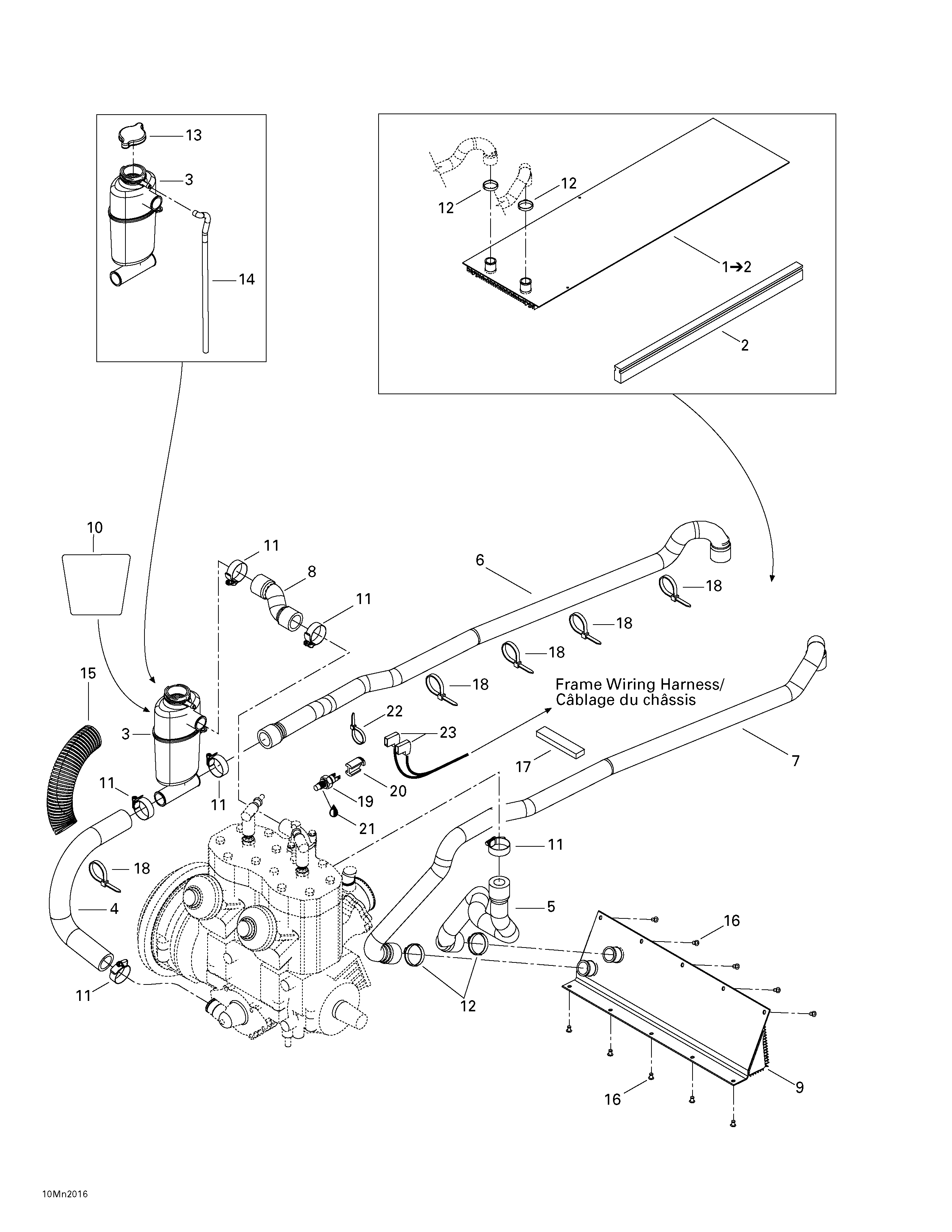

01- Cooling System для BRP Ski-Doo Formula Z 600/700 - 2000

  • №
    Артикул
    Название
  • 1
    517296300 Rear Radiator. Includes 1 - 2.
    Rear Radiator. Includes 1 - 2.
  • 2
    518321655 Radiator Protector
    Radiator Protector
  • 3
    509000000 Tank Coolant
    Tank Coolant
  • 4
    509000001 Engine Inlet Hose
    Engine Inlet Hose
  • 5
    509000046 Engine Outlet Hose
    Engine Outlet Hose
  • 6
    509000003 Radiator Inlet Hose
    Radiator Inlet Hose
  • 7
    509000004 Radiator Outlet Hose
    Radiator Outlet Hose
  • 8
    509000005 Deviation Hose
    Deviation Hose
  • 9
    517297100 Front Radiator
    Front Radiator
  • 10
    509000068 Reflective Sheet
    Reflective Sheet
  • 11
    408800400 Tridon Gear Clamp
    Tridon Gear Clamp
  • 12
    509000045 Oetiker Gear Clamp
    Oetiker Gear Clamp
  • 13
    414684700 Pressure Cap
    Pressure Cap
  • 14
    415110000 Polyurethane Hose 5.2 mm
    Polyurethane Hose 5.2 mm
  • 15
    415084700 Protective Shield
    Protective Shield
  • 16
    390402200 Pop Rivet 3/16
    Pop Rivet 3/16
  • 17
    293200003 Seal
    Seal
  • 18
    293750008 Tie Rap 350 mm
    Tie Rap 350 mm
  • 19
    512047000 Temperature Sensor
    Temperature Sensor
  • 20
    515175297 Connector Plug
    Connector Plug
  • 21
    293800018 Loctite 592, Pipe Sealant, 50 ml
    Loctite 592, Pipe Sealant, 50 ml
  • 22
    293750002 Tie Rap 130 mm
    Tie Rap 130 mm
  • 23
    409010300 Female Terminal
    Female Terminal
