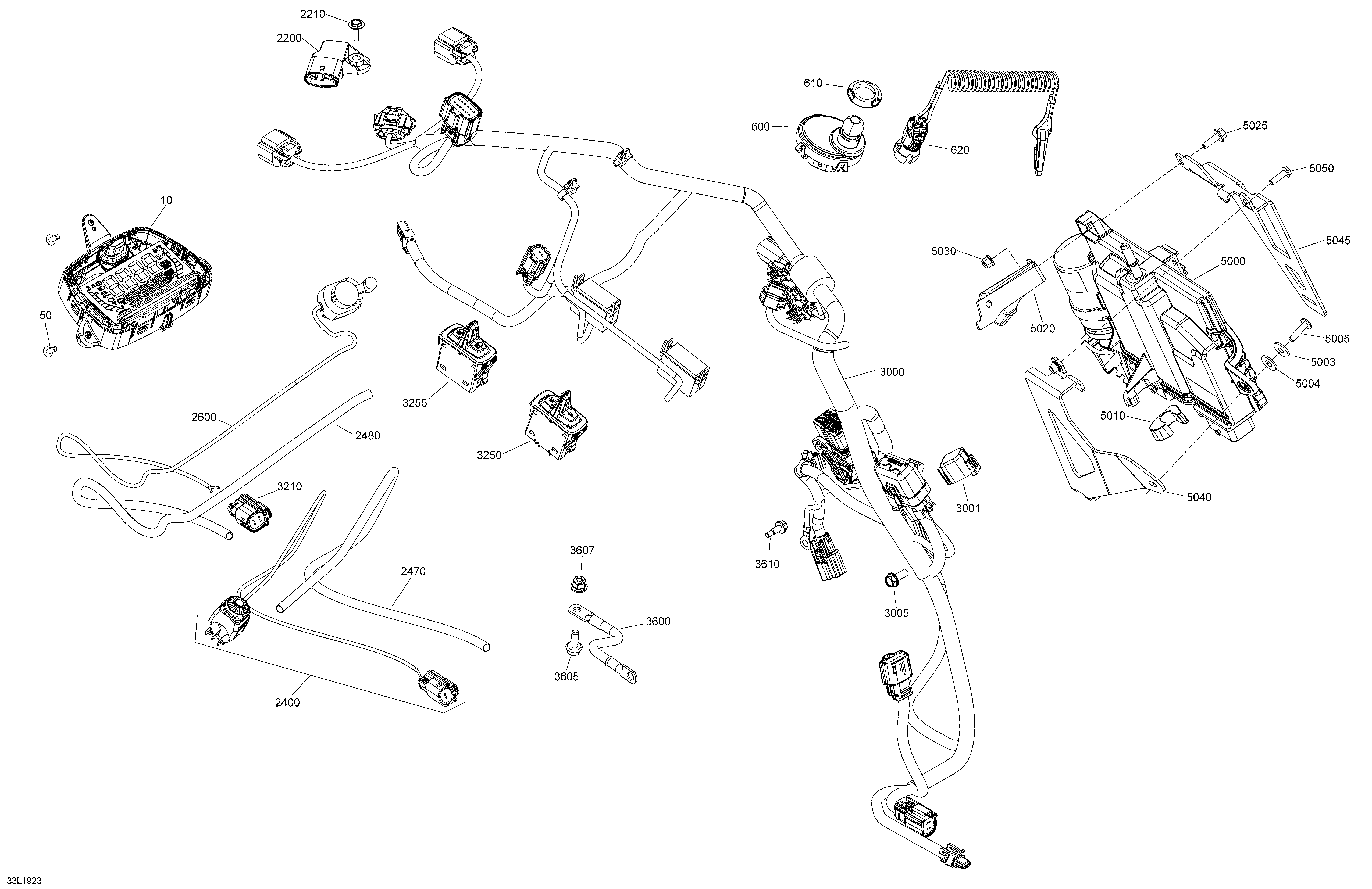

10- Electrical Rave - 600 Racing для BRP Lynx 003 - RAVE RS 600 RS E-TEC - 2019
-
№АртикулНазвание
-
10515178456 IndicatorIndicator
-
50250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
600515178225 DESS Switch, RFIDDESS Switch, RFID
-
610278002963 Safety Nut (DESS Switch)Safety Nut (DESS Switch)
-
620515178288 KeyKey
-
2200707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
2210250000725 Screw M4 X 16Screw M4 X 16
-
2400515178657 Control ButtonControl Button
-
2470415130141 SleeveSleeve
-
2480415130141 SleeveSleeve
-
2600515178300 Emergency Stop SwitchEmergency Stop Switch
-
3000515178550 Chassis Wiring HarnessChassis Wiring Harness
-
3001515178435 Diagnostic CapDiagnostic Cap
-
3005250001062 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3210515178177 4 Circuits Female Housing4 Circuits Female Housing
-
3250515178462 Switch RockerSwitch Rocker
-
3255515178463 Switch RockerSwitch Rocker
-
3600515178248 Ground WireGround Wire
-
3605207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3607233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
3610250000911 Hex. Flanged Screw M5 X 16Hex. Flanged Screw M5 X 16
-
5000512061093 Igniton ModuleIgniton Module
-
5003250200140 WasherWasher
-
5004250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
5005250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
5010515178430 Rubber StopperRubber Stopper
-
5020515178491 Support ModuleSupport Module
-
5025207651646 Hex. Flanged Screw M5 X 16Hex. Flanged Screw M5 X 16
-
5030233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
5040515178488 Support ModuleSupport Module
-
5045515178489 Support ModuleSupport Module
-
5050207551634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
