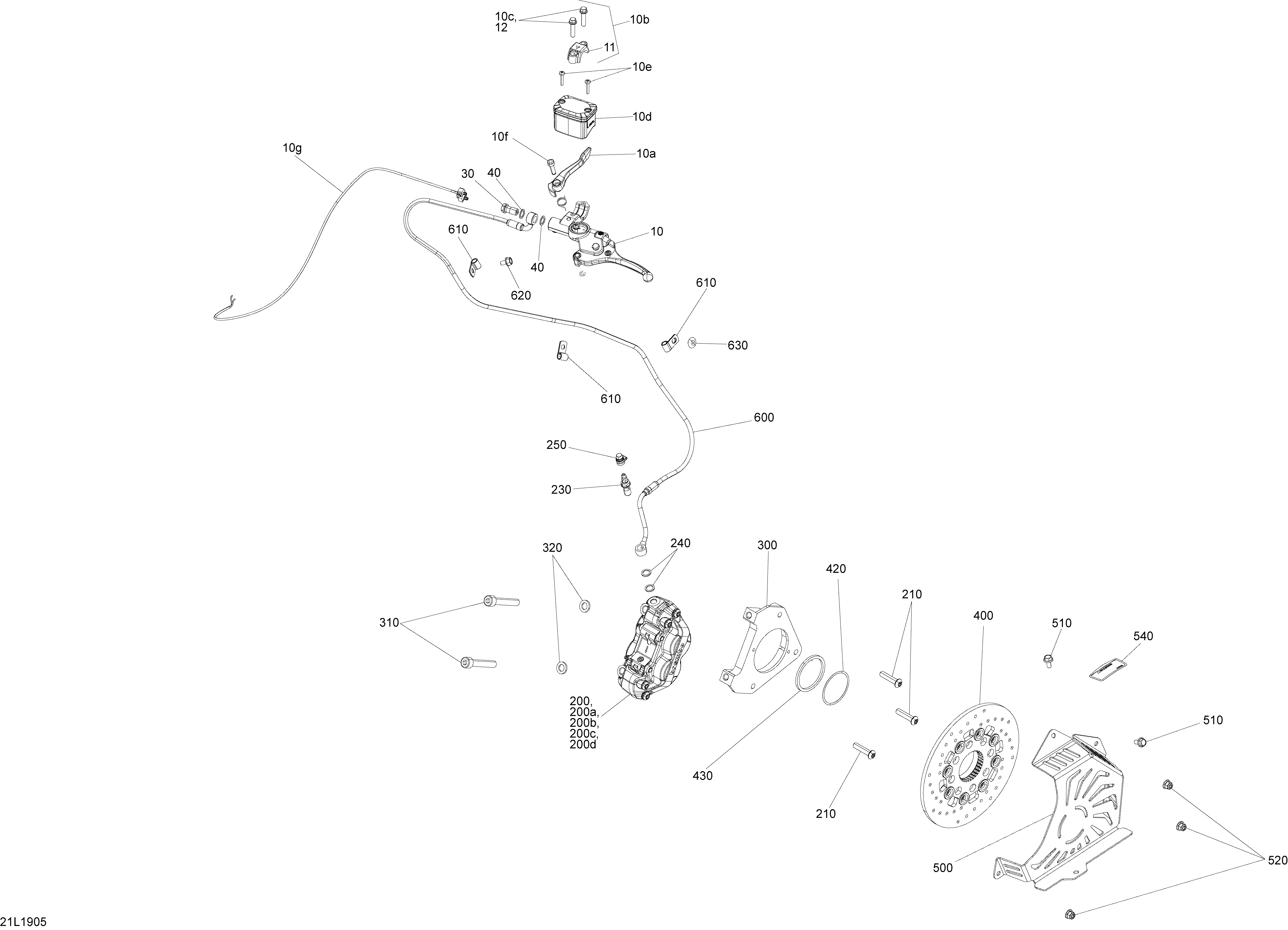

06- Brakes - Rave - 600 Racing для BRP Lynx 003 - RAVE RS 600 RS E-TEC - 2019

  • №
    Артикул
    Название
  • 10
    507032614 Cylinder Master. Includes 10 to 10g
    Cylinder Master. Includes 10 to 10g
  • 10a
    507032476 Lever
    Lever
  • 10b
    507032477 Clamp And Screw Kit. Includes 10b to 10c
    Clamp And Screw Kit. Includes 10b to 10c
  • 10c
    250000447 Hex Flanged Screw M6 X 25
    Hex Flanged Screw M6 X 25
  • 10d
    507032478 Master Cylinder Reservoir Ass'y. Includes 10d to 10e
    Master Cylinder Reservoir Ass'y. Includes 10d to 10e
  • 10e
    415129356 Screw M4 X 20
    Screw M4 X 20
  • 10f
    415030000 Pin Ass'y
    Pin Ass'y
  • 10g
    507032601 Microswitch
    Microswitch
  • 11
    719000049 Clamps Kit
    Clamps Kit
  • 12
    250000447 Hex Flanged Screw M6 X 25
    Hex Flanged Screw M6 X 25
  • 30
    507032551 Banjo Bolt
    Banjo Bolt
  • 40
    705601628 Copper Washer
    Copper Washer
  • 200
    507032613 Brake Caliper Ass'y. Includes 200 to 200d
    Brake Caliper Ass'y. Includes 200 to 200d
  • 200a
    507032615 Brake Pads Kit
    Brake Pads Kit
  • 200b
    507032616 Pin & Spring Kit
    Pin & Spring Kit
  • 200c
    507032617 Spring Plate
    Spring Plate
  • 200d
    507032618 Spring Clips
    Spring Clips
  • 210
    250000971 Screw-torx Button Head M8 X 35
    Screw-torx Button Head M8 X 35
  • 230
    705601201 Banjo Bolt/ Bleeder
    Banjo Bolt/ Bleeder
  • 240
    705601628 Copper Washer
    Copper Washer
  • 250
    705601190 Bleeder Bolt Cap
    Bleeder Bolt Cap
  • 300
    507032647 Brake Caliper Support
    Brake Caliper Support
  • 310
    244006060 Socket Screw M10 X 60
    Socket Screw M10 X 60
  • 320
    503192496 Washer
    Washer
  • 400
    507032643 Disc Brake Ass'y
    Disc Brake Ass'y
  • 420
    293300209 O-ring
    O-ring
  • 430
    507032612 Spacer
    Spacer
  • 500
    507032656 Black, Disc Protector
    Black, Disc Protector
  • 510
    207661254 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 520
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 540
    516007652 Engine Guard Warning Decal
    Engine Guard Warning Decal
  • 600
    507032661 Brake Hose
    Brake Hose
  • 610
    414108400 Open Clamp
    Open Clamp
  • 615
    250000742 Torx Screw M5 X 14
    Torx Screw M5 X 14
  • 620
    210261040 Hex. Flanged Screw M6 X 10
    Hex. Flanged Screw M6 X 10
  • 630
    293150231 Blind Rivet 3/16
    Blind Rivet 3/16
