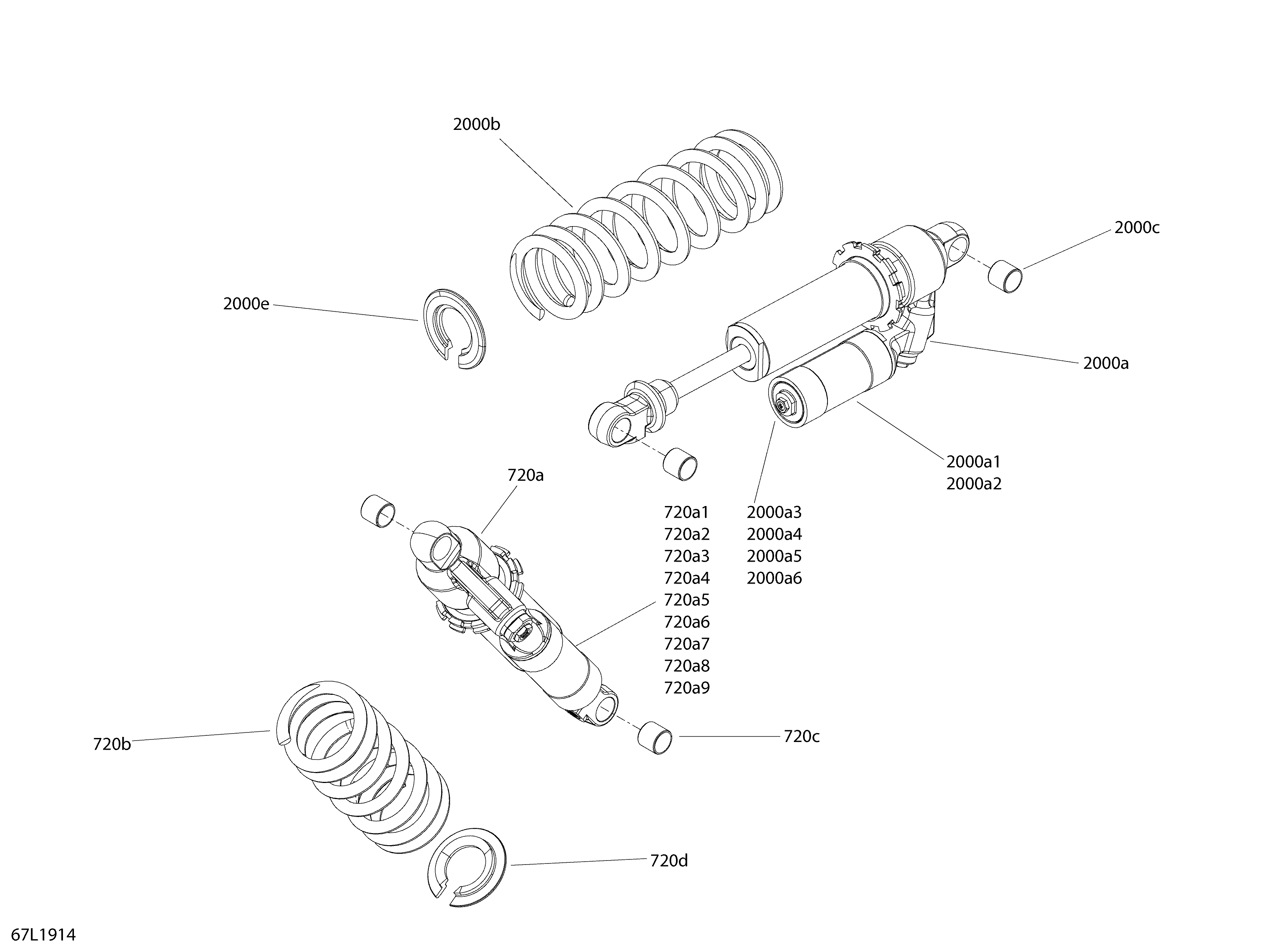

08- Rear Shocks - Racing для BRP Lynx 003 - RAVE RS 600 RS E-TEC - 2019
-
№АртикулНазвание
-
720a503195089 Shock Kashima. Includes 720a to 720a9Shock Kashima. Includes 720a to 720a9
-
720a1415093807 O-Ring. not shownO-Ring. not shown
-
720a2415093806 Piston Ring. not shownPiston Ring. not shown
-
720a3505070398 Air Valve. not shownAir Valve. not shown
-
720a4505070399 Screw. not shownScrew. not shown
-
720a5505070400 O-Ring. not shownO-Ring. not shown
-
720a6415093804 O-Ring. not shownO-Ring. not shown
-
720a7619300214 Rod. not shownRod. not shown
-
720a8619300213 Bearing. not shownBearing. not shown
-
720a9619300215 Rod. not shownRod. not shown
-
720b503195211 Black, Spring, 220MM-55N/MMBlack, Spring, 220MM-55N/MM
-
720c503195134 Glide BearingGlide Bearing
-
720d605354631 Spring LockSpring Lock
-
2000a503195091 Shock Kashima. Includes 2000a to 2000a6Shock Kashima. Includes 2000a to 2000a6
-
2000a1415093807 O-Ring. not shownO-Ring. not shown
-
2000a2415093806 Piston Ring. not shownPiston Ring. not shown
-
2000a3505070398 Air Valve. not shownAir Valve. not shown
-
2000a4505070399 Screw. not shownScrew. not shown
-
2000a5505070400 O-Ring. not shownO-Ring. not shown
-
2000a6415093804 O-Ring. not shownO-Ring. not shown
-
2000b503195209 Black, Spring 280 MM-65 N/MMBlack, Spring 280 MM-65 N/MM
-
2000c503195134 Glide BearingGlide Bearing
-
2000e605354631 Spring LockSpring Lock
