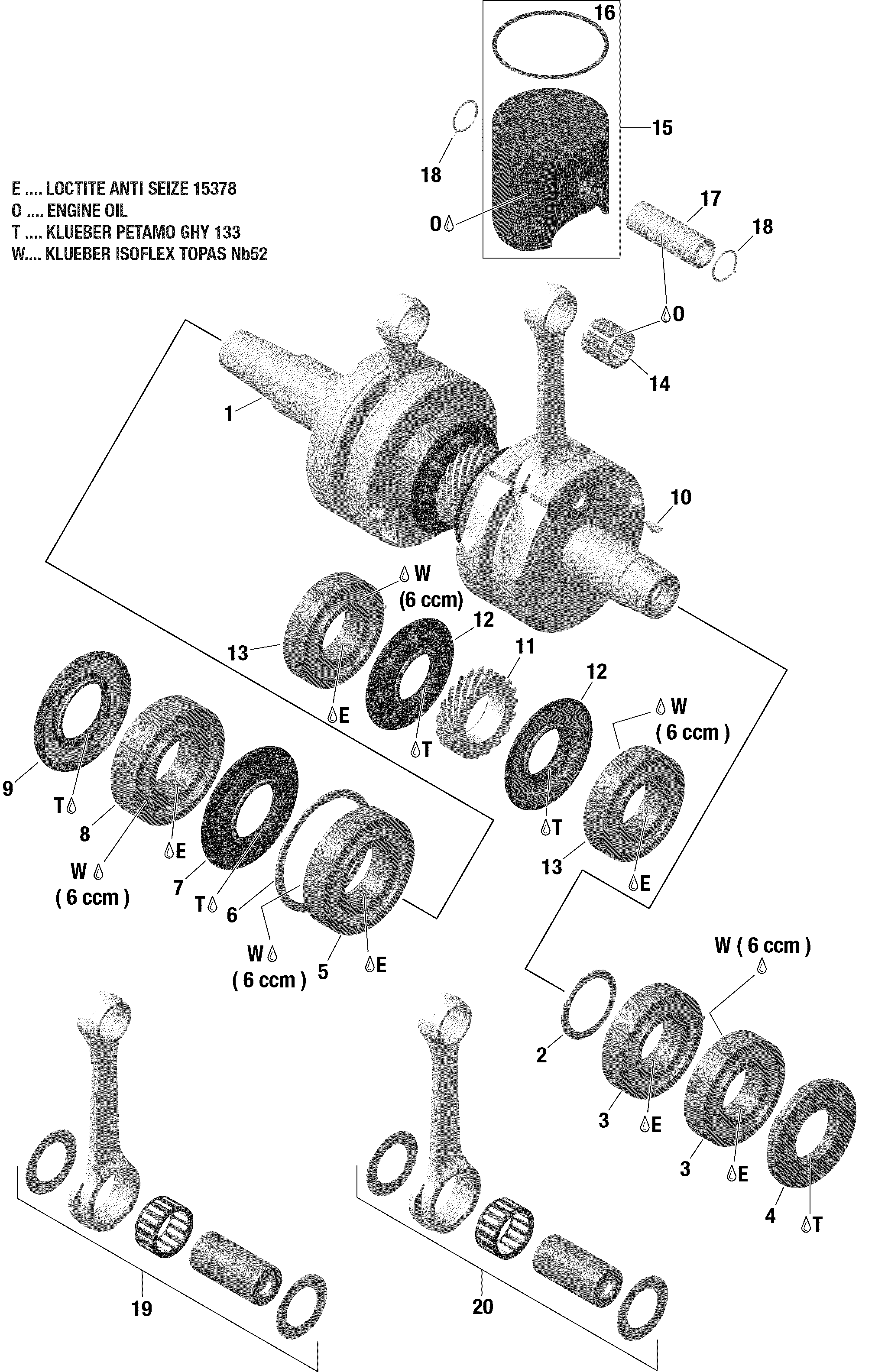

01- Crankshaft And Pistons - 598 RS для BRP Lynx 003 - RAVE RS 600 RS E-TEC - 2019

-
№АртикулНазвание
-
1>8,10>13420686690 Crankshaft Ass'yCrankshaft Ass'y
-
2420827767 ShimShim
-
3420832575 Ball BearingBall Bearing
-
4420831955 Oil SealOil Seal
-
5420832600 Ball Bearing 6208Ball Bearing 6208
-
6420926190 WasherWasher
-
7420931910 Oil SealOil Seal
-
8420832603 Ball BearingBall Bearing
-
9420931284 Oil SealOil Seal
-
10420246015 Woodruff KeyWoodruff Key
-
11420834565 Central GearCentral Gear
-
12420931455 Oil SealOil Seal
-
13420832575 Ball BearingBall Bearing
-
14420832445 Needle BearingNeedle Bearing
-
15>16420893892 Piston Ass'y 72.17MMPiston Ass'y 72.17MM
-
16420815470 Semi Trapez RingSemi Trapez Ring
-
17420916413 Piston PinPiston Pin
-
18420845106 Piston CirclipPiston Circlip
-
19420891637 Rod Repair Kit PTORod Repair Kit PTO
-
20420891639 Rod Repair Kit MAGRod Repair Kit MAG
