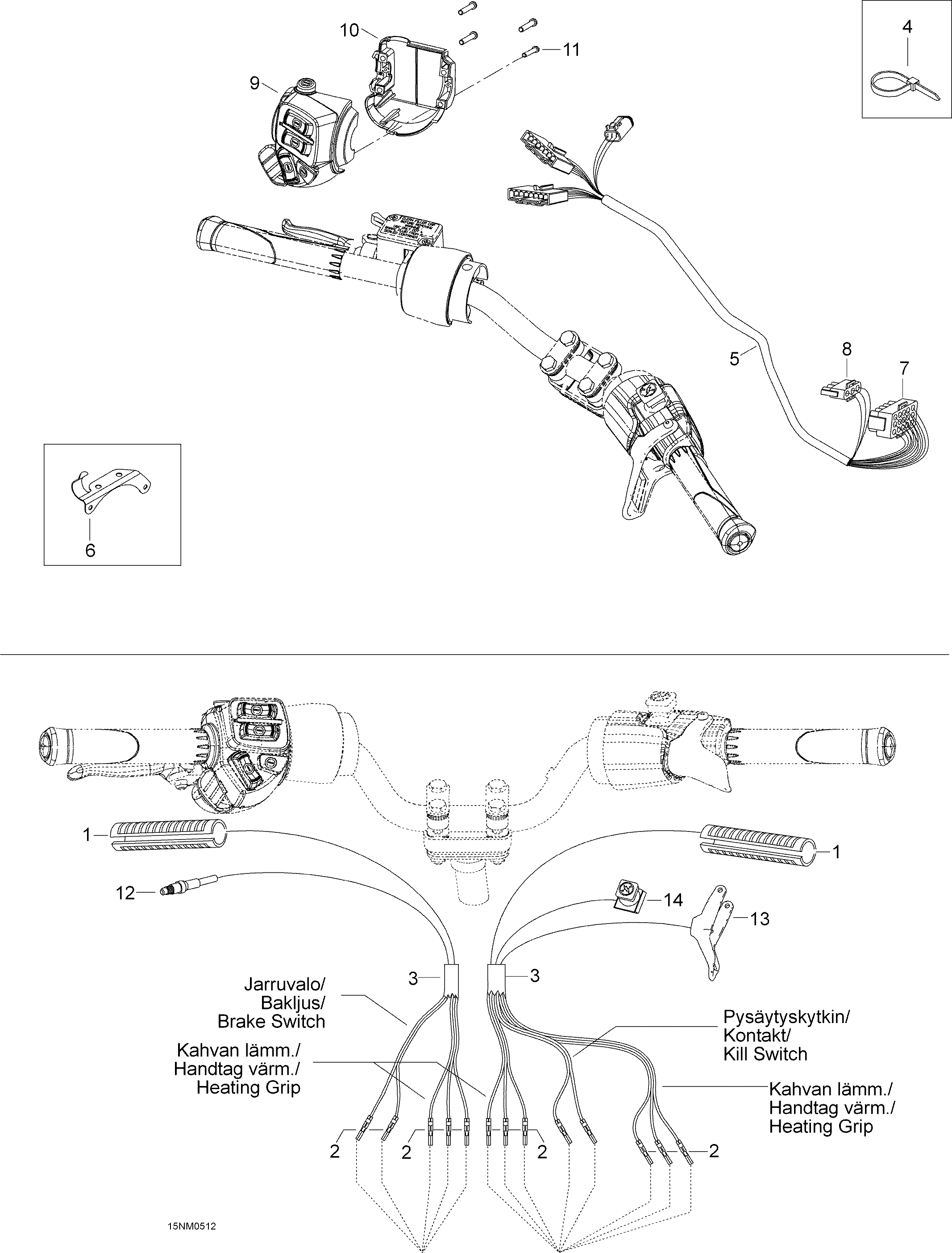

10- Steering Harness для BRP Lynx Sport Touring 600HO SDI - 2005

-
№АртикулНазвание
-
1515175657 Heating elementHeating element
-
242603 ConnectorConnector
-
339023 TubingTubing
-
4
-
4
-
5605150621 main harnessmain harness
-
6515175254 Cable supportCable support
-
742617 Male connector housing (15 circuit)Male connector housing (15 circuit)
-
842271 Male connector housing (3 circuit)Male connector housing (3 circuit)
-
9515176015 Switch housingSwitch housing
-
10515175926 CoverCover
-
1140903 Plastofast-screw 3.5 x 25Plastofast-screw 3.5 x 25
-
12507032366 Microswitch ass'yMicroswitch ass'y
-
13512059107 Throttle handleThrottle handle
-
14515175410 Switch killSwitch kill
