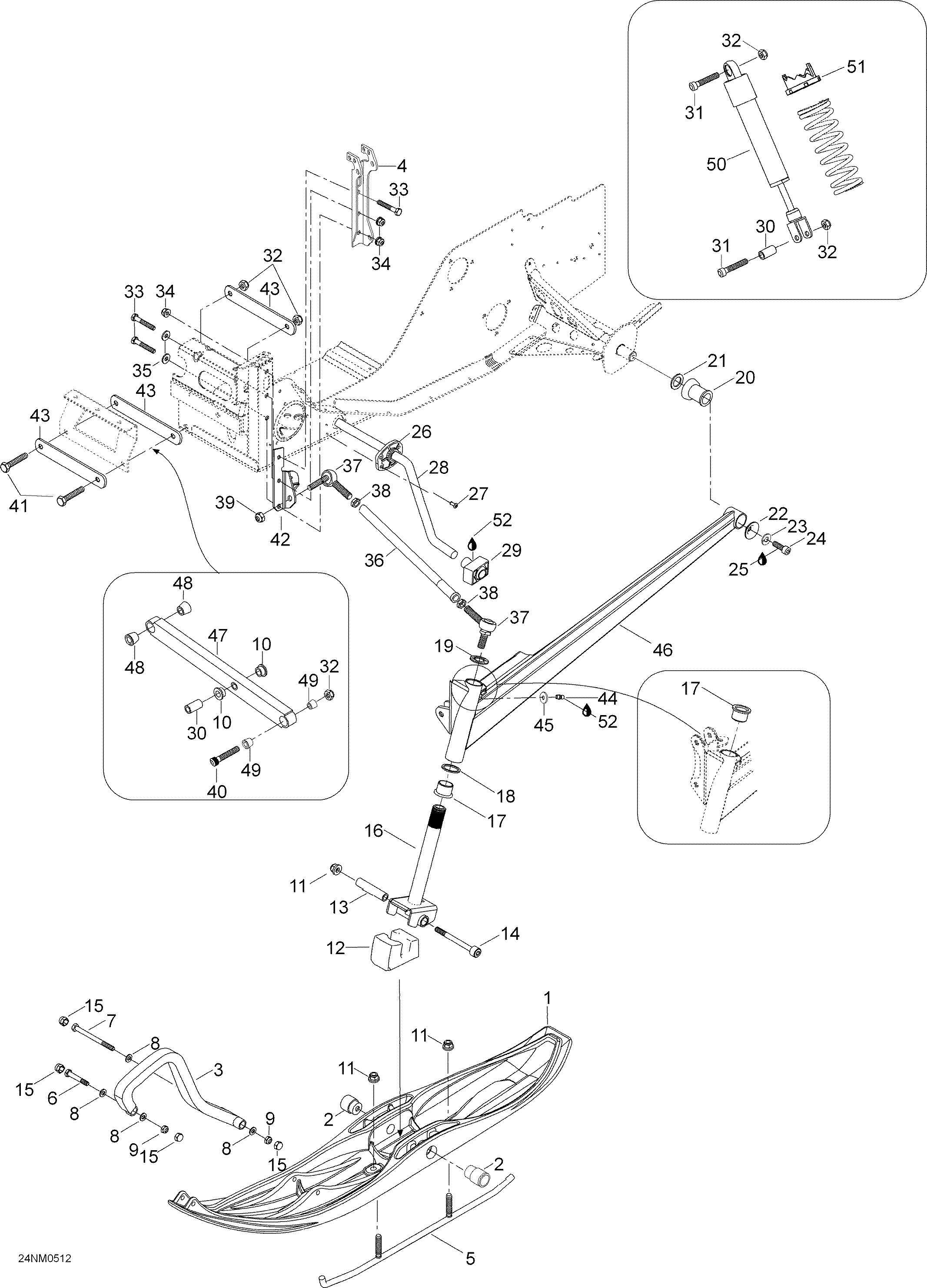

07- Front Suspension And Ski для BRP Lynx Sport Touring 600HO SDI - 2005

-
№АртикулНазвание
-
1605148440 ADJ-ski. Includes 1 to 2ADJ-ski. Includes 1 to 2
-
2605348392 SleeveSleeve
-
3505070963 Plastic handle, blackPlastic handle, black
-
45245488 Shock bracketShock bracket
-
45246395 Shock bracketShock bracket
-
5605352087 L.H. RunnerL.H. Runner
-
5605352088 R.H. RunnerR.H. Runner
-
640009 Hex. screw M8 x 50Hex. screw M8 x 50
-
740264 Hex. screw M8 x 90Hex. screw M8 x 90
-
820004 WasherWasher
-
933011 Elastic stop nut M8Elastic stop nut M8
-
1031029 CushionCushion
-
1133074 Elastic flange nut M10Elastic flange nut M10
-
12605348458 Stopper-skiStopper-ski
-
13506133300 SleeveSleeve
-
1440225 Socket head screw M10 x 140Socket head screw M10 x 140
-
33074 Elastic flange nut M10Elastic flange nut M10
-
1528056 CapCap
-
16605248927 Ski legSki leg
-
17505070003 BushingBushing
-
18505070004 WasherWasher
-
1920074 Lock washer M12Lock washer M12
-
20570062200 Rubber damperRubber damper
-
21503146700 WasherWasher
-
22506079600 CupCup
-
2320014 Spring washerSpring washer
-
2440289 Socket head screw M8 x 25Socket head screw M8 x 25
-
25293800060 Loctite 243, 10mlLoctite 243, 10ml
-
26505070191 SleeveSleeve
-
2736087 RivetRivet
-
285246797 Sway barSway bar
-
29505070117 Block-joint ballBlock-joint ball
-
305441433 BushingBushing
-
3140837 Socket head screw M10 x 55Socket head screw M10 x 55
-
3233012 Elastic stop nut M10Elastic stop nut M10
-
3340010 Hex. screw M8 x 55Hex. screw M8 x 55
-
3433201 Elastic flanged nut M8Elastic flanged nut M8
-
3520104 Washer, hardened M8Washer, hardened M8
-
365346122 Upper armUpper arm
-
3731092 Ball jointBall joint
-
3833048 Jam nut M12Jam nut M12
-
3933087 Jam nut elastic M12Jam nut elastic M12
-
4040858 Socket head screw M10 x 50Socket head screw M10 x 50
-
4140814 Hex. screw M10 x 110Hex. screw M10 x 110
-
425348063 L.H. Upper arm bracketL.H. Upper arm bracket
-
425348064 R.H. Upper arm bracketR.H. Upper arm bracket
-
435346112 Support plateSupport plate
-
4434011 Grease fittingGrease fitting
-
4520007 WasherWasher
-
46605248970 R.H. swing arm (Full Moon)R.H. swing arm (Full Moon)
-
46605248969 L.H. swing arm (Full Moon)L.H. swing arm (Full Moon)
-
47605248971 Lower arm (Full Moon). Includes 47-49Lower arm (Full Moon). Includes 47-49
-
485447769 Inner sleeveInner sleeve
-
495447770 Outer sleeveOuter sleeve
-
5023147 Shock ass'y. Includes 50-51Shock ass'y. Includes 50-51
-
51503183700 Adjusting camAdjusting cam
-
52293550033 Synthetic grease, 400gSynthetic grease, 400g
