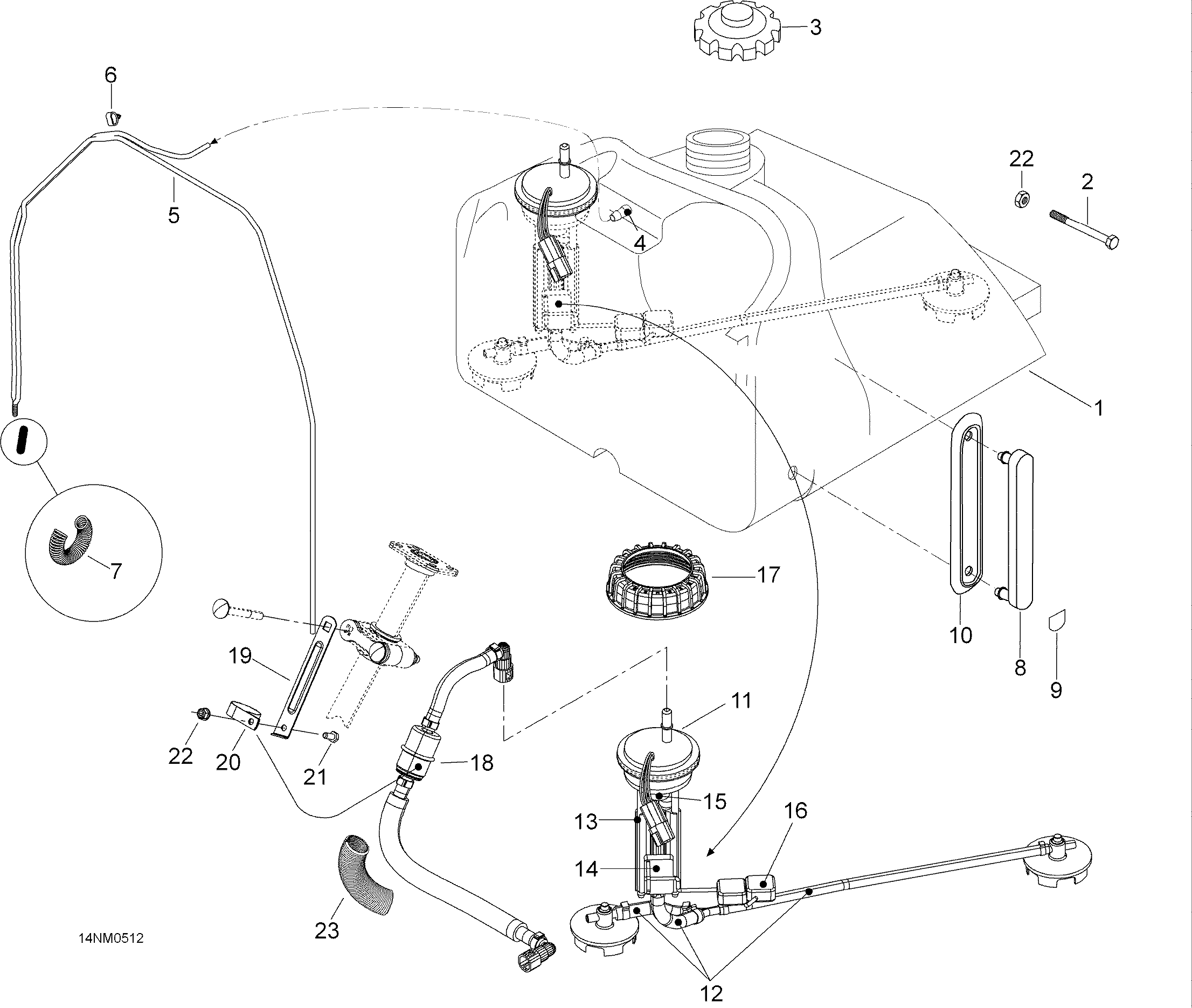

02- Fuel System для BRP Lynx Sport Touring 600HO SDI - 2005
-
№АртикулНазвание
-
1605149201 Fuel tankFuel tank
-
240193 Screw M6 x 50Screw M6 x 50
-
3572039600 Cap assemblyCap assembly
-
419051 FittingFitting
-
539035 AirhoseAirhose
-
6513032923 Tube clampTube clamp
-
725003 SpringSpring
-
8572015900 Fuel gaugeFuel gauge
-
9549200 Fuel labelFuel label
-
10570018000 Housing gaugeHousing gauge
-
11513033101 Fuel pump assy. Includes 11 to 16Fuel pump assy. Includes 11 to 16
-
12861302300 Fuel hose kitFuel hose kit
-
13861302000 Fuel pumpFuel pump
-
14861301800 Resistor card kitResistor card kit
-
15861302100 Regulator kitRegulator kit
-
16861301900 Float level kitFloat level kit
-
17513033040 CoverCover
-
18605350660 Fuel filter assyFuel filter assy
-
19513033057 BracketBracket
-
20513033047 ClampClamp
-
2140029 Screw M6 x 16Screw M6 x 16
-
2233200 Elastig flanged nut M6Elastig flanged nut M6
-
2328015 TubingTubing
