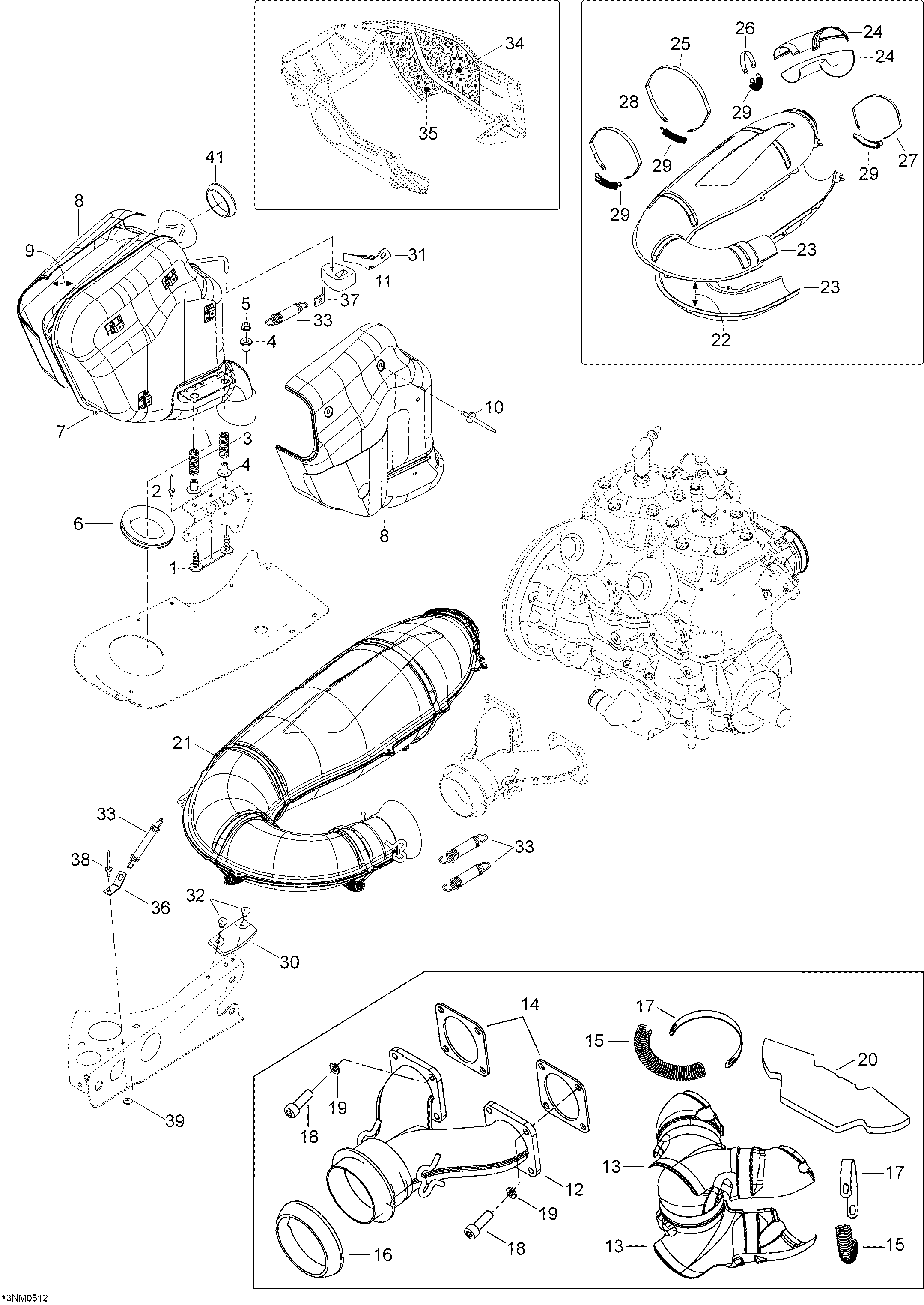

01- Exhaust System для BRP Lynx Sport Touring 600HO SDI - 2005

-
№АртикулНазвание
-
15447628 BracketBracket
-
236083 RivetRivet
-
3414913700 SpringSpring
-
4514053343 SleeveSleeve
-
533029 Lock nut M8Lock nut M8
-
6514053064 Exhaust grommetExhaust grommet
-
7514053815 Muffler ass'y. Includes 7 to 10Muffler ass'y. Includes 7 to 10
-
8514053694 R.H. Heat shieldR.H. Heat shield
-
8514053680 L.H. Heat shieldL.H. Heat shield
-
9514053681 R.H. insulating woolR.H. insulating wool
-
9514053682 L.H. insulating woolL.H. insulating wool
-
10390910000 Pop RivetPop Rivet
-
11514052704 Rubber pumberRubber pumber
-
12420973592 Exhaust manifoldExhaust manifold
-
13514053593 Heat protectorHeat protector
-
14420850552 GasketGasket
-
15514053643 SpringSpring
-
16514053487 GasketGasket
-
17514053603 ClampClamp
-
1840052 Socket head screw M6 x 20Socket head screw M6 x 20
-
1920052 Lock washer A6Lock washer A6
-
20514053588 IsolationIsolation
-
21514053717 Tuned pipe assy. Includes 21 to 29Tuned pipe assy. Includes 21 to 29
-
22514053696 IsolationIsolation
-
23514053724 Rear upper enveloppeRear upper enveloppe
-
23514053691 Lower enveloppeLower enveloppe
-
24514053314 Lower enveloppeLower enveloppe
-
24514053313 Rear upper enveloppeRear upper enveloppe
-
25514053540 Retaining strapRetaining strap
-
26514053492 Retaining strapRetaining strap
-
27514053500 Retaining strapRetaining strap
-
28514053512 Retaining strapRetaining strap
-
29514053643 SpringSpring
-
30570044100 Rubber padRubber pad
-
31514053442 SupportSupport
-
3236037 RivetRivet
-
33415107100 SpringSpring
-
34514052718 Reflective sheetReflective sheet
-
35514053390 Reflective sheetReflective sheet
-
365447086 Spring bracketSpring bracket
-
37514053436 Spring bracketSpring bracket
-
3836489 RivetRivet
-
3920008 Washer A5,3Washer A5,3
-
40514053662 Reflective sheetReflective sheet
-
41514053677 GasketGasket
