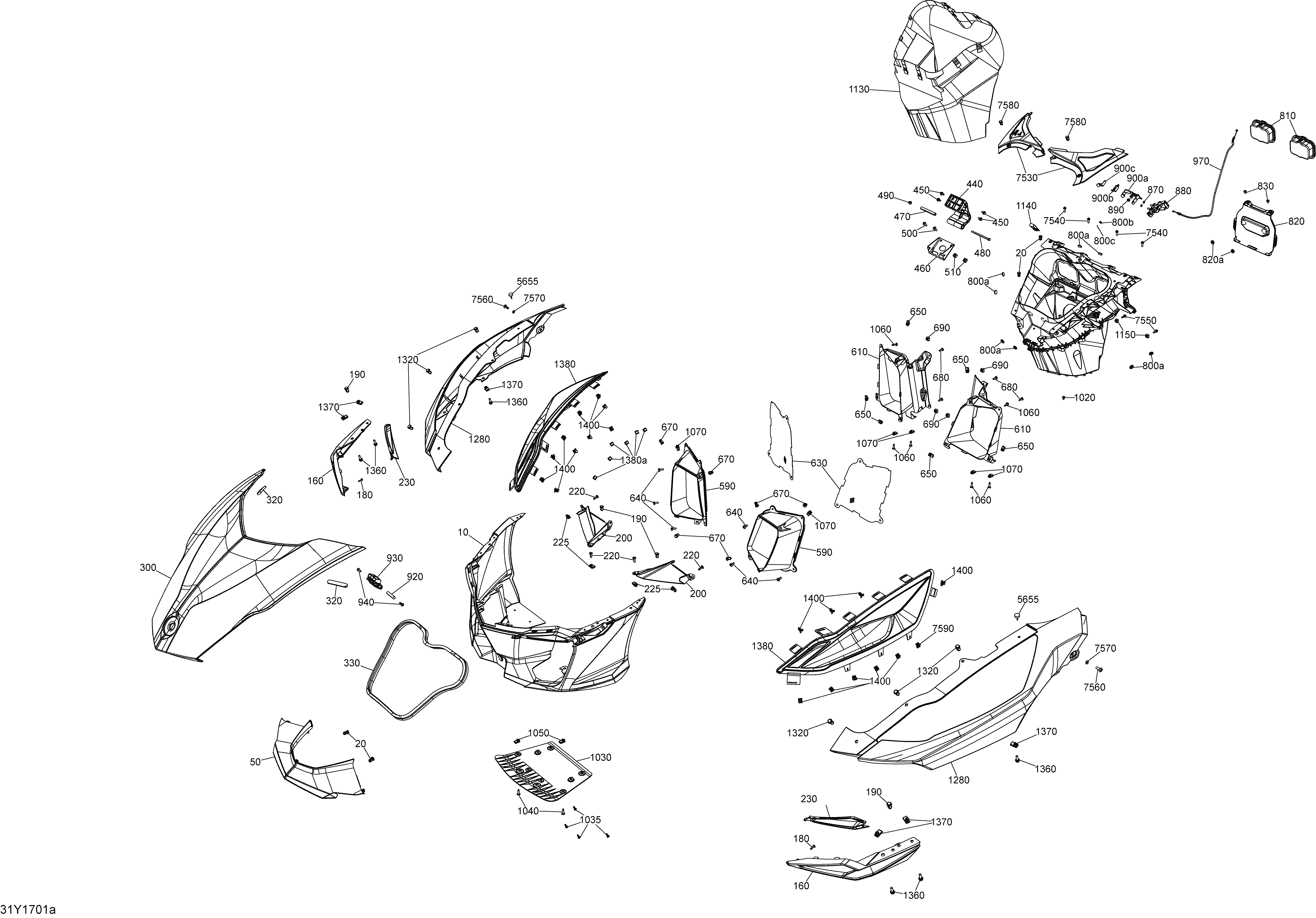

09- Body And Accessories - Front Storage для BRP RT - 2017
-
№АртикулНазвание
-
10705007555 Vegas White Pearl Bumper Cover. White ModelVegas White Pearl Bumper Cover. White Model
-
10708200535 Ivory Bumper Cover. Ivory ModelIvory Bumper Cover. Ivory Model
-
10708200596 Orbital Blue Metallic Bumper Cover. Blue ModelOrbital Blue Metallic Bumper Cover. Blue Model
-
10708200705 Asphalt Gray Bumper Cover. Grey ModelAsphalt Gray Bumper Cover. Grey Model
-
20293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
50705007104 Black Bumper MouldingBlack Bumper Moulding
-
160705004577 LH Front Wing. Package STDLH Front Wing. Package STD
-
160705007344 Chrome LH Front Wing. Package LTDChrome LH Front Wing. Package LTD
-
160705007443 Chrome Platine LH Front Wing. Package SChrome Platine LH Front Wing. Package S
-
160705004578 RH Front Wing. Package STDRH Front Wing. Package STD
-
160705007345 Chrome RH Front Wing. Package LTDChrome RH Front Wing. Package LTD
-
160705007444 Chrome Platine RH Front Wing. Package SChrome Platine RH Front Wing. Package S
-
180250000759 Torx-Truss Pt K40 X 16Torx-Truss Pt K40 X 16
-
190293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
200705007067 LH Front DeflectorLH Front Deflector
-
200705007068 RH Front DeflectorRH Front Deflector
-
220250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
225250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
230705007305 LH Front Wing MouldingLH Front Wing Moulding
-
230705007306 RH Front Wing MouldingRH Front Wing Moulding
-
300705006149 White Hood. White ModelWhite Hood. White Model
-
300708200536 Ivory Hood. Ivory ModelIvory Hood. Ivory Model
-
300708200583 Asphalt Grey Hood. Grey ModelAsphalt Grey Hood. Grey Model
-
300219800221 Hood Replacement Kit. Blue ModelHood Replacement Kit. Blue Model
-
320705006824 Neoprene PadNeoprene Pad
-
330293250047 Neoprene SealNeoprene Seal
-
440705003248 Hood ArmHood Arm
-
450207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
460705005434 Hood PivotHood Pivot
-
470705003322 SpacerSpacer
-
480230061034 Hex. Screw M6 X 110Hex. Screw M6 X 110
-
490233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
500250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
510269500725 Nut Housing Ass'yNut Housing Ass'y
-
590705004579 LH Lower Air DuctLH Lower Air Duct
-
590705004580 RH Lower Air DuctRH Lower Air Duct
-
610705005859 LH Rear Air DuctLH Rear Air Duct
-
610705005860 RH Rear Air DuctRH Rear Air Duct
-
630705008132 Radiator GrillRadiator Grill
-
640250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
650250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
670293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
680250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
690269500725 Nut Housing Ass'yNut Housing Ass'y
-
800>800c705007219 Storage Box Ass'y. Includes 800 to 800cStorage Box Ass'y. Includes 800 to 800c
-
800a293740028 Dual Lock Washer 3/4''Dual Lock Washer 3/4''
-
800b390401400 RivetRivet
-
800c234031600 Flat Washer 3 mm, Stainless SteelFlat Washer 3 mm, Stainless Steel
-
810705011444 Fuse Cover Ass'yFuse Cover Ass'y
-
820>820a705004628 Battery Cover Ass'Y. Includes 820 to 820aBattery Cover Ass'Y. Includes 820 to 820a
-
820a293740028 Dual Lock Washer 3/4''Dual Lock Washer 3/4''
-
830250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
870234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
880705009310 Latch Ass'YLatch Ass'Y
-
890233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
900a705003691 Actuator Bracket. Except Package STDActuator Bracket. Except Package STD
-
900b710001861 Position Sensor. Except Package STDPosition Sensor. Except Package STD
-
900c705005845 Switch Protector Plate. Except Package STDSwitch Protector Plate. Except Package STD
-
920705004513 BushingBushing
-
930705004468 Hood GuideHood Guide
-
940250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
970517305460 Hood CableHood Cable
-
1020293830005 Rubber BumperRubber Bumper
-
1030705002837 Skid PlateSkid Plate
-
1035250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
1040250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
1050250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
1060250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
1070250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
1130219400368 Front Trunk Liner. Except Package STDFront Trunk Liner. Except Package STD
-
1140705004357 Holding Strap. Package STDHolding Strap. Package STD
-
1150269500725 Nut Housing Ass'yNut Housing Ass'y
-
1280708200636 Lh Front Panel Vegas White Pearl. White ModelLh Front Panel Vegas White Pearl. White Model
-
1280708200650 Lh Front Panel Ivory. Ivory ModelLh Front Panel Ivory. Ivory Model
-
1280708200654 Lh Front Panel Orbital Blue Metalli. Blue ModelLh Front Panel Orbital Blue Metalli. Blue Model
-
1280708200706 Lh Front Panel Asphalt Gray. Grey ModelLh Front Panel Asphalt Gray. Grey Model
-
1280708200637 Rh Front Panel Vegas White Pearl. White ModelRh Front Panel Vegas White Pearl. White Model
-
1280708200651 Rh Front Panel Ivory. Ivory ModelRh Front Panel Ivory. Ivory Model
-
1280708200655 Rh Front Panel Orbital Blue Metalli. Blue ModelRh Front Panel Orbital Blue Metalli. Blue Model
-
1280708200707 Rh Front Panel Asphalt Gray. Grey ModelRh Front Panel Asphalt Gray. Grey Model
-
1320293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1360207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1370250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
1380>1380a705003703 LH Air Duct Ass'y. Package STD North America. Includes 1380 to 1380aLH Air Duct Ass'y. Package STD North America. Includes 1380 to 1380a
-
1380>1380a705003706 RH Air Duct Ass'y. Package STD North America. Includes 1380 to 1380aRH Air Duct Ass'y. Package STD North America. Includes 1380 to 1380a
-
1380a414479100 ClipClip
-
1400517302785 ClipClip
-
5655708000759 Rubber StopperRubber Stopper
-
7530705002839 LH Service CenterLH Service Center
-
7530705005903 RH Service CenterRH Service Center
-
7540210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
7550207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7560250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
7570705003207 Plastic WasherPlastic Washer
-
7580293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
7590517302785 ClipClip
