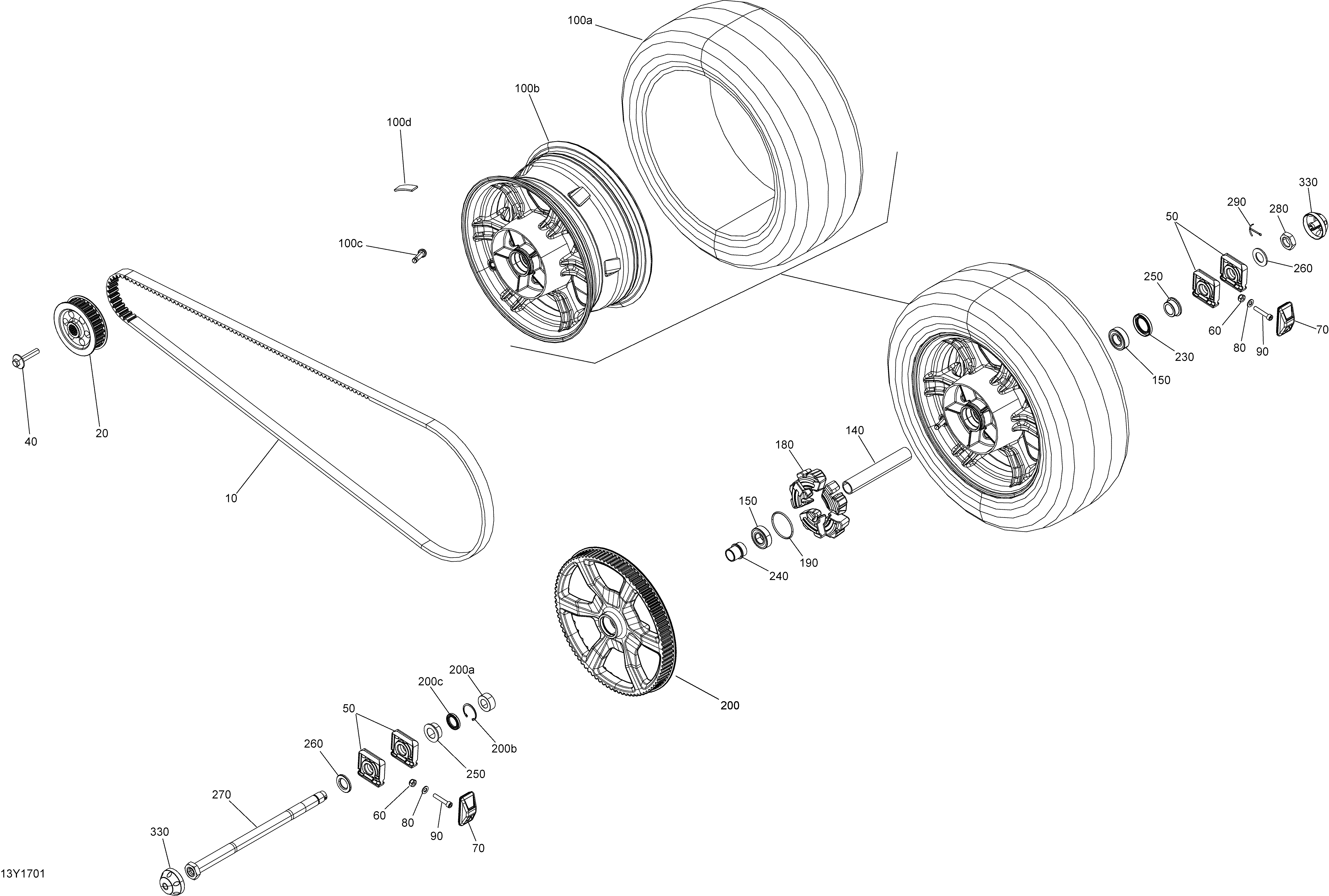

08- Drive System, Rear - All Models для BRP RT - 2017

  • №
    Артикул
    Название
  • 10
    705501304 Drive Belt
    Drive Belt
  • 20
    705502134 Sprocket 28 Thooth
    Sprocket 28 Thooth
  • 40
    705502292 Screw-Hex.Flange Din.6921 S.Grip
    Screw-Hex.Flange Din.6921 S.Grip
  • 50
    705500770 Sliding Block
    Sliding Block
  • 60
    250100141 Hex. Elastic Nut M8
    Hex. Elastic Nut M8
  • 70
    705500758 Adjustment Support
    Adjustment Support
  • 80
    234081410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 90
    250000713 Socket Screw DIN.912
    Socket Screw DIN.912
  • 100a
    705501464 Rear Tire
    Rear Tire
  • 100b
    705502089 Metallic Silver - Rear Rim. Package STD
    Metallic Silver - Rear Rim. Package STD
  • 100b
    705501992 Black - Rear Rim. Except Package STD
    Black - Rear Rim. Except Package STD
  • 100c
    705400193 Rim Valve With Cap
    Rim Valve With Cap
  • 100d
    705502106 Self Adhesive Weight
    Self Adhesive Weight
  • 140
    705502093 Spacer
    Spacer
  • 150
    293350115 Ball Bearing
    Ball Bearing
  • 180
    705500736 Damper
    Damper
  • 190
    293300124 O-Ring
    O-Ring
  • 200
    705502015 Silver - Pulley Ass'y, 79 Teeth. Package STD
    Silver - Pulley Ass'y, 79 Teeth. Package STD
  • 200
    705502016 Carbon Black - Pulley Ass'y, 79 Teeth. Except Package STD
    Carbon Black - Pulley Ass'y, 79 Teeth. Except Package STD
  • 230
    293200094 Seal
    Seal
  • 240
    705500853 Spacer
    Spacer
  • 250
    705501602 Spacer
    Spacer
  • 260
    250200163 Flat Washer
    Flat Washer
  • 270
    705501691 Rear Wheel Axle
    Rear Wheel Axle
  • 280
    250100170 Hex. Jam Nut M24
    Hex. Jam Nut M24
  • 290
    250400047 Cotter Pin
    Cotter Pin
  • 330
    705501081 Cap LH
    Cap LH
  • 330
    705501022 Cap RH
    Cap RH
