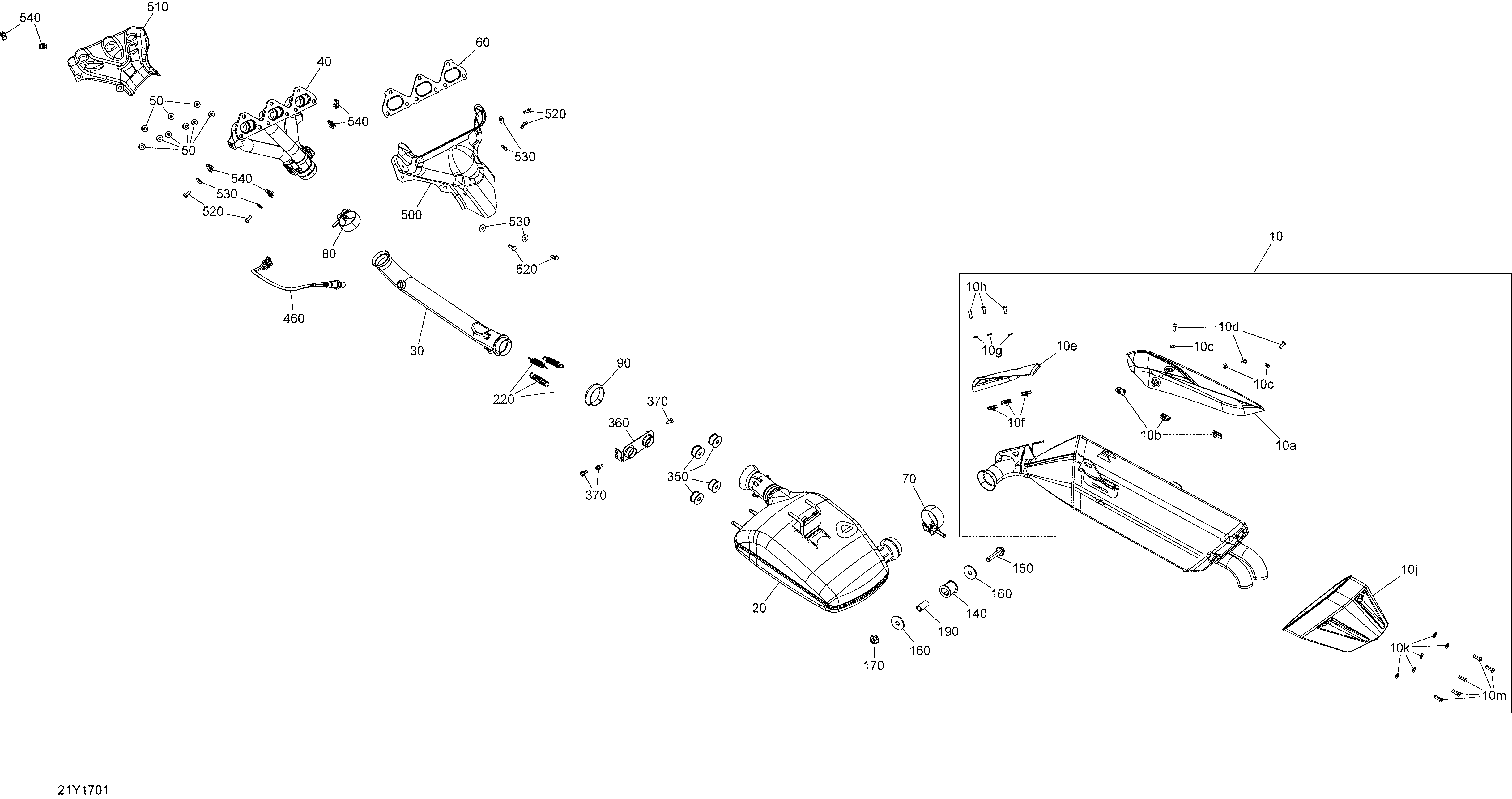

01- Exhaust System - All Models для BRP RT - 2017

  • №
    Артикул
    Название
  • 10>10m
    707601689 Muffler Assy. Package STD. Includes 10 to 10m
    Muffler Assy. Package STD. Includes 10 to 10m
  • 10>10m
    707601690 Muffler Assy. Package S. Includes 10 to 10m
    Muffler Assy. Package S. Includes 10 to 10m
  • 10>10m
    707601691 Muffler Assy. Package LTD. Includes 10 to 10m
    Muffler Assy. Package LTD. Includes 10 to 10m
  • 10a
    707601381 Carbon Black Heat Shield. Package S
    Carbon Black Heat Shield. Package S
  • 10a
    707601382 Crystal Silver Heat Shield. Package STD
    Crystal Silver Heat Shield. Package STD
  • 10a
    707601383 Chrome Heat Shield. Package LTD
    Chrome Heat Shield. Package LTD
  • 10b
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 10c
    234061600 Flat Washer M6, Stainless. Package STD
    Flat Washer M6, Stainless. Package STD
  • 10c
    234061600 Flat Washer M6, Stainless. Package LTD
    Flat Washer M6, Stainless. Package LTD
  • 10c
    234061670 Flat Washer 6 mm. Package S
    Flat Washer 6 mm. Package S
  • 10d
    250000437 Socket Screw, M6 X 16. Package STD
    Socket Screw, M6 X 16. Package STD
  • 10d
    250000437 Socket Screw, M6 X 16. Package LTD
    Socket Screw, M6 X 16. Package LTD
  • 10d
    250000616 Socket Screw, M6 X 16. Package S
    Socket Screw, M6 X 16. Package S
  • 10e
    707601054 Carbon Black Heat Shield. Package S
    Carbon Black Heat Shield. Package S
  • 10e
    707601054 Carbon Black Heat Shield. Package LTD
    Carbon Black Heat Shield. Package LTD
  • 10e
    707601132 Crystal Silver Heat Shield. Package STD
    Crystal Silver Heat Shield. Package STD
  • 10f
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 10g
    234061600 Flat Washer M6, Stainless. Package STD
    Flat Washer M6, Stainless. Package STD
  • 10g
    234061670 Flat Washer 6 mm. Package S
    Flat Washer 6 mm. Package S
  • 10g
    234061670 Flat Washer 6 mm. Package LTD
    Flat Washer 6 mm. Package LTD
  • 10h
    250000437 Socket Screw, M6 X 16. Package STD
    Socket Screw, M6 X 16. Package STD
  • 10h
    250000616 Socket Screw, M6 X 16. Package S
    Socket Screw, M6 X 16. Package S
  • 10h
    250000616 Socket Screw, M6 X 16. Package LTD
    Socket Screw, M6 X 16. Package LTD
  • 10j
    707600867 Crystal Silver Muffler End Cap. Package STD
    Crystal Silver Muffler End Cap. Package STD
  • 10j
    707600950 Chrome Muffler End Cap. Package LTD
    Chrome Muffler End Cap. Package LTD
  • 10j
    707601048 Carbon Black Muffler End Cap. Package S
    Carbon Black Muffler End Cap. Package S
  • 10k
    234061600 Flat Washer M6, Stainless. Package STD
    Flat Washer M6, Stainless. Package STD
  • 10k
    234061600 Flat Washer M6, Stainless. Package LTD
    Flat Washer M6, Stainless. Package LTD
  • 10k
    234061670 Flat Washer 6 mm. Package S
    Flat Washer 6 mm. Package S
  • 10m
    250000437 Socket Screw, M6 X 16. Package STD
    Socket Screw, M6 X 16. Package STD
  • 10m
    250000437 Socket Screw, M6 X 16. Package LTD
    Socket Screw, M6 X 16. Package LTD
  • 10m
    250000616 Socket Screw, M6 X 16. Package S
    Socket Screw, M6 X 16. Package S
  • 20
    707601881 Primary Muffler
    Primary Muffler
  • 30
    707601605 Exhaust Tuned Pipe
    Exhaust Tuned Pipe
  • 40
    707600937 Exhaust Manifold
    Exhaust Manifold
  • 50
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 60
    707601857 Exhaust Seal
    Exhaust Seal
  • 70
    707600980 Exhaust Clamp
    Exhaust Clamp
  • 80
    707600980 Exhaust Clamp
    Exhaust Clamp
  • 90
    514054174 Exhaust Gasket
    Exhaust Gasket
  • 140
    293830162 Anti-Vibration Rubber
    Anti-Vibration Rubber
  • 150
    207505046 Hex. Flanged Screw M10 X 50, Scotch Grip
    Hex. Flanged Screw M10 X 50, Scotch Grip
  • 160
    506150000 Washer 10 mm
    Washer 10 mm
  • 170
    233101600 Hex. Flanged Nut M10
    Hex. Flanged Nut M10
  • 190
    503189282 Bushing
    Bushing
  • 220
    415107100 Spring
    Spring
  • 350
    707600702 Anti-Vibration Rubber
    Anti-Vibration Rubber
  • 360
    707600661 Front Bracket
    Front Bracket
  • 370
    210261250 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 460
    707600872 Oxygen Sensor
    Oxygen Sensor
  • 500
    707601028 Inner Heat Deflector
    Inner Heat Deflector
  • 510
    707601504 External Heat Deflector
    External Heat Deflector
  • 520
    207361660 Hex. Screw M6 X 16, Scotch Grip
    Hex. Screw M6 X 16, Scotch Grip
  • 530
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 540
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
