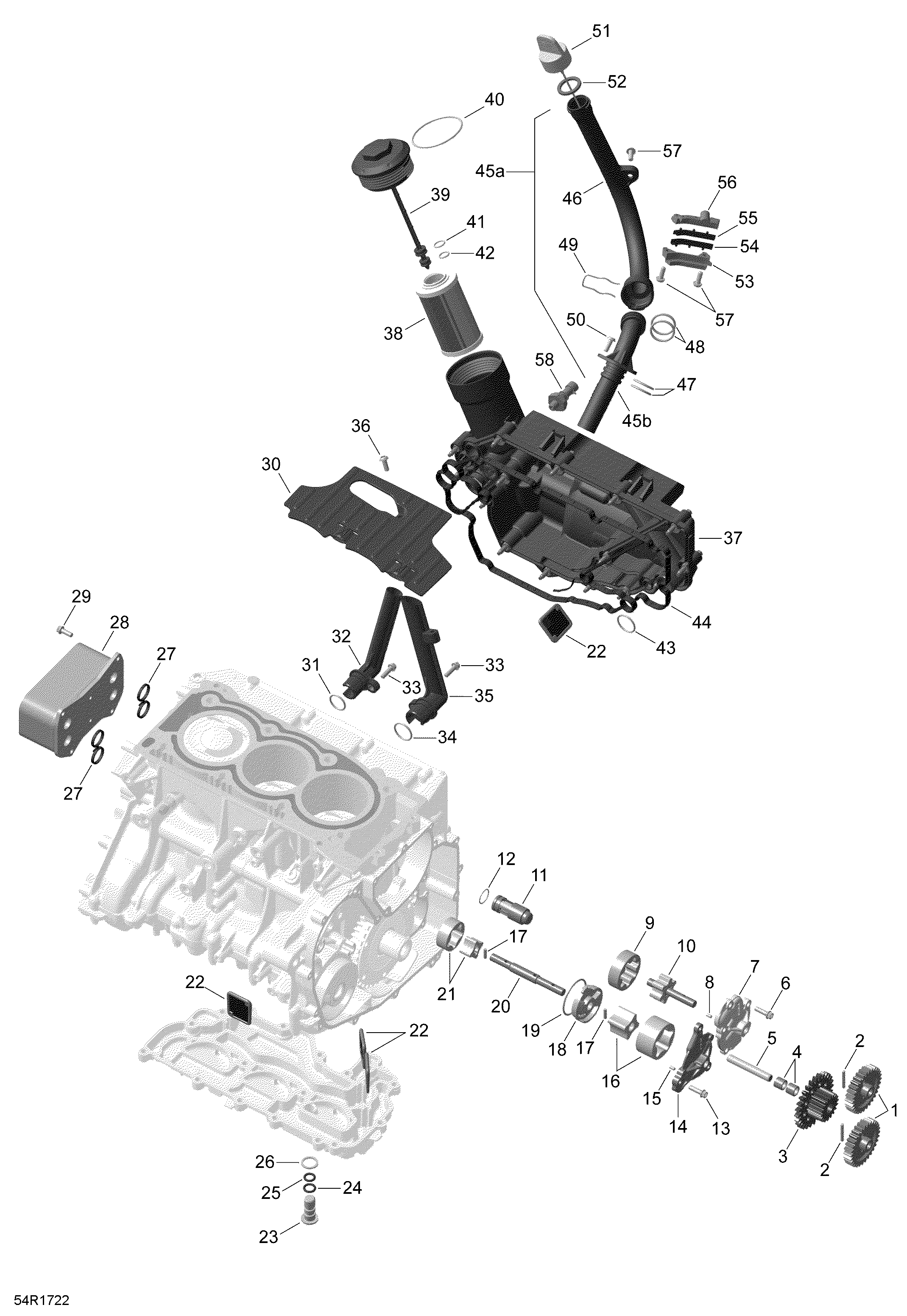

01- Engine Lubrication - All Models для BRP RT - 2017

  • №
    Артикул
    Название
  • 1
    420435170 Oil Pump Gear 30 Teeth
    Oil Pump Gear 30 Teeth
  • 2
    420232431 Needle Pin
    Needle Pin
  • 3
    420435165 Intermediate Gear 28\18 Teeth Ass'y. Includes 3 to 4
    Intermediate Gear 28\18 Teeth Ass'y. Includes 3 to 4
  • 4
    420232031 Needle Bushing
    Needle Bushing
  • 5
    420229472 Pin Cylindrical
    Pin Cylindrical
  • 6
    420440207 Flanged Torx Screw M6 X 20
    Flanged Torx Screw M6 X 20
  • 7
    420210220 Oil Pump Cover
    Oil Pump Cover
  • 8
    420929075 Needle Pin
    Needle Pin
  • 9
    420956675 Oil Pump Rotor 16 mm
    Oil Pump Rotor 16 mm
  • 10
    420637077 Shaft And Oil Pump Rotor
    Shaft And Oil Pump Rotor
  • 11
    420456140 Pression Regulating Valve Ass'y. Include 11 to 12 Built Before Aug 1rst 2016
    Pression Regulating Valve Ass'y. Include 11 to 12 Built Before Aug 1rst 2016
  • 11
    420456141 Pression Regulating Valve Ass'y. Include 11 to 12 Built Aug 1rst 2016 And up
    Pression Regulating Valve Ass'y. Include 11 to 12 Built Aug 1rst 2016 And up
  • 12
    420230405 O-Ring
    O-Ring
  • 13
    420440207 Flanged Torx Screw M6 X 20
    Flanged Torx Screw M6 X 20
  • 14
    420210260 Oil Pump Cover
    Oil Pump Cover
  • 15
    420929075 Needle Pin
    Needle Pin
  • 16
    420256831 Oil Pump Rotor
    Oil Pump Rotor
  • 17
    420232731 Needle Pin
    Needle Pin
  • 18
    420210770 Oil Pump Cover
    Oil Pump Cover
  • 19
    420631830 O-Ring
    O-Ring
  • 20
    420637070 Oil Pump Shaft
    Oil Pump Shaft
  • 21
    420956278 Oil Pump Rotor
    Oil Pump Rotor
  • 22
    420656885 Oil Sieve
    Oil Sieve
  • 23
    420441681 Screw M14 X 1.5
    Screw M14 X 1.5
  • 24
    420250460 O-Ring
    O-Ring
  • 25
    420430115 O-Ring
    O-Ring
  • 26
    420430623 Gasket Ring
    Gasket Ring
  • 27
    420431711 Gasket
    Gasket
  • 28
    420888857 Oil Radiator
    Oil Radiator
  • 29
    420440162 Flanged Torx Screw M6 X 16
    Flanged Torx Screw M6 X 16
  • 30
    420201450 Baffle
    Baffle
  • 31
    420430372 O-Ring
    O-Ring
  • 32
    420210710 Vent Hose
    Vent Hose
  • 33
    420440207 Flanged Torx Screw M6 X 20
    Flanged Torx Screw M6 X 20
  • 34
    420430783 O-Ring
    O-Ring
  • 35
    420224810 Vent Hose
    Vent Hose
  • 36
    420641588 Flanged Torx Screw M6 X 16
    Flanged Torx Screw M6 X 16
  • 37
    420893282 Oil Tank Cover Ass'y. Includes 37 to 44
    Oil Tank Cover Ass'y. Includes 37 to 44
  • 38
    420956744 Oil Filter
    Oil Filter
  • 39
    420210885 Oil Filter Cover Ass'y. Includes 39 to 42
    Oil Filter Cover Ass'y. Includes 39 to 42
  • 40
    420850482 O-Ring
    O-Ring
  • 41
    420950812 O-Ring
    O-Ring
  • 42
    420650927 O-Ring
    O-Ring
  • 43
    420931636 O-Ring
    O-Ring
  • 44
    420431990 Gasket
    Gasket
  • 45a
    420656870 Oil Filler Tube Ass'y. Includes 45a to 49. Built Before Aug 1rst 2016
    Oil Filler Tube Ass'y. Includes 45a to 49. Built Before Aug 1rst 2016
  • 45a
    420456510 Oil Filler Tube Ass'y. Includes 45a to 49. Built Aug 1rst 2016 And Up
    Oil Filler Tube Ass'y. Includes 45a to 49. Built Aug 1rst 2016 And Up
  • 47
    420631876 O-Ring
    O-Ring
  • 48
    420430140 O-Ring
    O-Ring
  • 49
    420939343 Spring Clip
    Spring Clip
  • 50
    420641588 Flanged Torx Screw M6 X 16
    Flanged Torx Screw M6 X 16
  • 51
    420656980 Oil Gauge Ass'y. Includes 51 to 52
    Oil Gauge Ass'y. Includes 51 to 52
  • 52
    420431790 Gasket Ring
    Gasket Ring
  • 53
    420201180 Silent Block
    Silent Block
  • 54
    420256917 Oil Pressure Switch
    Oil Pressure Switch
