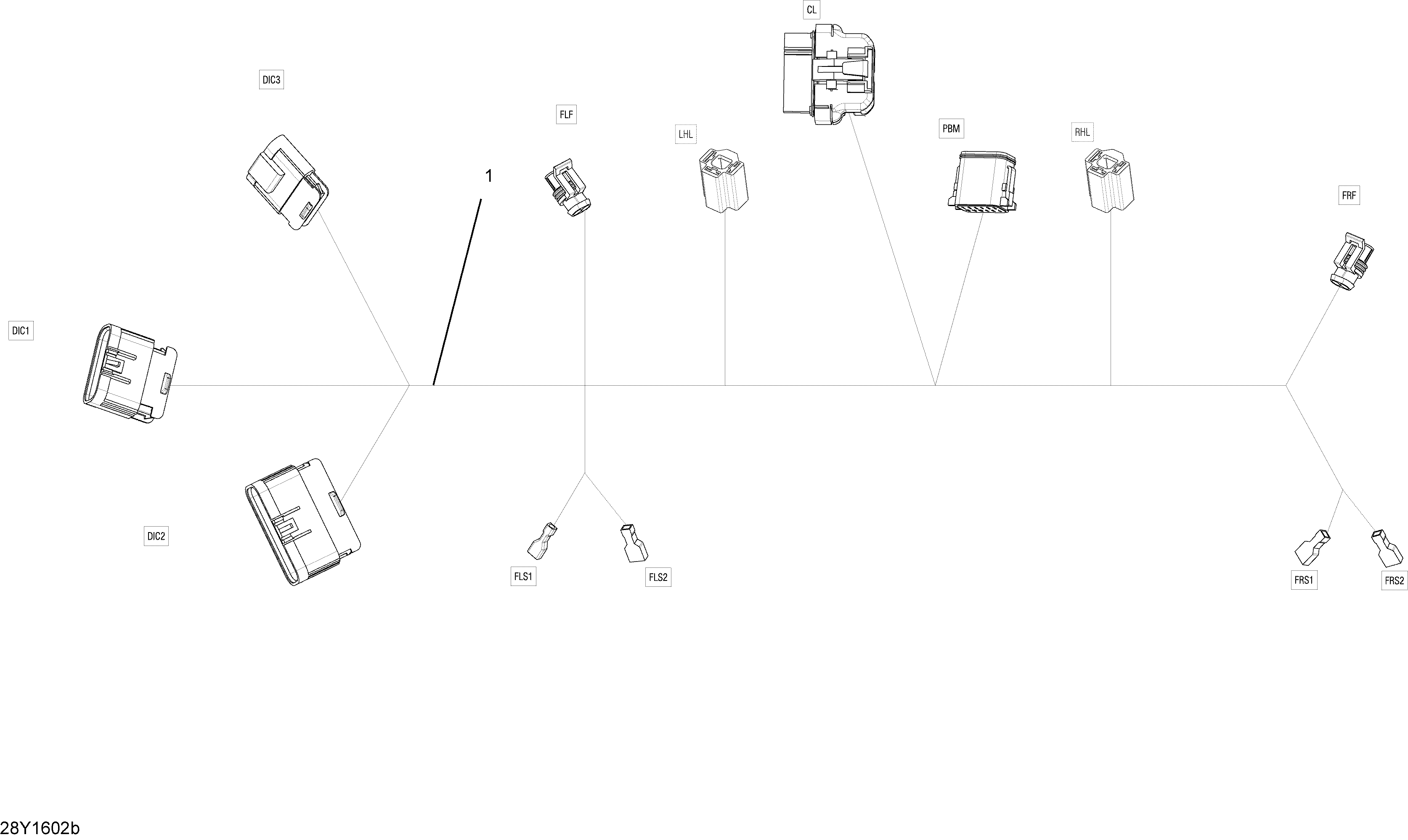

10- Electrical Harness - Console для BRP ST - 2016
-
№АртикулНазвание
-
1710004754 Dashboard HarnessDashboard Harness
-
CL515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CL515175802 Retainer BlockRetainer Block
-
CL515175812 PlugPlug
-
CL710000399 Female HousingFemale Housing
-
CL515175803 Wire SealWire Seal
-
CL515175806 Female TerminalFemale Terminal
-
CL710001131 Female TerminalFemale Terminal
-
DIC1710001227 HousingHousing
-
DIC1710001225 CapCap
-
DIC1710001233 SealSeal
-
DIC1710001224 TerminalTerminal
-
DIC2710001856 HousingHousing
-
DIC2710002075 PlugPlug
-
DIC2710001817 Protector CapProtector Cap
-
DIC2278002186 Wire SealWire Seal
-
DIC2710001858 SealSeal
-
DIC2710001857 TerminalTerminal
-
DIC2710001859 TerminalTerminal
-
DIC3710001231 HousingHousing
-
DIC3710001332 Seal WireSeal Wire
-
DIC3710001223 TerminalTerminal
-
FLF409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FLF515176621 Wire SealWire Seal
-
FLF710001340 Female TerminalFemale Terminal
-
FLS1710000082 Female TerminalFemale Terminal
-
FLS2409010700 Female TerminalFemale Terminal
-
FRF409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FRF515176621 Wire SealWire Seal
-
FRF710001340 Female TerminalFemale Terminal
-
FRS1710000082 Female TerminalFemale Terminal
-
FRS2409010700 Female TerminalFemale Terminal
-
LHL515176908 Female HousingFemale Housing
-
LHL515176909 TerminalTerminal
-
PBM278002377 Female Terminal Housing, 12 CircuitsFemale Terminal Housing, 12 Circuits
-
PBM515175679 Female Lock, 12 CircuitsFemale Lock, 12 Circuits
-
PBM293000052 Sealing CapSealing Cap
-
PBM278000632 Female TerminalFemale Terminal
-
PBM278001665 Female TerminalFemale Terminal
-
RHL515176908 Female HousingFemale Housing
-
RHL515176909 TerminalTerminal
