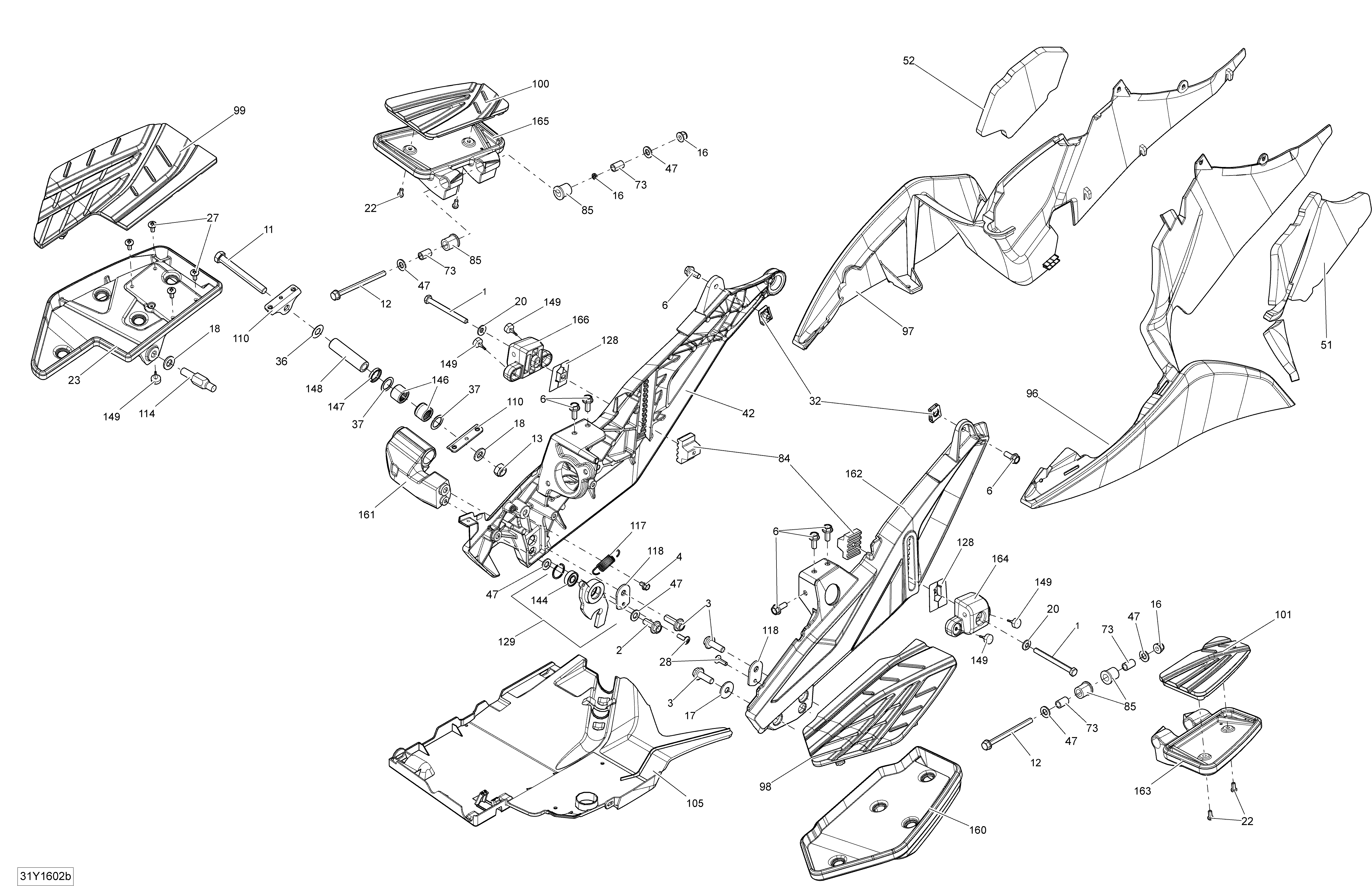

09- Body And Accessories - Footrest для BRP ST - 2016
-
№АртикулНазвание
-
1207189060 Hex. Screw M8 x 90Hex. Screw M8 x 90
-
2207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
3207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
4207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
6207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
11230020586 Hexagonal Screw M12 X 105Hexagonal Screw M12 X 105
-
12230681034 Hex. Flanged Screw M8 X 110Hex. Flanged Screw M8 X 110
-
13232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
16233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
18234021430 Flat WasherFlat Washer
-
20234281704 Spring Washer M8Spring Washer M8
-
22250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
23705005334 RH Front Footrest Ass'yRH Front Footrest Ass'y
-
27250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
28250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
32250100069 Panet Nut M8 X 1.25Panet Nut M8 X 1.25
-
36250200086 Flat WasherFlat Washer
-
37250200136 Plastic Washer 20MMPlastic Washer 20MM
-
40293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
42705007976 Black RH Footrest SupportBlack RH Footrest Support
-
47503183800 WasherWasher
-
51518327010 LH Rocker Panel FoamLH Rocker Panel Foam
-
52518327011 RH Rocker Panel FoamRH Rocker Panel Foam
-
73705002153 BushingBushing
-
84705003013 Adjuster BlockAdjuster Block
-
85705003018 Rubber BushingRubber Bushing
-
96705005266 LH Rocker PanelLH Rocker Panel
-
97705005267 RH Rocker PanelRH Rocker Panel
-
98705005329 LH Front Rubber PadLH Front Rubber Pad
-
99705005333 RH Front Rubber PadRH Front Rubber Pad
-
100705005350 RH Rear Rubber PadRH Rear Rubber Pad
-
101705005351 LH Rear Rubber PadLH Rear Rubber Pad
-
105705005413 LH Deflector PannelLH Deflector Pannel
-
110705005861 Pivot BracketPivot Bracket
-
114705006428 Latch Pin M12 X 30Latch Pin M12 X 30
-
117705006533 SpringSpring
-
118705006557 Retaining PlateRetaining Plate
-
128705007473 Lock PlateLock Plate
-
129705008439 Latch Ass'yLatch Ass'y
-
144705600458 BearingBearing
-
146706000447 BearingBearing
-
147706000448 SealSeal
-
148706000731 BushingBushing
-
149708000759 Rubber StopperRubber Stopper
-
160705005330 LH Front Footrest Ass'yLH Front Footrest Ass'y
-
161705005723 Pivot SupportPivot Support
-
162705006796 LH Rear Foot SupportLH Rear Foot Support
-
163705006798 LH Rear FootrestLH Rear Footrest
-
164705006799 Black LH Sliding BlockBlack LH Sliding Block
-
165705006800 Black RH Footrest SupportBlack RH Footrest Support
-
166705006801 Black RH Sliding BlockBlack RH Sliding Block
