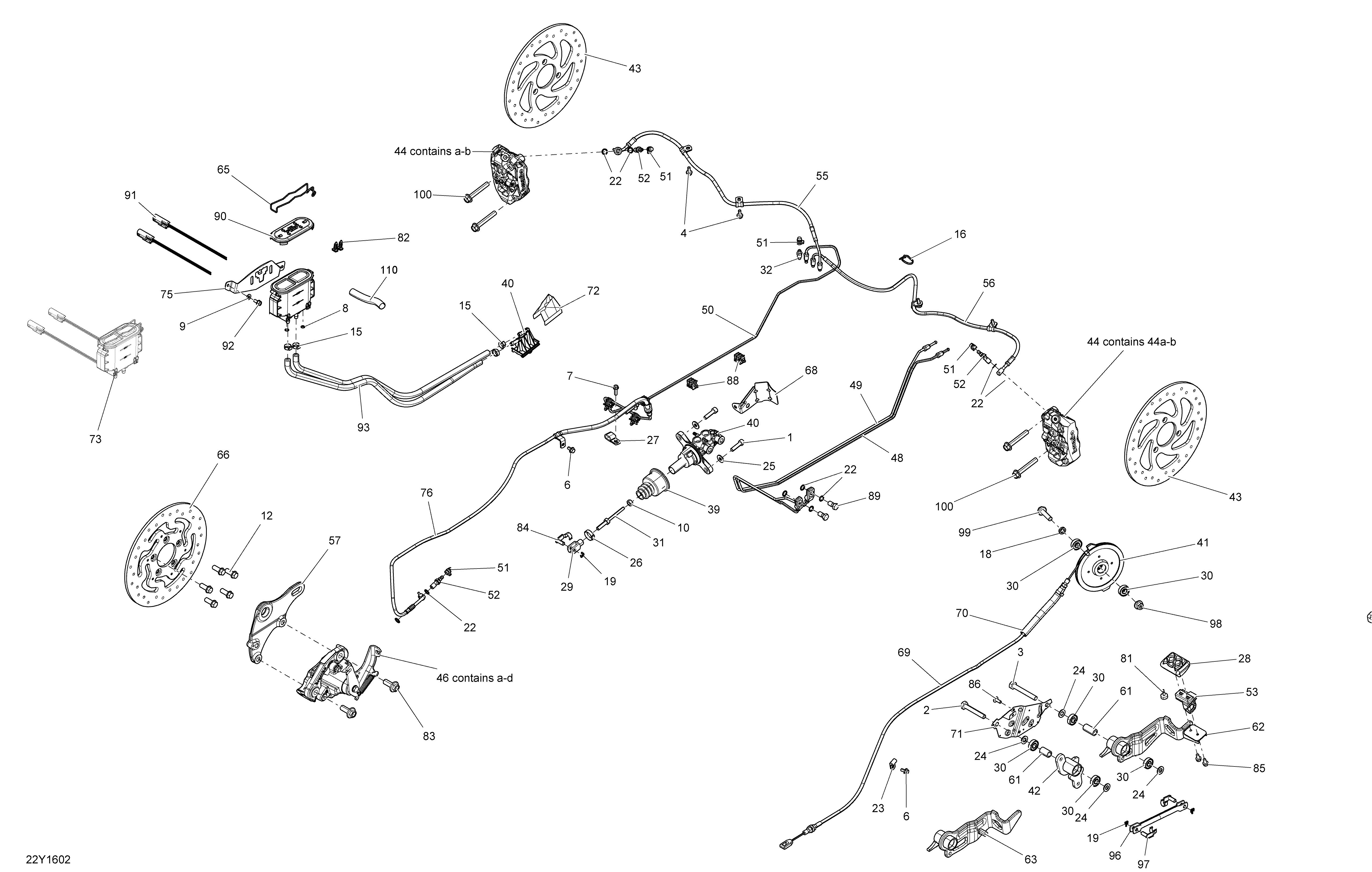

06- Hydraulic Brake для BRP ST - 2016
-
№АртикулНазвание
-
1205583087 Allen Screw M8 X 30Allen Screw M8 X 30
-
2207206534 Hex. Screw M10 X 65, Scotch GripHex. Screw M10 X 65, Scotch Grip
-
3207207544 Hexagonal Screrw S.GRIP M10 X 75Hexagonal Screrw S.GRIP M10 X 75
-
4207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
6207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
8211100002 Push NutPush Nut
-
9224061121 Flat WasherFlat Washer
-
10232081414 Hex. Nut M8Hex. Nut M8
-
12250000562 Hex Flange Screw M10 X 25Hex Flange Screw M10 X 25
-
15293650047 Crimp ClampCrimp Clamp
-
16293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
18293900087 BushingBushing
-
19371800700 Cotter PinCotter Pin
-
22414920600 WasherWasher
-
23415052400 AttacheAttache
-
24503183800 WasherWasher
-
25506151245 WasherWasher
-
26509000442 Oetiker Gear ClampOetiker Gear Clamp
-
27515175507 ClipClip
-
28705004933 Rubber PadRubber Pad
-
29705600100 YokeYoke
-
30705600458 BearingBearing
-
31705600468 Piston RodPiston Rod
-
32705600502 Bleeder ScrewBleeder Screw
-
39705600716 BellowBellow
-
40705600722 Tandem Cylinder MasterTandem Cylinder Master
-
41705600768 Front Pulley CableFront Pulley Cable
-
42705600855 Rocker ArmRocker Arm
-
43705600955 Front Brake DiskFront Brake Disk
-
44705600987 LH Front CaliperLH Front Caliper
-
44a219800237 Brake Pad KitBrake Pad Kit
-
44b219800238 Spring/Pin/Clip KitSpring/Pin/Clip Kit
-
46705600989 Rear CaliperRear Caliper
-
46a219800239 Brake Pad KitBrake Pad Kit
-
46b219800240 Spring/Pin/Clip KitSpring/Pin/Clip Kit
-
46c219800241 Rear Cable Support KitRear Cable Support Kit
-
46d219800242 Rear Dust CoverRear Dust Cover
-
48705601157 Tandem Rigid TubeTandem Rigid Tube
-
49705601158 Tandem Rigid TubeTandem Rigid Tube
-
50705601159 Rear Brake Rigid TubeRear Brake Rigid Tube
-
51705601190 Bleeder Bolt CapBleeder Bolt Cap
-
52705601201 Banjo Bolt/ BleederBanjo Bolt/ Bleeder
-
53705601217 Pedal GuardPedal Guard
-
55
-
56705601254 RH Front HoseRH Front Hose
-
57705601262 Rear Caliper SupportRear Caliper Support
-
61705600541 BushingBushing
-
61a293300191 O-RingO-Ring
-
62705601285 Brake Pedal, PaintedBrake Pedal, Painted
-
63705601287 Brake Pedal, PaintedBrake Pedal, Painted
-
65705601294 Spindle LockSpindle Lock
-
66705601300 Rear Brake DiskRear Brake Disk
-
68705601333 Heat DeflectorHeat Deflector
-
69705601335 Brake CableBrake Cable
-
70705601341 Heat ShieldHeat Shield
-
71705601346 Tab LockTab Lock
-
72705601368 Heat ShieldHeat Shield
-
73705601473 Oil ReservoirOil Reservoir
-
75705601485 BracketBracket
-
76705601501 Brake LineBrake Line
-
81708000759 Rubber StopperRubber Stopper
-
82710002033 HolderHolder
-
83207523056 Hex. Flanged Screw M12 X 30, Scotch GripHex. Flanged Screw M12 X 30, Scotch Grip
-
84250400064 PinPin
-
85210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
86250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
88705601513 Rigid Tube SupportRigid Tube Support
-
89507032551 Banjo BoltBanjo Bolt
-
90219800350 Diaphragm Cover AssemblyDiaphragm Cover Assembly
-
91705601073 Oil Level SensorOil Level Sensor
-
92210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
93415129615 Hose 8MMHose 8MM
-
96705600959 Connecting RodConnecting Rod
-
97250400064 PinPin
-
98233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
99207604054 Hex. Flanged Screw M10 X 40Hex. Flanged Screw M10 X 40
-
100207506556 Hex Flanged Screw M10 X 65Hex Flanged Screw M10 X 65
-
110706002633 HoseHose
