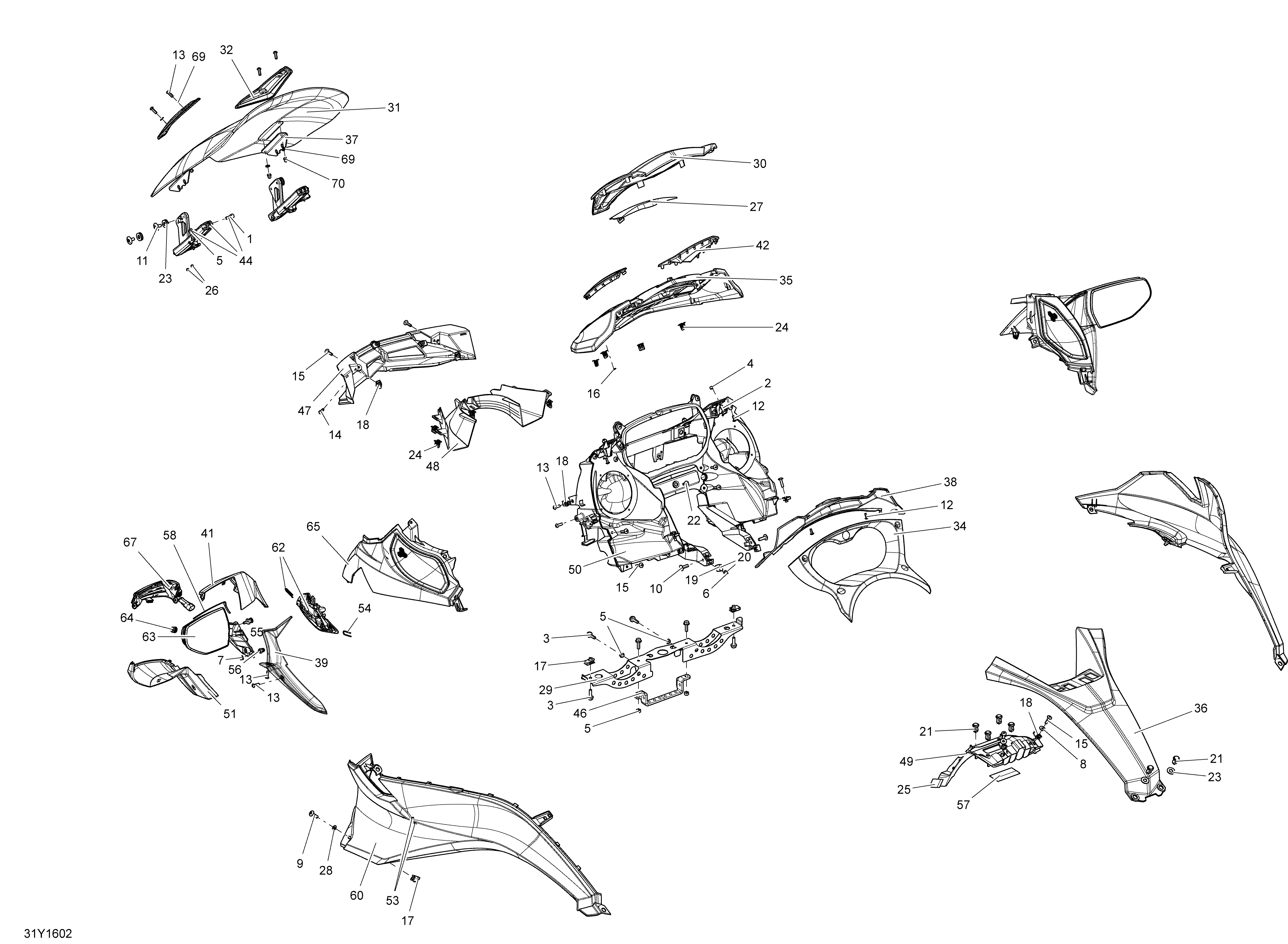

09- Body And Accessories - Console для BRP ST - 2016

  • №
    Артикул
    Название
  • 1
    205061644 Socket Head Screw M6 X 16
    Socket Head Screw M6 X 16
  • 2
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 3
    207562044 Flanged Screw M6 X 20, Scotch Grip
    Flanged Screw M6 X 20, Scotch Grip
  • 4
    232061414 Hex. Nut M6
    Hex. Nut M6
  • 5
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 6
    232561600 Hex. Elastic Stop Nut M6
    Hex. Elastic Stop Nut M6
  • 8
    234052670 Inox. Flat Washer M5
    Inox. Flat Washer M5
  • 9
    250000350 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 10
    250000488 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 11
    250000551 Torx Screw M6 X 13.5
    Torx Screw M6 X 13.5
  • 12
    250000577 Torx Truss K40 X 12
    Torx Truss K40 X 12
  • 13
    250000578 Torx Truss Screw M5 X 16
    Torx Truss Screw M5 X 16
  • 14
    250000661 Socket Screw M5 X 16 F/
    Socket Screw M5 X 16 F/
  • 15
    250000724 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 16
    250100034 Push Nut
    Push Nut
  • 17
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 18
    250100176 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 19
    269500252 M6 Nut Housing Ass'y
    M6 Nut Housing Ass'y
  • 20
    269500725 Nut Housing Ass'y
    Nut Housing Ass'y
  • 21
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 22
    293750044 Tie Rap Mount
    Tie Rap Mount
  • 23
    293830164 Rubber Washer
    Rubber Washer
  • 23
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 24
    517302785 Clip
    Clip
  • 25
    518327579 Lateral Console Foam
    Lateral Console Foam
  • 26
    705001705 Ball
    Ball
  • 27
    705009360 Guide Chart
    Guide Chart
  • 28
    705003207 Plastic Washer
    Plastic Washer
  • 29
    705004950 Cross Support Console
    Cross Support Console
  • 30
    705004954 Upper Console
    Upper Console
  • 31
    705004960 Windshield
    Windshield
  • 32
    705004961 LH Windshield Moulding
    LH Windshield Moulding
  • 32
    705004962 RH Windshield Moulding
    RH Windshield Moulding
  • 34
    705007460 Moulding Dash Board
    Moulding Dash Board
  • 35
    705006842 Carbon Black Front Console
    Carbon Black Front Console
  • 36
    705008858 Steel Black Met Center Pannel
    Steel Black Met Center Pannel
  • 37
    705004982 Windshield Support
    Windshield Support
  • 38
    705005320 Upper Console Moulding
    Upper Console Moulding
  • 39
    705005324 RH Upper Air Deflector
    RH Upper Air Deflector
  • 39
    705005323 LH Upper Air Deflector
    LH Upper Air Deflector
  • 41
    705006914 Black Carbon LH Mirror Cap
    Black Carbon LH Mirror Cap
  • 41
    705006915 Black Carbon RH Mirror Cap
    Black Carbon RH Mirror Cap
  • 42
    705005412 RH Slider Protector
    RH Slider Protector
  • 42
    705005411 LH Slider Protector
    LH Slider Protector
  • 44
    705005461 RH Rail Ass'y
    RH Rail Ass'y
  • 44
    705005460 LH Rail Ass'y. includes BOM 26
    LH Rail Ass'y. includes BOM 26
  • 46
    705005476 Console Support Bracket
    Console Support Bracket
  • 47
    705005582 Headlamp Moulding
    Headlamp Moulding
  • 48
    705005586 Center Air Intake
    Center Air Intake
  • 49
    705005739 Lateral Console Support
    Lateral Console Support
  • 50
    705006016 Console Support Ass'y
    Console Support Ass'y
  • 51
    705006480 Black Deep RH Lower Shell. Model ST with Color Steel Black
    Black Deep RH Lower Shell. Model ST with Color Steel Black
  • 51
    705006479 Black Deep LH Lower Shell. Model ST with Color Steel Black
    Black Deep LH Lower Shell. Model ST with Color Steel Black
  • 51
    705009962 Red Lower Cover LH. Model ST with Color Magma Red
    Red Lower Cover LH. Model ST with Color Magma Red
  • 51
    705009963 Red Lower Cover RH. Model ST with Color Magma Red
    Red Lower Cover RH. Model ST with Color Magma Red
  • 53
    705006633 Stopper
    Stopper
  • 54
    705006661 Spring
    Spring
  • 55
    705006733 Flat Head Stud M5
    Flat Head Stud M5
  • 56
    705006734 Round Head Stud M5
    Round Head Stud M5
  • 57
    705007123 Foam Protector
    Foam Protector
  • 58
    296000392 Seal
    Seal
  • 60
    705007665 Steel Black LH Side Console. Model ST with Color Steel Black
    Steel Black LH Side Console. Model ST with Color Steel Black
  • 60
    705007668 Steel Black RH Side Console. Model ST with Color Steel Black
    Steel Black RH Side Console. Model ST with Color Steel Black
  • 60
    705009965 Red RH. Console. Model ST with Color Magma Red
    Red RH. Console. Model ST with Color Magma Red
  • 60
    705009966 Red LH. Console. Model ST with Color Magma Red
    Red LH. Console. Model ST with Color Magma Red
  • 62
    705008210 RH Plate Support Ass'y
    RH Plate Support Ass'y
  • 62
    705008211 LH Plate Support Ass'y
    LH Plate Support Ass'y
  • 63
    705008660 RH Mirror Ass'y. includes: 67, 55, 56, 64, 6, 12
    RH Mirror Ass'y. includes: 67, 55, 56, 64, 6, 12
  • 63
    705008659 LH Mirror Ass'y. includes: 67, 55, 56, 64, 6, 12
    LH Mirror Ass'y. includes: 67, 55, 56, 64, 6, 12
  • 64
    705010625 Spring
    Spring
  • 65
    705009561 Dashboard
    Dashboard
  • 65
    705009560 Dashboard
    Dashboard
  • 67
    710004029 LH Flasher
    LH Flasher
  • 67
    710004030 RH Flasher
    RH Flasher
  • 69
    234051670 Flat Washer M5
    Flat Washer M5
  • 70
    250100152 Cap Nut M5
    Cap Nut M5
