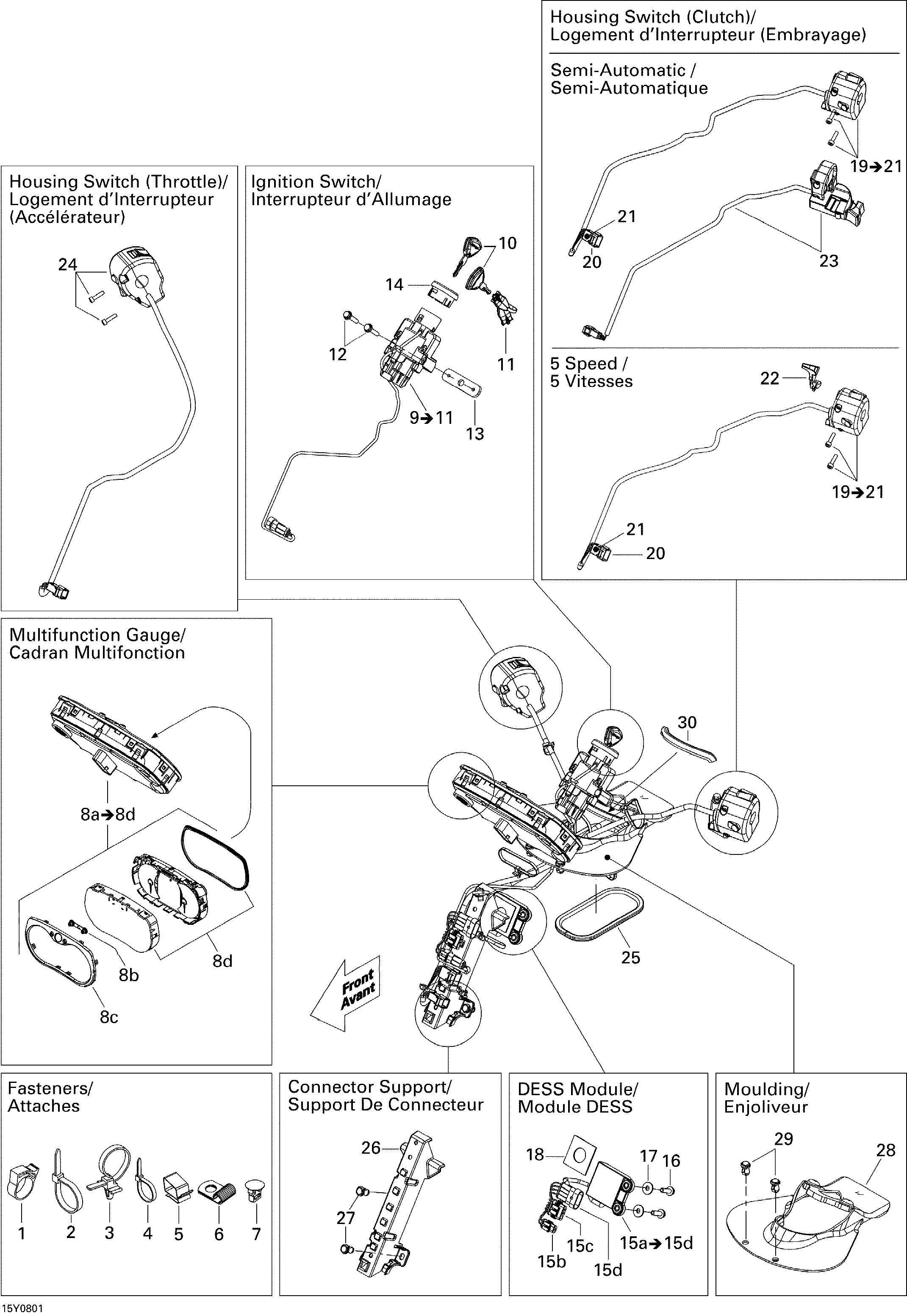

10- Electrical Accessories, Steering SA для BRP Spyder GS 990 Semi-Automatic - 2008

  • №
    Артикул
    Название
  • 1
    293650082 Clamp
    Clamp
  • 2
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 3
    293750009 Tie-Rap 173 mm
    Tie-Rap 173 mm
  • 4
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 5
    414227300 Clip
    Clip
  • 6
    415052400 Attache
    Attache
  • 7
    293750044 Tie Rap Mount
    Tie Rap Mount
  • 8a
    710001514 Speedometer. 5 Speed, Includes 8a to 8d
    Speedometer. 5 Speed, Includes 8a to 8d
  • 8a
    710001516 Speedometer. Semi-Automatic, Includes 8a to 8d
    Speedometer. Semi-Automatic, Includes 8a to 8d
  • 8b
    415129355 Speedometer Button
    Speedometer Button
  • 8c
    415129348 Gauge Ring
    Gauge Ring
  • 8d
    415129349 Lens
    Lens
  • 9
    219800070 Ignition Switch & DESS Module Kit. Includes 9 to 11, 15a to 15d
    Ignition Switch & DESS Module Kit. Includes 9 to 11, 15a to 15d
  • 10
    710001211 Key
    Key
  • 11
    710001102 Cover
    Cover
  • 12
    207563044 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 13
    710001365 Switch Support
    Switch Support
  • 14
    710001194 Switch Cover
    Switch Cover
  • 15a
    219800070 Ignition Switch & DESS Module Kit. Includes 9 to 11, 15a to 15d
    Ignition Switch & DESS Module Kit. Includes 9 to 11, 15a to 15d
  • 15b
    409209500 Female Housing, 2 Circuits
    Female Housing, 2 Circuits
  • 15c
    409209700 Female Housing, 4 Circuits
    Female Housing, 4 Circuits
  • 15d
    710000576 Housing, 4circuits
    Housing, 4circuits
  • 16
    210262080 Hex. Forming Screw M6 X 20
    Hex. Forming Screw M6 X 20
  • 17
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 18
    293830091 Rubber Bumper
    Rubber Bumper
  • 19
    515176197 Housing Switch. Includes 19 to 21
    Housing Switch. Includes 19 to 21
  • 20
    710001148 Housing
    Housing
  • 21
    710001149 Lock
    Lock
  • 23
    515176198 SE5 Shift Switch Housing. Semi-Automatic
    SE5 Shift Switch Housing. Semi-Automatic
  • 24
    710001488 Housing Switch
    Housing Switch
  • 25
    271001530 Trim
    Trim
  • 26
    710001328 Connector Support
    Connector Support
  • 27
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 28
    710001342 Moulding
    Moulding
  • 29
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 30
    271001530 Trim
    Trim
