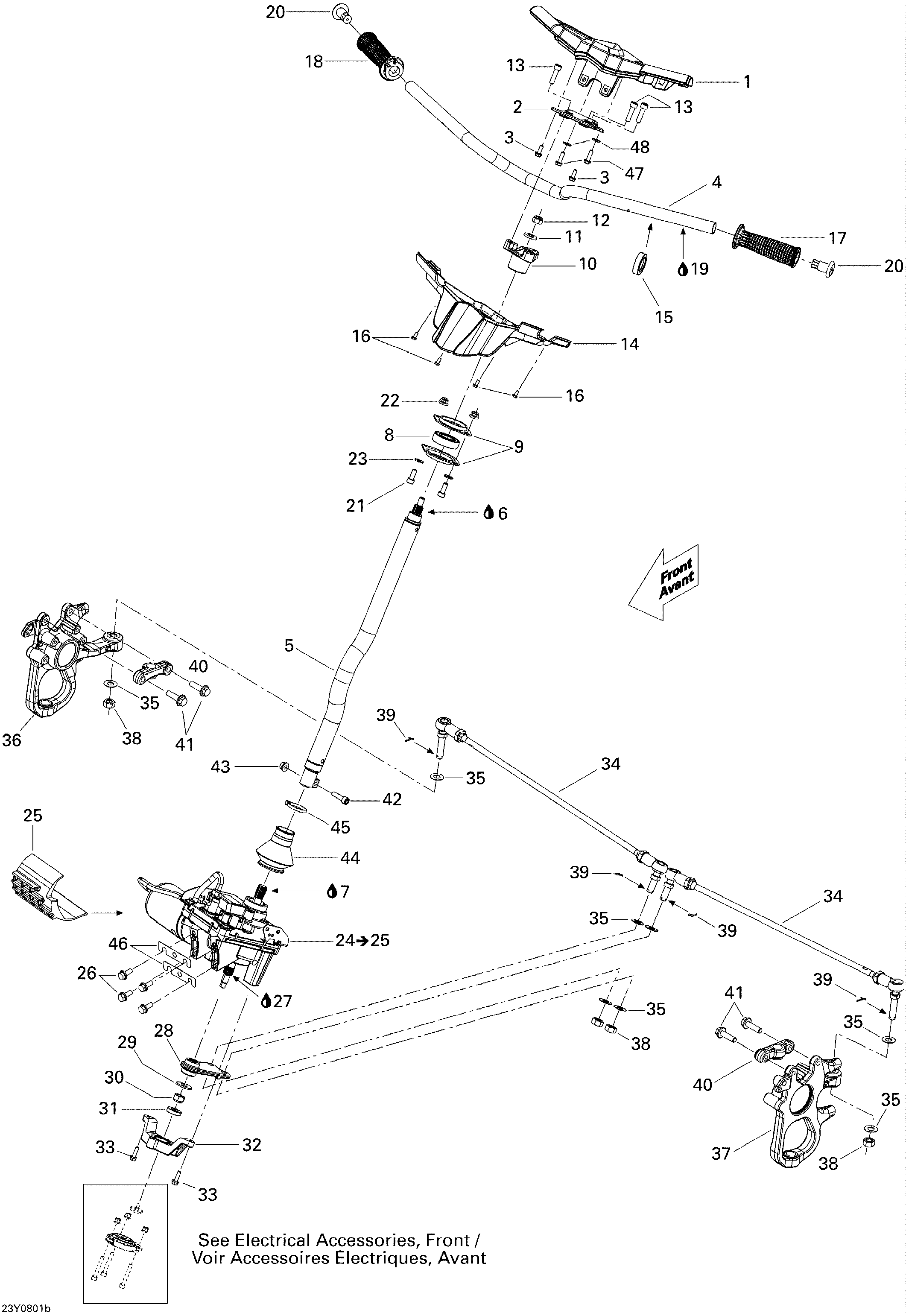

07- Steering 991 SA для BRP Spyder GS 990 Semi-Automatic - 2008
-
№АртикулНазвание
-
1709400618 Handle Bar CoverHandle Bar Cover
-
2709400481 Steering ClampSteering Clamp
-
3210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4709400483 Handle BarHandle Bar
-
5506151972 Main Tube PaintMain Tube Paint
-
6293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
7293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
8293350058 Ball BearingBall Bearing
-
9709400532 FlangeFlange
-
10709400478 Steering ClampSteering Clamp
-
11503190439 WasherWasher
-
12233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
13205583034 Socket Head Screw, Scotch GripSocket Head Screw, Scotch Grip
-
14709400614 Plastic InsertPlastic Insert
-
15709400615 Handle RingHandle Ring
-
16210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
17709400516 Handle GripHandle Grip
-
18709400517 Throttle HandleThrottle Handle
-
19293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
20709400189 End PieceEnd Piece
-
21205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
22233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
23234081430 Flat Washer M8Flat Washer M8
-
24709400544 Power Steering. Includes 24 to 25Power Steering. Includes 24 to 25
-
24a219800191 DPS Hardware Kit. Not ShownDPS Hardware Kit. Not Shown
-
25709400551 ProtectorProtector
-
26207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
27293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
28709400469 ArmArm
-
29250200086 Flat WasherFlat Washer
-
30250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
31293200113 Seal RingSeal Ring
-
32709400455 Sensor SupportSensor Support
-
33207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
34709400557 Tie Rod Ass'yTie Rod Ass'y
-
35250200086 Flat WasherFlat Washer
-
36505071711 Knuckle RHKnuckle RH
-
37505071709 Knuckle LHKnuckle LH
-
38250100099 Nut M12Nut M12
-
39250400034 Cotter PinCotter Pin
-
40706200528 Upper SupportUpper Support
-
41207503534 Hex. Flange Screw, Scotch GripHex. Flange Screw, Scotch Grip
-
42207583086 Hex. Flange Screw M8 X 30, Scotch GripHex. Flange Screw M8 X 30, Scotch Grip
-
43233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
44709400454 BellowsBellows
-
45414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
46709400572 ShimShim
-
47210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
48234081410 Flat Washer 8 mmFlat Washer 8 mm
