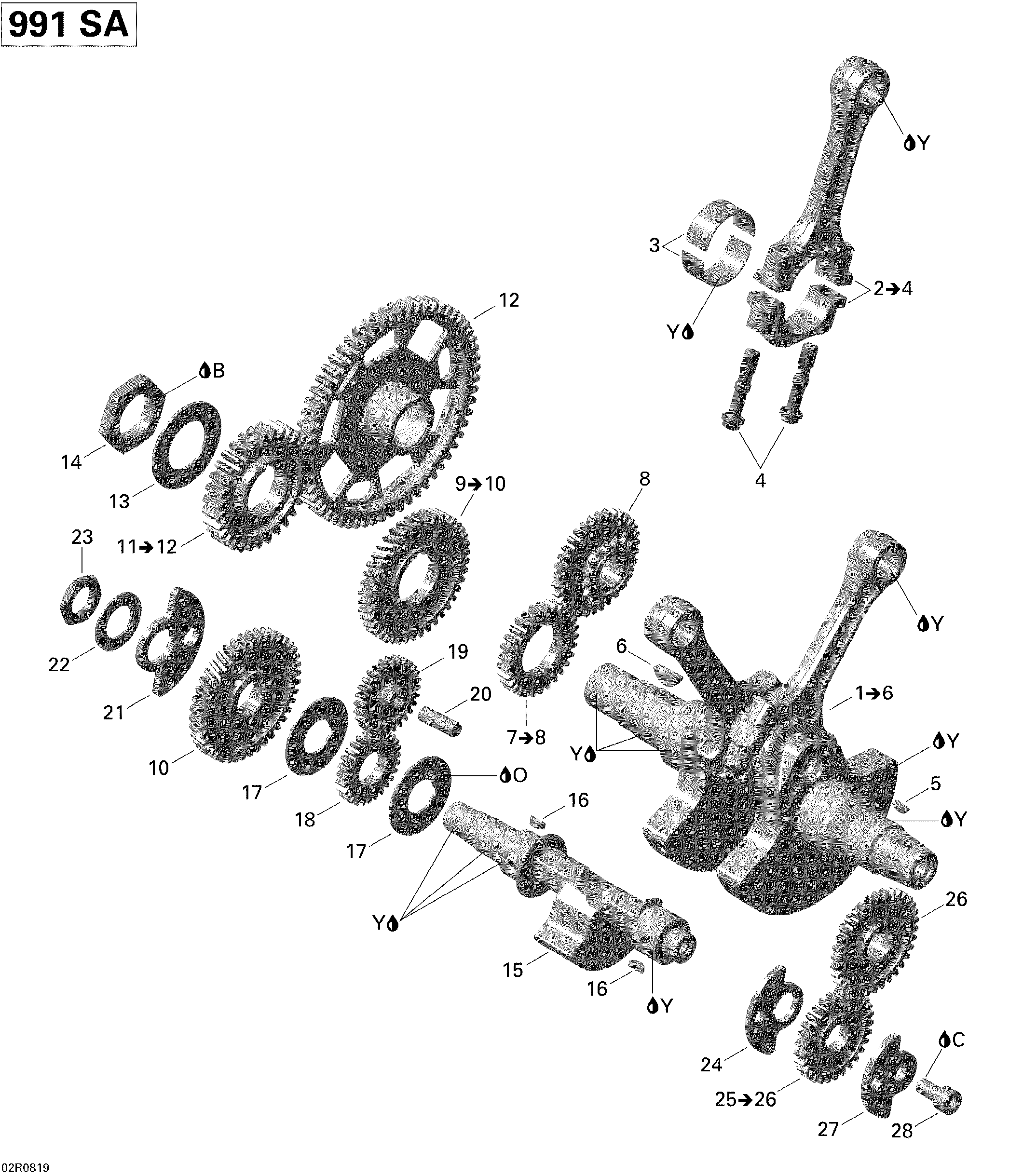

01- Crankshaft для BRP Spyder GS 990 Semi-Automatic - 2008

  • №
    Артикул
    Название
  • 1
    420684790 Crankshaft Ass'y. Includes 1 to 6
    Crankshaft Ass'y. Includes 1 to 6
  • 2
    420217346 Connecting Rod Ass'y. Includes 2 to 4
    Connecting Rod Ass'y. Includes 2 to 4
  • 3
    420233721 Plain Bearing, Red
    Plain Bearing, Red
  • 3
    420233722 Plain Bearing, Blue
    Plain Bearing, Blue
  • 3
    420233723 Plain Bearing, Yellow
    Plain Bearing, Yellow
  • 4
    420640400 Bolt
    Bolt
  • 5
    420246570 Woodruff Key 4 X 5
    Woodruff Key 4 X 5
  • 6
    420946015 Woodruff Key 6 X 9
    Woodruff Key 6 X 9
  • 7
    420295760 Camshaft Drive Gear Ass'y. Includes 7 to 8
    Camshaft Drive Gear Ass'y. Includes 7 to 8
  • 9
    420295770 Gear Balance Ass'y. Includes 9 to 10
    Gear Balance Ass'y. Includes 9 to 10
  • 11
    420684815 Primary Drive Gear Ass'y. Includes 11 to 12
    Primary Drive Gear Ass'y. Includes 11 to 12
  • 13
    420245840 Spring Washer
    Spring Washer
  • 14
    420242940 Nut
    Nut
  • 15
    420220374 Bottom Balancer
    Bottom Balancer
  • 16
    420246570 Woodruff Key 4 X 5
    Woodruff Key 4 X 5
  • 17
    420627200 Thrust Washer
    Thrust Washer
  • 18
    420634611 Water Pump Gear
    Water Pump Gear
  • 19
    420634500 Intermediate Gear Water Pump
    Intermediate Gear Water Pump
  • 20
    420929930 Pin, M6 X 50
    Pin, M6 X 50
  • 21
    420219350 Mass Balancing
    Mass Balancing
  • 22
    420245860 Spring Washer
    Spring Washer
  • 23
    420242874 Nut
    Nut
  • 24
    420219360 Mass Balancing
    Mass Balancing
  • 25
    420295765 Distribution Drive Ass'y. Includes 25 to 26
    Distribution Drive Ass'y. Includes 25 to 26
  • 27
    420219365 Mass Balancing
    Mass Balancing
  • 28
    420440260 Allen Screw, M10 X 20
    Allen Screw, M10 X 20
  • B
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • C
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • Y
    420899271 Petamo Grease, GHY133N, 400 G
    Petamo Grease, GHY133N, 400 G
