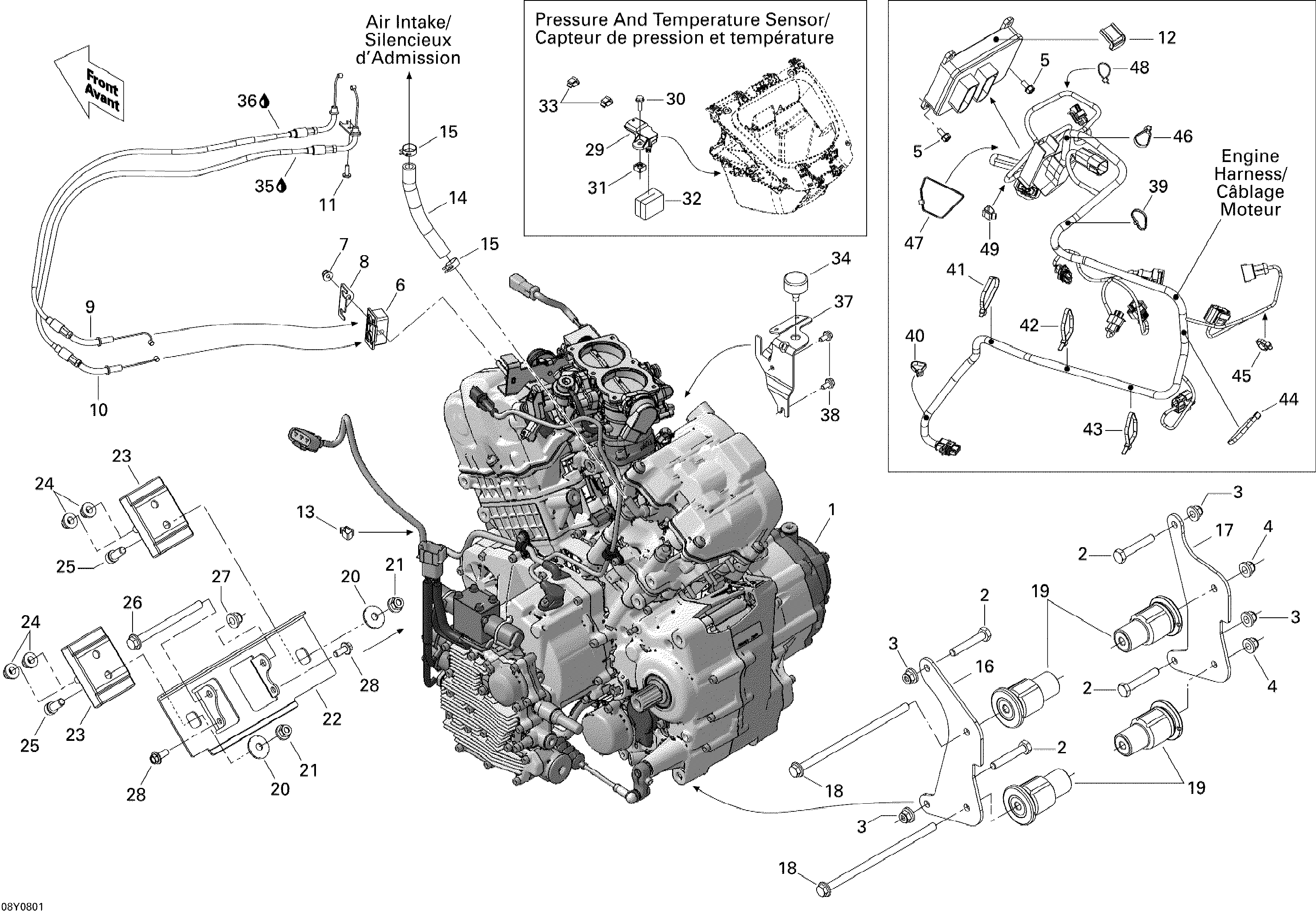

01- Engine для BRP Spyder GS 990 Semi-Automatic - 2008

  • №
    Артикул
    Название
  • 1
    707000379 Engine, Rotax 991 SA. Long Block 421000709
    Engine, Rotax 991 SA. Long Block 421000709
  • 2
    207006044 Hex. Screw M10 X 60
    Hex. Screw M10 X 60
  • 3
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 4
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 5
    210261280 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 6
    707000614 Indexing Block
    Indexing Block
  • 7
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 8
    707000610 Fixation Plate
    Fixation Plate
  • 9
    707000607 Throttle Cable
    Throttle Cable
  • 10
    707000608 Throttle Cable With Bracket
    Throttle Cable With Bracket
  • 11
    250000145 Torx Screw M5 X 14
    Torx Screw M5 X 14
  • 12
    278001166 Module Protector
    Module Protector
  • 13
    414227300 Clip
    Clip
  • 14
    707000484 Hose
    Hose
  • 15
    707000485 Spring Clamp
    Spring Clamp
  • 16
    707000510 Support LH
    Support LH
  • 17
    707000512 Support RH
    Support RH
  • 18
    250000286 Hex. Flanged Screw M10 X 210
    Hex. Flanged Screw M10 X 210
  • 19
    707000516 Rubber Mount
    Rubber Mount
  • 20
    512056700 Lock Washer
    Lock Washer
  • 21
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 22
    707000452 Front Engine Support
    Front Engine Support
  • 23
    707000441 Rubber Mount
    Rubber Mount
  • 24
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 25
    205002544 Socket Head Screw M10 X 25
    Socket Head Screw M10 X 25
  • 26
    230602546 Hex. Flanged Screw M10 X 125
    Hex. Flanged Screw M10 X 125
  • 27
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 28
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 29
    707000564 Pressure And Temperature Sensor
    Pressure And Temperature Sensor
  • 30
    207662084 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 31
    269500725 Nut Housing Ass'y
    Nut Housing Ass'y
  • 32
    707000586 Filter
    Filter
  • 33
    414227300 Clip
    Clip
  • 34
    708000006 Rubber Stopper
    Rubber Stopper
  • 35
    293600041 Cable Lubricant, 400 G
    Cable Lubricant, 400 G
  • 36
    293600041 Cable Lubricant, 400 G
    Cable Lubricant, 400 G
  • 37
    707000514 Intake Support
    Intake Support
  • 38
    207661244 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 39
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 40
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 41
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 42
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 43
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 44
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 45
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 46
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 47
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 48
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 49
    414227300 Clip
    Clip
