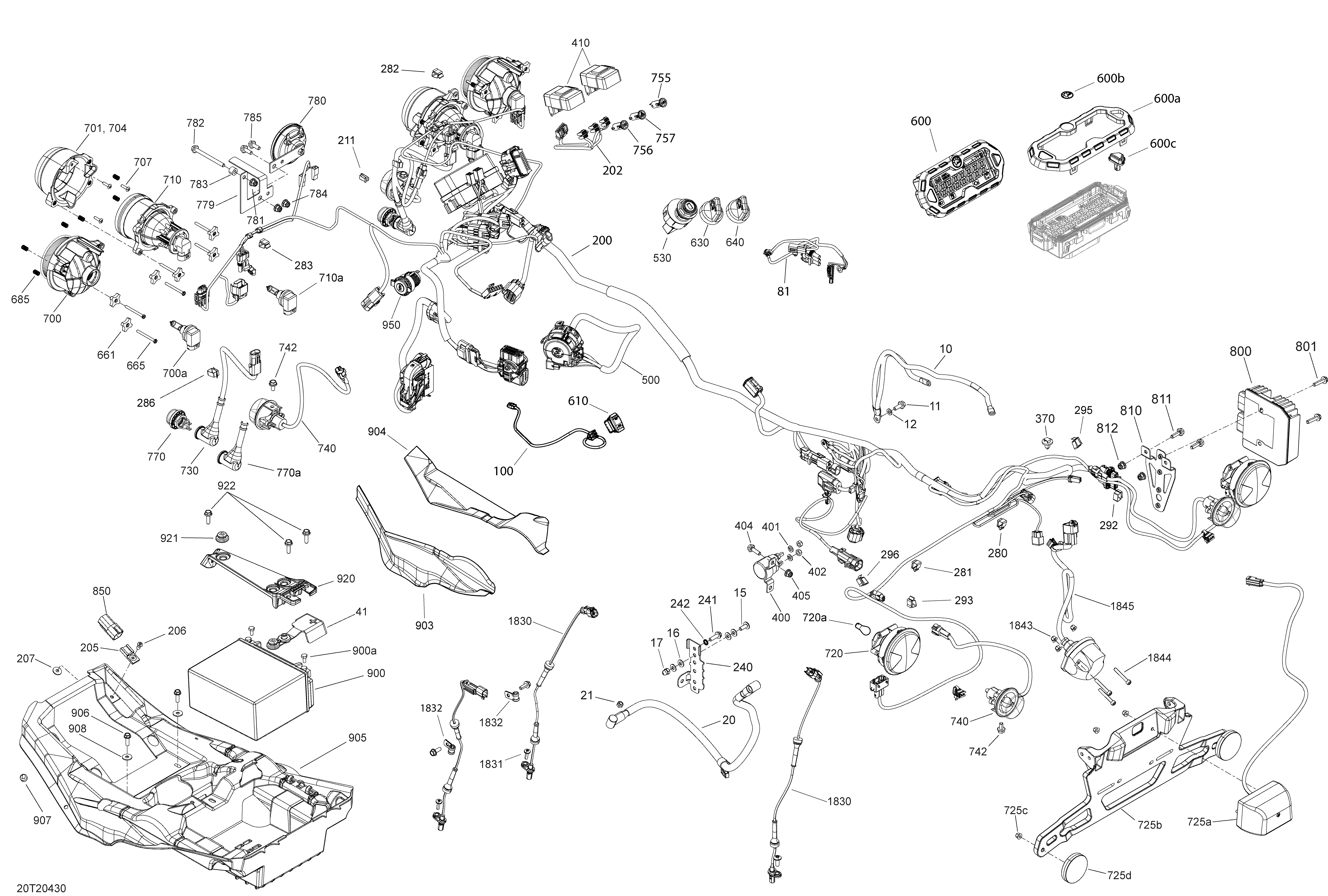

10- Electrical System для BRP 004 - Outlander T MAX 650 EFI - PRO+_XT_XTP - T Regulation - 2020

  • №
    Артикул
    Название
  • 10
    710004382 Ground Cable
    Ground Cable
  • 11
    207561644 Hex.Fla. Screw M6 X 16, Scotch Grip
    Hex.Fla. Screw M6 X 16, Scotch Grip
  • 12
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 15
    250000717 Torx Head Screw M6 X 16
    Torx Head Screw M6 X 16
  • 16
    224061121 Flat Washer
    Flat Washer
  • 17
    232361493 Domed Nut M6
    Domed Nut M6
  • 20
    710004377 Positive Cable
    Positive Cable
  • 21
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 41
    710006729 Cap Battery Cable
    Cap Battery Cable
  • 81
    710005246 Winch Cable
    Winch Cable
  • 100
    710006711 Wiring Harness Gauge
    Wiring Harness Gauge
  • 200
    710006169 Harness. XT
    Harness. XT
  • 200
    710006170 No ABS Cable. PRO+
    No ABS Cable. PRO+
  • 202
    710005840 Indicator Light Cable
    Indicator Light Cable
  • 205
    270000141 Clip
    Clip
  • 206
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 207
    391301600 Washer
    Washer
  • 211
    710000992 Clip
    Clip
  • 240
    710004118 Connector Bracket
    Connector Bracket
  • 241
    210262040 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 242
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 280
    414227300 Clip
    Clip
  • 281
    414227300 Clip
    Clip
  • 282
    414227300 Clip
    Clip
  • 283
    414227300 Clip
    Clip
  • 286
    414227300 Clip
    Clip
  • 292
    414227300 Clip
    Clip
  • 293
    414227300 Clip
    Clip
  • 295
    414227300 Clip
    Clip
  • 296
    414227300 Clip
    Clip
  • 370
    293730040 Mount Dart
    Mount Dart
  • 400
    710001364 Starter Relay
    Starter Relay
  • 401
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 402
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 404
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 405
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 410
    710003239 Flasher Unit
    Flasher Unit
  • 500
    710006211 LH Multi Fonction Control
    LH Multi Fonction Control
  • 530
    710003847 Ignition Switch
    Ignition Switch
  • 600
    710006216 Speedometer. PRO+_XT. Includes 600 to 600c
    Speedometer. PRO+_XT. Includes 600 to 600c
  • 600a
    710001183 Trim Ring Ass'y. PRO+_XT. Includes to
    Trim Ring Ass'y. PRO+_XT. Includes to
  • 600b
    704904615 BRP Logo, 13 mm. PRO+_XT
    BRP Logo, 13 mm. PRO+_XT
  • 600c
    715900265 Button. PRO+_XT
    Button. PRO+_XT
  • 610
    710006717 Switch Mode. XTP
    Switch Mode. XTP
  • 630
    710002183 Grey, Electronic Key
    Grey, Electronic Key
  • 640
    710000817 Black, Electronic Key
    Black, Electronic Key
  • 661
    572106600 Handle
    Handle
  • 665
    250000718 Hex. Screw K40 X 45
    Hex. Screw K40 X 45
  • 685
    517168600 Spring
    Spring
  • 700
    710006177 Low Beam. Includes 700 to 700a
    Low Beam. Includes 700 to 700a
  • 700a
    715900141 Bulb 12V 55W
    Bulb 12V 55W
  • 701
    710002291 RH High Front Housing
    RH High Front Housing
  • 704
    710002292 LH High Front Housing
    LH High Front Housing
  • 707
    250000723 Phillips Screw K40 X 16
    Phillips Screw K40 X 16
  • 710
    710002525 High Beam Ass'y
    High Beam Ass'y
  • 710
    710002525 High Beam Ass'y. Includes 710 to 710a
    High Beam Ass'y. Includes 710 to 710a
  • 710a
    415129249 Halogen Bulb
    Halogen Bulb
  • 720
    710001645 Tail Light Ass'y. Includes 720 to 720a
    Tail Light Ass'y. Includes 720 to 720a
  • 720a
    520000758 Bulb
    Bulb
  • 725a
    710005563 License Plate Light
    License Plate Light
  • 725b
    708300434 Plate Support
    Plate Support
  • 725c
    233251434 Flanged Elastic Nut M5
    Flanged Elastic Nut M5
  • 725d
    705011221 Red Reflector
    Red Reflector
  • 730
    710005676 Position Light Harness
    Position Light Harness
  • 740
    710002964 Flasher
    Flasher
  • 742
    207561244 Hex. Flanged Screw M6 X 12, Scotch Grip
    Hex. Flanged Screw M6 X 12, Scotch Grip
  • 755
    710005766 Pilot Light Trailer Flasher
    Pilot Light Trailer Flasher
  • 756
    710005767 Pilot Light Tail Lamp
    Pilot Light Tail Lamp
  • 757
    710003909 Pilot Lamp
    Pilot Lamp
  • 770
    710001726 Day Light. Includes 770 to 770a
    Day Light. Includes 770 to 770a
  • 770a
    710003269 Cap Protector
    Cap Protector
  • 779
    710006113 Horn Support
    Horn Support
  • 780
    710004791 Horn
    Horn
  • 781
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 782
    207667044 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 783
    708001129 Bushing
    Bushing
  • 784
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 785
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 800
    710005842 Voltage Regulator
    Voltage Regulator
  • 801
    210262550 Hex. Flanged Forming Screw M6 X 25
    Hex. Flanged Forming Screw M6 X 25
  • 810
    710001752 Rectifier Support
    Rectifier Support
  • 811
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 812
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 850
    710003006 Housing
    Housing
  • 900
    410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900a
    Battery Ass'y, 18 Amperes. Includes 900 to 900a
  • 900a
    250000282 Battery Bolt Kit
    Battery Bolt Kit
  • 903
    710006532 Heat Shield
    Heat Shield
  • 904
    710006533 Heat Shield
    Heat Shield
  • 905
    710006561 Battery Support
    Battery Support
  • 906
    210262050 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 907
    293830005 Rubber Bumper
    Rubber Bumper
  • 908
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 920
    710002404 Fixation Plate
    Fixation Plate
  • 921
    705014429 Stopper Rubber
    Stopper Rubber
  • 922
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 950
    710001248 Outlet DC
    Outlet DC
  • 1830
    710005610 Speed Sensor. XTP
    Speed Sensor. XTP
  • 1831
    250000720 Torx Screw K50 X 16. XTP
    Torx Screw K50 X 16. XTP
  • 1832
    293650256 Clamp. XTP
    Clamp. XTP
  • 1843
    233251434 Flanged Elastic Nut M5
    Flanged Elastic Nut M5
  • 1844
    205053588 Socket Head Screw M5 X 35
    Socket Head Screw M5 X 35
  • 1845
    710005846 Trailer Harness
    Trailer Harness
