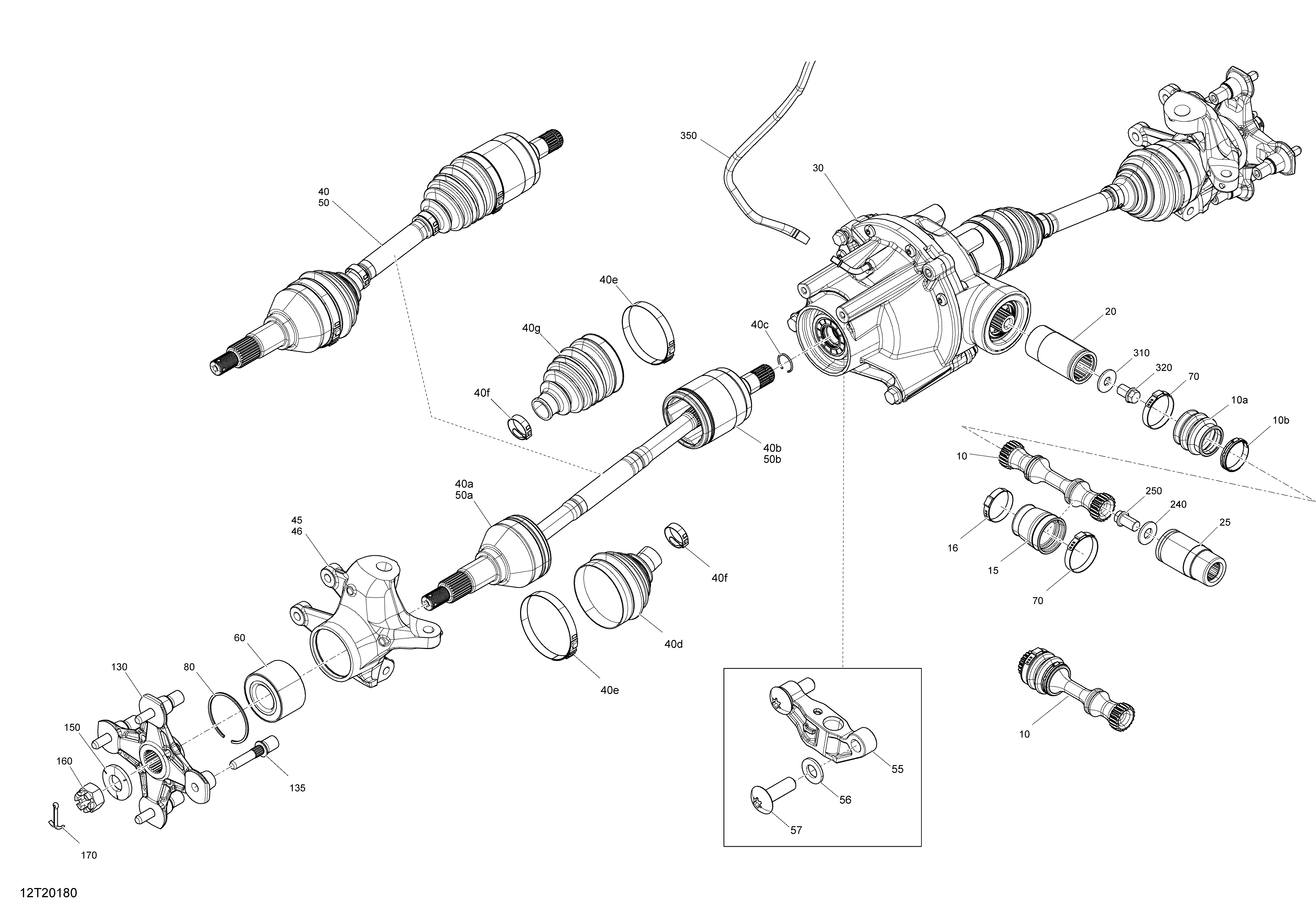

07- Front Drive для BRP 004 - Outlander T MAX 650 EFI - PRO+_XT_XTP - T Regulation - 2020

  • №
    Артикул
    Название
  • 10
    705400913 Front Drive Axle Ass'y. Includes 10 to 10b
    Front Drive Axle Ass'y. Includes 10 to 10b
  • 10a
    715900118 Rubber Boot
    Rubber Boot
  • 10b
    509000045 Oetiker Gear Clamp
    Oetiker Gear Clamp
  • 15
    705401093 Rubber Boot
    Rubber Boot
  • 16
    293650199 Oetiker Gear Clamp
    Oetiker Gear Clamp
  • 20
    705401969 Coupling Sleeve
    Coupling Sleeve
  • 25
    703500678 Front Bushing Shaft Kit
    Front Bushing Shaft Kit
  • 30
    703500908 Front Differential
    Front Differential
  • 40
    705402242 RH CV Joint. XT & XXC. Includes 40 to 40g
    RH CV Joint. XT & XXC. Includes 40 to 40g
  • 40
    705402236 RH CV Joint. PRO +. Includes 40 to 40g
    RH CV Joint. PRO +. Includes 40 to 40g
  • 40a
    705401344 CV Joint. XT & XXC
    CV Joint. XT & XXC
  • 40b
    715900602 RH Plunging Joint. XT & XXC
    RH Plunging Joint. XT & XXC
  • 40b
    705401348 RH Plunging Joint. PRO +
    RH Plunging Joint. PRO +
  • 40c
    705401349 Circlip Joint. XT & XXC
    Circlip Joint. XT & XXC
  • 40d
    705401345 Boot Kit, Wheel Side. XT & XXC. Includes 40d to 40f
    Boot Kit, Wheel Side. XT & XXC. Includes 40d to 40f
  • 40e
    715900282 Oetiker Clamp, Large. XT & XXC
    Oetiker Clamp, Large. XT & XXC
  • 40e
    715900284 Oetiker Clamp, Large. XT & XXC
    Oetiker Clamp, Large. XT & XXC
  • 40f
    715900283 Oetiker Clamp, Small. XT & XXC
    Oetiker Clamp, Small. XT & XXC
  • 40f
    715900261 Oetiker Clamp, Small. XT & XXC
    Oetiker Clamp, Small. XT & XXC
  • 40g
    705401346 Boot Kit, Differential Side. XT & XXC. Includes 40g, 40e, 40f
    Boot Kit, Differential Side. XT & XXC. Includes 40g, 40e, 40f
  • 45
    705401290 LH Knuckle
    LH Knuckle
  • 46
    705401291 RH Knuckle
    RH Knuckle
  • 50
    705402241 LH CV Joint. XT & XXC. Includes 50 to 50b
    LH CV Joint. XT & XXC. Includes 50 to 50b
  • 50
    705402235 LH CV Joint. PRO +. Includes 50 to 50b
    LH CV Joint. PRO +. Includes 50 to 50b
  • 50a
    705401344 CV Joint. XT & XXC
    CV Joint. XT & XXC
  • 50b
    715900603 LH Plunging Joint. XT & XXC
    LH Plunging Joint. XT & XXC
  • 50b
    705401350 LH Plunging Joint. PRO +
    LH Plunging Joint. PRO +
  • 55
    705402088 Sensor Support
    Sensor Support
  • 56
    234081410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 57
    250000874 Torx Truss M8 X 25
    Torx Truss M8 X 25
  • 60
    293350118 Cone Bearing
    Cone Bearing
  • 70
    293650138 Oetiker Gear Clamp
    Oetiker Gear Clamp
  • 80
    293370019 Circlip
    Circlip
  • 130
    705501900 Wheel Hub
    Wheel Hub
  • 135
    250300642 Wheel Stud
    Wheel Stud
  • 150
    250200171 Conical Spring Washer M18
    Conical Spring Washer M18
  • 160
    250100047 Hex. Castellated Nut M18
    Hex. Castellated Nut M18
  • 170
    250400071 Cotter Pin
    Cotter Pin
  • 240
    250200102 Flat Washer M12
    Flat Washer M12
  • 250
    250001042 Hex Flanged Screw M12 X 20
    Hex Flanged Screw M12 X 20
  • 310
    250200014 Flat Washer M10
    Flat Washer M10
  • 320
    250001046 Hex Flanged Screw M10 X 20 S.GRIP
    Hex Flanged Screw M10 X 20 S.GRIP
  • 350
    293830193 Polyurethane Hose
    Polyurethane Hose
