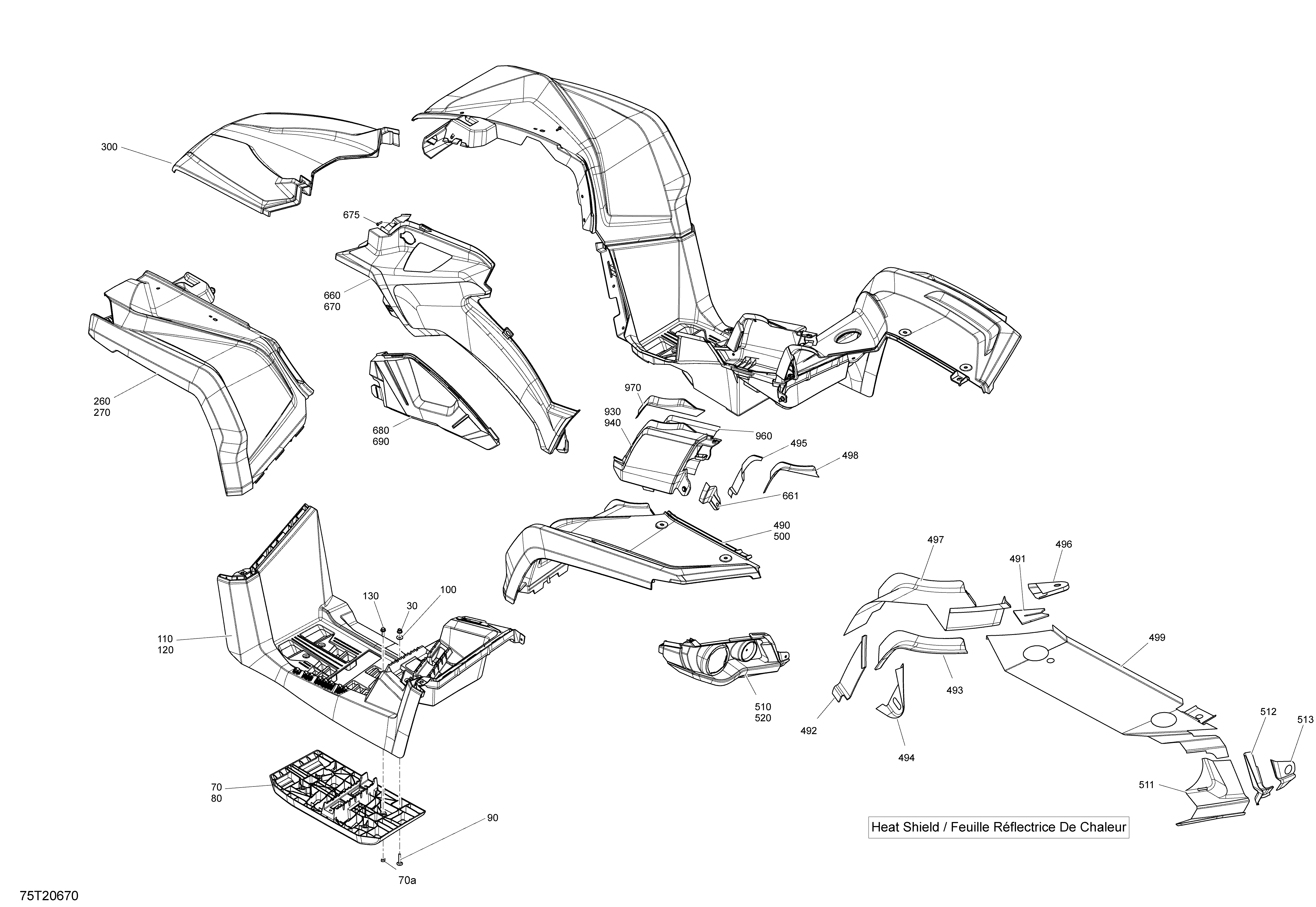

09- Body - Fenders And Lateral Panels - XT - Mineral Gray Satin для BRP 004 - Outlander T MAX 650 EFI - PRO+_XT_XTP - T Regulation - 2020

  • №
    Артикул
    Название
  • 30
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 70
    705011540 LH Structural Footboard. Includes 70 to 70a
    LH Structural Footboard. Includes 70 to 70a
  • 70a
    232862412 Square Nut M6
    Square Nut M6
  • 80
    705011542 RH Structural Footboard
    RH Structural Footboard
  • 90
    207763554 Carriage Bolt M6 X 35
    Carriage Bolt M6 X 35
  • 100
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 110
    705003525 LH Footrest Max
    LH Footrest Max
  • 120
    705003521 RH Footrest Max
    RH Footrest Max
  • 130
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 260
    715006933 Mineral Gray Satin, LH Front Fender
    Mineral Gray Satin, LH Front Fender
  • 270
    715006949 Mineral Gray Satin, RH Front Fender
    Mineral Gray Satin, RH Front Fender
  • 300
    715006988 Mineral Gray Satin, Hood
    Mineral Gray Satin, Hood
  • 490
    715006964 Mineral Gray Satin, LH Rear Fender
    Mineral Gray Satin, LH Rear Fender
  • 491
    707002456 Heat Shield
    Heat Shield
  • 492
    707002457 Heat Shield
    Heat Shield
  • 493
    707002458 Heat Shield
    Heat Shield
  • 494
    707002459 Heat Shield
    Heat Shield
  • 495
    707002460 Heat Shield
    Heat Shield
  • 496
    707002461 Heat Shield
    Heat Shield
  • 497
    707002462 Heat Shield
    Heat Shield
  • 498
    707002583 Heat Shield
    Heat Shield
  • 499
    707002464 Heat Shield
    Heat Shield
  • 500
    705014483 Mineral Gray Satin, RH Rear Fender
    Mineral Gray Satin, RH Rear Fender
  • 510
    705006643 LH Rear Facia
    LH Rear Facia
  • 511
    707002103 Heat Shield
    Heat Shield
  • 512
    707002107 Heat Shield
    Heat Shield
  • 513
    707002594 Heat Shield
    Heat Shield
  • 520
    705006650 RH Rear Facia
    RH Rear Facia
  • 660
    705014484 Mineral Gray Satin, LH Panel Central
    Mineral Gray Satin, LH Panel Central
  • 661
    707002467 Heat Shield
    Heat Shield
  • 670
    705014485 Mineral Gray Satin, RH Panel Central
    Mineral Gray Satin, RH Panel Central
  • 675
    250000723 Phillips Screw K40 X 16
    Phillips Screw K40 X 16
  • 680
    705014060 LH Central Panel
    LH Central Panel
  • 690
    705003444 Engine Cover
    Engine Cover
  • 930
    715001897 LH Extension Panel
    LH Extension Panel
  • 940
    705004348 RH Extension Panel
    RH Extension Panel
  • 960
    705006870 Heat Shield
    Heat Shield
  • 970
    705006871 Heat Shield
    Heat Shield
