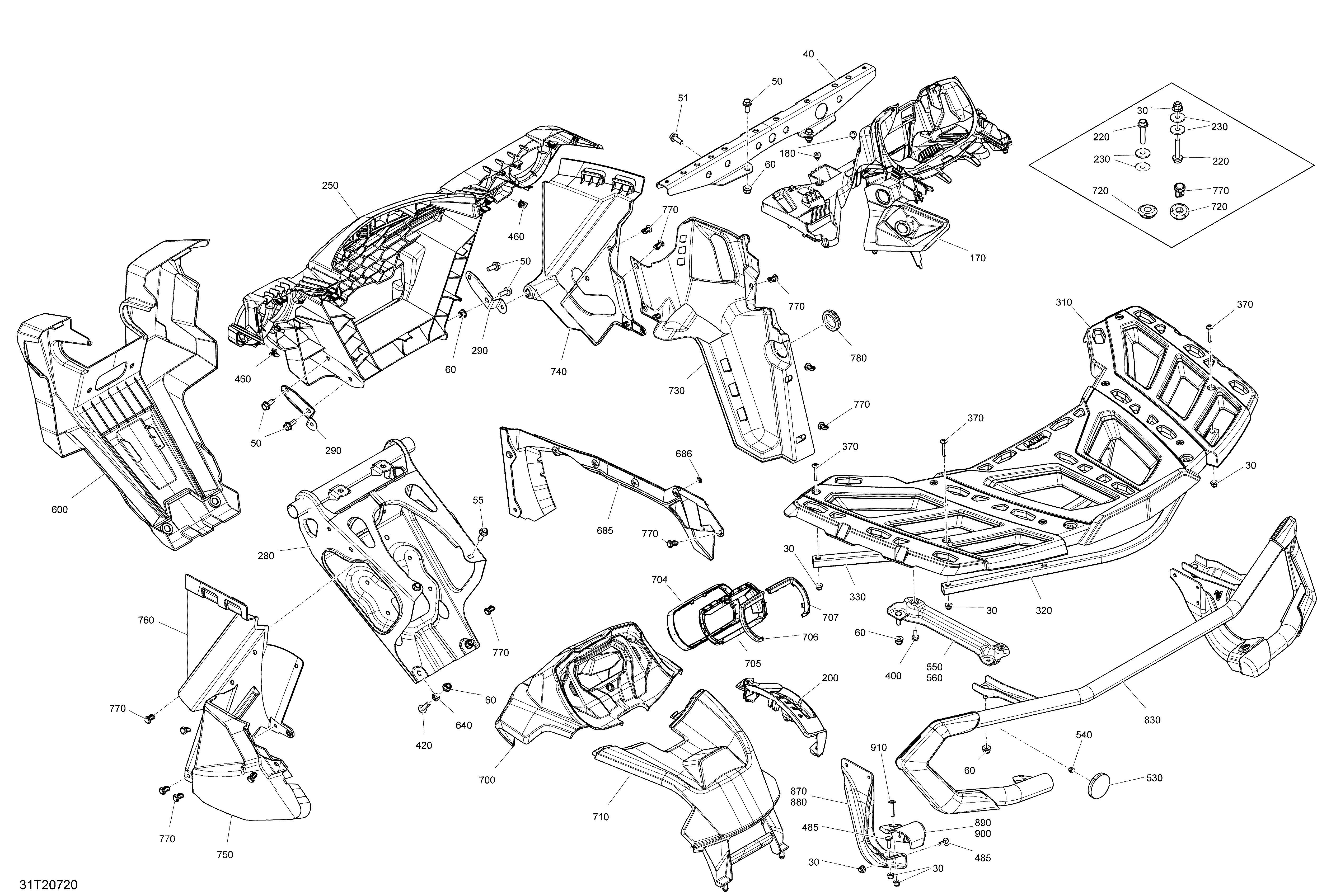

09- Body - PRO+ - Timeless Black для BRP 004 - Outlander T MAX 650 EFI - PRO+_XT_XTP - T Regulation - 2020
-
№АртикулНазвание
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
40705006812 Cargo Rack Center SupportCargo Rack Center Support
-
50207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
51207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
55207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
60233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
170715006101 Console Support Ass'yConsole Support Ass'y
-
180293830005 Rubber BumperRubber Bumper
-
200705011544 Shifter GateShifter Gate
-
220207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
230224061201 Flat WasherFlat Washer
-
250705012822 FasciaFascia
-
280705009253 Black Front Bumper SupportBlack Front Bumper Support
-
290705004565 Lower Fender SupportLower Fender Support
-
310705003559 Lugage RackLugage Rack
-
320705005469 TubeTube
-
330705005470 TubeTube
-
370250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
400207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
420250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
460517302785 Edge ClipEdge Clip
-
550705007277 LH SupportLH Support
-
560705007278 RH SupportRH Support
-
600705006300 Front Guard PlateFront Guard Plate
-
640705004497 RingRing
-
685705014061 Deflector Body PanelDeflector Body Panel
-
686732610072 Push NutPush Nut
-
700705012572 Gauge SupportGauge Support
-
710705006690 Console CapConsole Cap
-
720705003264 GrommetGrommet
-
730705013925 RH Wheel Arch ProtectorRH Wheel Arch Protector
-
740705011463 RH Front Inner FenderRH Front Inner Fender
-
750705013924 LH Wheel Arch ProtectorLH Wheel Arch Protector
-
760705011465 LH Front Inner FenderLH Front Inner Fender
-
770293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
780293250242 Rubber CoverRubber Cover
