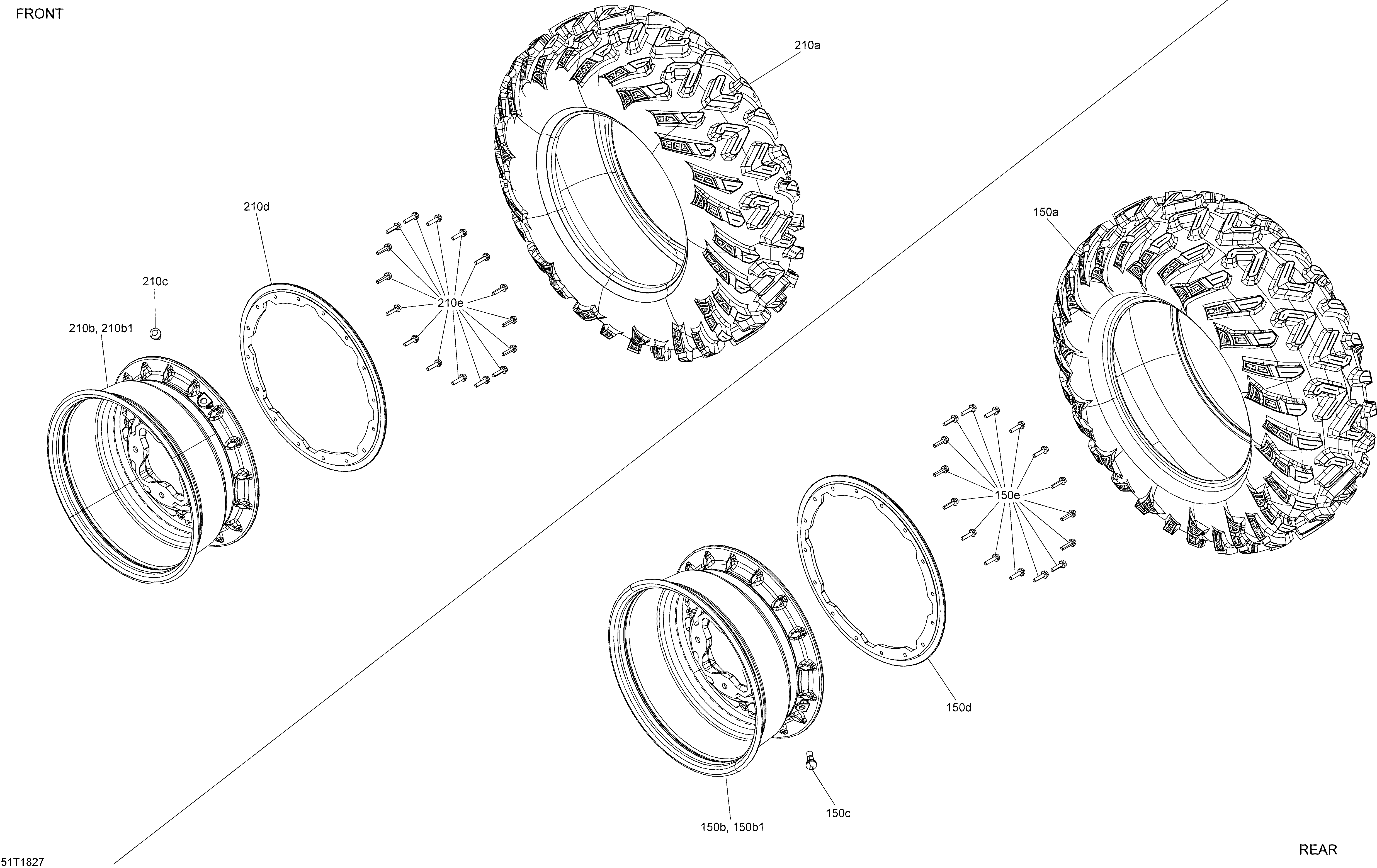

07- Wheels And Tires STD для BRP 1- Outlander T3 570 EFI - 2018
-
№АртикулНазвание
-
210a705402264 Front Tire. FrontFront Tire. Front
-
210b705401199 Black Rim. FrontBlack Rim. Front
-
210c705400193 Rim Valve With Cap. FrontRim Valve With Cap. Front
-
210d705501385 1/2 OZ Weight. Front1/2 OZ Weight. Front
-
150a705502743 Rear tire. RearRear tire. Rear
-
150b705501607 Black Rim. RearBlack Rim. Rear
-
150c705400193 Rim Valve With Cap. RearRim Valve With Cap. Rear
-
150d705501385 1/2 OZ Weight. Rear1/2 OZ Weight. Rear
