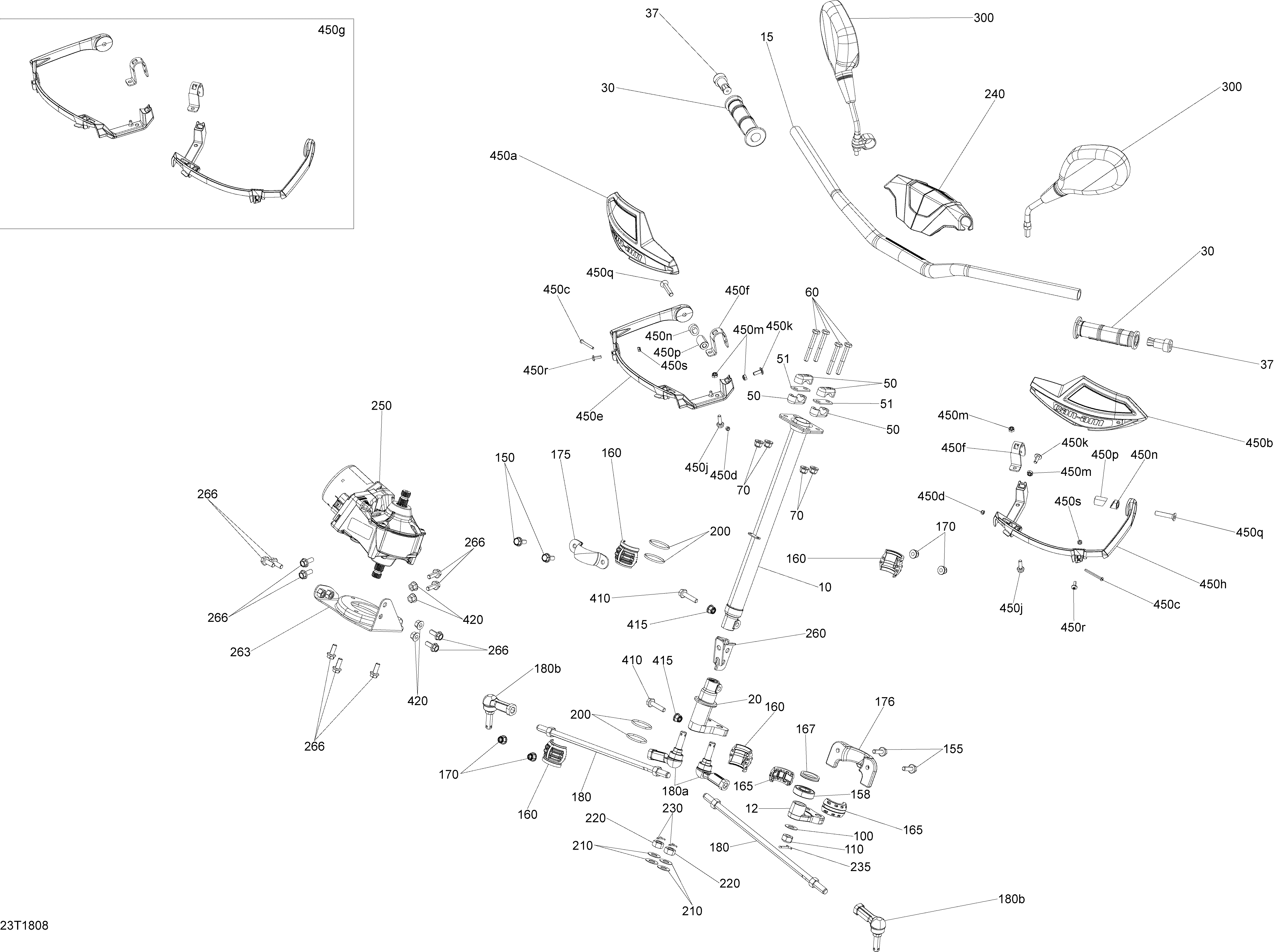

07- Steering для BRP 1- Outlander T3 570 EFI - 2018

  • №
    Артикул
    Название
  • 10
    709401545 Black Upper Main Tube. Package STD
    Black Upper Main Tube. Package STD
  • 10
    709401750 Black Upper Main Tube. Except Package STD
    Black Upper Main Tube. Except Package STD
  • 12
    709401542 Pitman Arm. Package STD
    Pitman Arm. Package STD
  • 15
    709401240 Black Handle Bar
    Black Handle Bar
  • 20
    709401748 Pitman Arm
    Pitman Arm
  • 30
    709400493 Handle Grip
    Handle Grip
  • 37
    709400449 End Piece. Package PRO
    End Piece. Package PRO
  • 37
    709400449 End Piece. Package STD
    End Piece. Package STD
  • 37
    709400449 End Piece. Package DPS
    End Piece. Package DPS
  • 50
    709401799 Steering Support
    Steering Support
  • 51
    709400509 Stiffner
    Stiffner
  • 60
    207086046 Hex. Screw M8 X 60
    Hex. Screw M8 X 60
  • 70
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 100
    250200086 Flat Washer. Package STD
    Flat Washer. Package STD
  • 110
    250000047 Hex. Flanged Elastic Nut M12. Package STD
    Hex. Flanged Elastic Nut M12. Package STD
  • 150
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 155
    207682534 Hex. Flanged Screw M8 X 25
    Hex. Flanged Screw M8 X 25
  • 158
    503190396 Ball Bearing. Package STD
    Ball Bearing. Package STD
  • 160
    709400783 Spherical Half Bushing. Except Package STD
    Spherical Half Bushing. Except Package STD
  • 160
    709400783 Spherical Half Bushing. Package STD
    Spherical Half Bushing. Package STD
  • 165
    709401370 Spherical Half Bushing. Package STD
    Spherical Half Bushing. Package STD
  • 167
    293250177 Seal. Package STD
    Seal. Package STD
  • 170
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 175
    709400827 Upper Column Attachment
    Upper Column Attachment
  • 176
    709401428 Column Attachment
    Column Attachment
  • 180
    703500922 Tie Rod Ass'y. Includes 180 to 180b
    Tie Rod Ass'y. Includes 180 to 180b
  • 180a
    709401837 Ball Joint, LH Thread
    Ball Joint, LH Thread
  • 180b
    709401839 Ball Joint, RH Thread
    Ball Joint, RH Thread
  • 200
    293300068 O-Ring. Except Package STD
    O-Ring. Except Package STD
  • 200
    293300068 O-Ring. Package STD
    O-Ring. Package STD
  • 210
    250200086 Flat Washer
    Flat Washer
  • 220
    250100099 Nut M12
    Nut M12
  • 230
    211400013 Cotter Pin
    Cotter Pin
  • 235
    250400034 Cotter Pin. Package STD
    Cotter Pin. Package STD
  • 240
    709400939 Cover
    Cover
  • 250
    709402204 Power Steering. Except Package STD
    Power Steering. Except Package STD
  • 260
    709400848 Power Steering Module Bracket. Package XT Without Brake ABS
    Power Steering Module Bracket. Package XT Without Brake ABS
  • 260
    709400848 Power Steering Module Bracket. Package PRO Without Brake ABS
    Power Steering Module Bracket. Package PRO Without Brake ABS
  • 260
    709400848 Power Steering Module Bracket. Package DPS Without Brake ABS
    Power Steering Module Bracket. Package DPS Without Brake ABS
  • 260
    709402011 LH Power Steering Bracket. With Brake ABS
    LH Power Steering Bracket. With Brake ABS
  • 260
    709401742 RH Power Steering Bracket. Except Package STD
    RH Power Steering Bracket. Except Package STD
  • 263
    709401743 Power Steering Support. Except Package STD
    Power Steering Support. Except Package STD
  • 266
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. Except Package STD
    Hex. Flanged Screw M8 X 20, Scotch Grip. Except Package STD
  • 300
    709400406 LH Mirror
    LH Mirror
  • 300
    709400523 RH Mirror. Package XT
    RH Mirror. Package XT
  • 410
    250000986 Hex. Flanged Screw M8 X 35. Except Package STD
    Hex. Flanged Screw M8 X 35. Except Package STD
  • 415
    233281416 Hex. Elastic Flanged Nut M8. Except Package STD
    Hex. Elastic Flanged Nut M8. Except Package STD
  • 420
    233081416 Hex. Flanged Nut M8. Except Package STD
    Hex. Flanged Nut M8. Except Package STD
  • 450a
    709401303 RH Air Deflector. Package XT
    RH Air Deflector. Package XT
  • 450b
    709401304 LH Air Deflector. Package XT
    LH Air Deflector. Package XT
  • 450c
    205444056 Socket Head Screw M4 X 40. Package XT
    Socket Head Screw M4 X 40. Package XT
  • 450d
    232541414 Elastic Stop Nut M4. Package XT
    Elastic Stop Nut M4. Package XT
  • 450e
    715001378 Air Deflector Support Kit. Package XT
    Air Deflector Support Kit. Package XT
  • 450f
    709402104 U-Clamp. Package XT
    U-Clamp. Package XT
  • 450g
    715000545 Frame Deflector Support Kit. Package XT
    Frame Deflector Support Kit. Package XT
  • 450h
    715001378 Air Deflector Support Kit. Package XT
    Air Deflector Support Kit. Package XT
  • 450j
    207662044 Hex. Flanged Screw M6 X 20. Package XT
    Hex. Flanged Screw M6 X 20. Package XT
  • 450k
    250000717 Torx Head Screw M6 X 16. Package XT
    Torx Head Screw M6 X 16. Package XT
  • 450m
    232561600 Hex. Elastic Stop Nut M6. Package XT
    Hex. Elastic Stop Nut M6. Package XT
  • 450n
    709400161 Bracket, Small. Package XT
    Bracket, Small. Package XT
  • 450p
    709400162 Bracket, Large. Package XT
    Bracket, Large. Package XT
  • 450q
    205384034 Socket Head Screw. Package XT
    Socket Head Screw. Package XT
  • 450r
    250000742 Torx Screw M5 X 14. Package XT
    Torx Screw M5 X 14. Package XT
  • 450s
    232551600 Hex. Elastic Nut M5. Package XT
    Hex. Elastic Nut M5. Package XT
