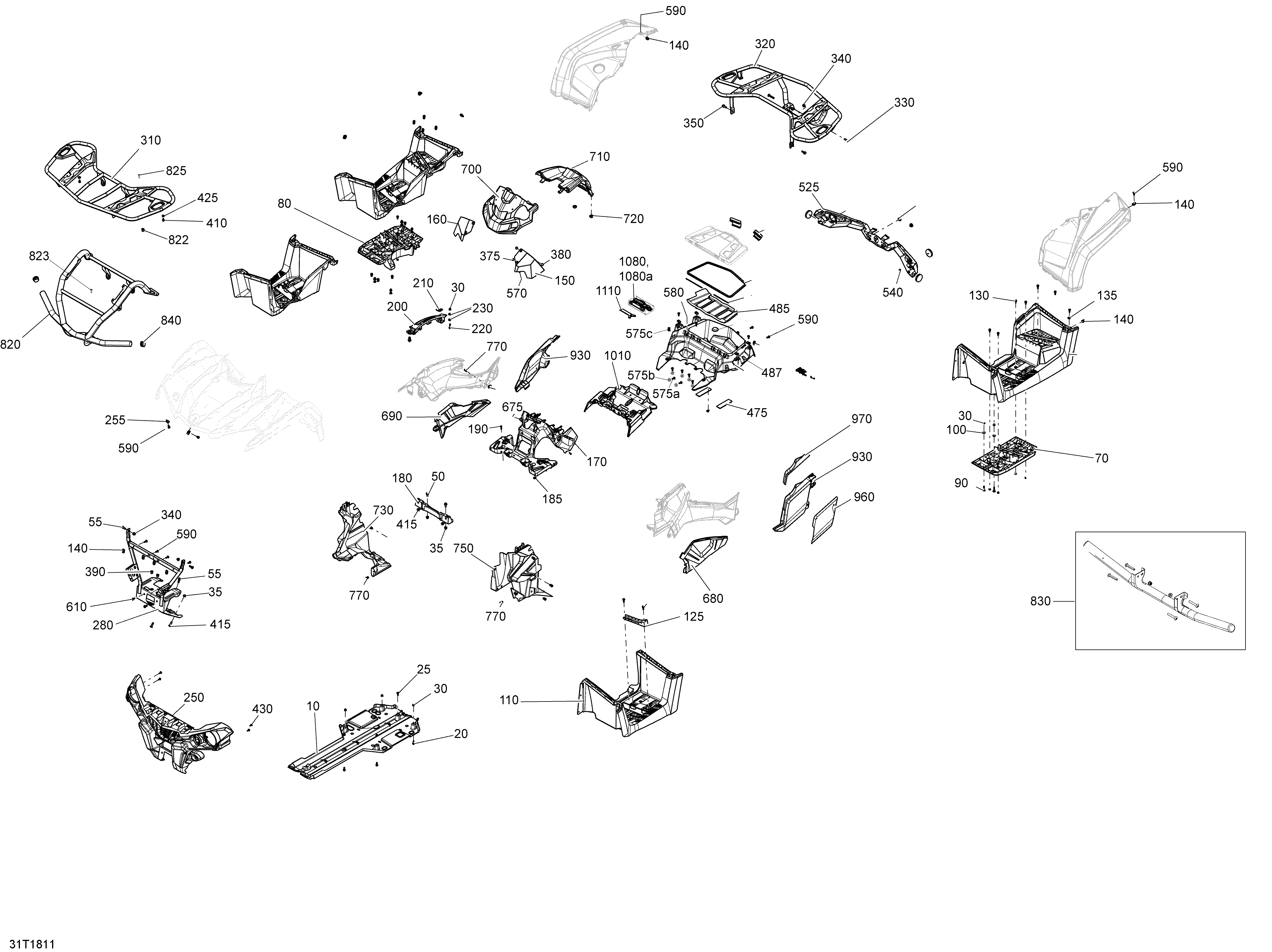

09- Body And Accessories для BRP 1- Outlander T3 570 EFI - 2018

  • №
    Артикул
    Название
  • 10
    715002374 Protective Plate Kit. Except Package STD
    Protective Plate Kit. Except Package STD
  • 20
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 20
    207662054 Hex. Flanged Screw M6 X 20. Max Model
    Hex. Flanged Screw M6 X 20. Max Model
  • 20
    207662054 Hex. Flanged Screw M6 X 20. Except Package STD
    Hex. Flanged Screw M6 X 20. Except Package STD
  • 25
    207762044 Carriage Bolt M6 X 20. Except Package STD
    Carriage Bolt M6 X 20. Except Package STD
  • 30
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 30
    233261434 Flanged Elastic Nut M6. Max Model
    Flanged Elastic Nut M6. Max Model
  • 30
    233261434 Flanged Elastic Nut M6. Except Package STD
    Flanged Elastic Nut M6. Except Package STD
  • 30
    233281434 Hex. Flanged Elastic Nut M8. Package PRO
    Hex. Flanged Elastic Nut M8. Package PRO
  • 35
    233201434 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 50
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 55
    207582544 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 60
    233281434 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 70
    705011540 LH Structural Footboard
    LH Structural Footboard
  • 80
    705011542 RH Structural Footboard
    RH Structural Footboard
  • 90
    207763554 Carriage Bolt M6 X 35
    Carriage Bolt M6 X 35
  • 100
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 110
    705003525 LH Footrest, Max. Max Model
    LH Footrest, Max. Max Model
  • 110
    705007040 LH Footrest. Non Max Model
    LH Footrest. Non Max Model
  • 120
    705003521 RH Footrest, Max. Max Model
    RH Footrest, Max. Max Model
  • 120
    705007039 RH Footrest. Non Max Model
    RH Footrest. Non Max Model
  • 130
    207661654 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 135
    224061201 Flat Washer
    Flat Washer
  • 140
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 150
    705006134 LH Air Deflector. Package PRO
    LH Air Deflector. Package PRO
  • 160
    705006135 RH Air Deflector. Package PRO
    RH Air Deflector. Package PRO
  • 170
    715003984 Dash Support Kit
    Dash Support Kit
  • 180
    705010406 Console Support Insert
    Console Support Insert
  • 185
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 190
    241152540 Hex. Flanged Screw K50 X 25
    Hex. Flanged Screw K50 X 25
  • 200
    715004564 Shifter Gate Kit. Package STD
    Shifter Gate Kit. Package STD
  • 200
    715004564 Shifter Gate Kit. Package DPS
    Shifter Gate Kit. Package DPS
  • 200
    715004566 Shifter Gate Kit. Package PRO
    Shifter Gate Kit. Package PRO
  • 210
    705005003 Shiftgate Trim
    Shiftgate Trim
  • 220
    207563034 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 230
    224061201 Flat Washer
    Flat Washer
  • 250
    705009335 Front Facia
    Front Facia
  • 255
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 280
    705009256 Front Structure
    Front Structure
  • 310
    705006887 Black Front Luggage Rack
    Black Front Luggage Rack
  • 320
    715002787 Black Rear Luggage Rack
    Black Rear Luggage Rack
  • 330
    250000761 Torx Truss Screw M8 X 50
    Torx Truss Screw M8 X 50
  • 330
    250000761 Torx Truss Screw M8 X 50. Package XT
    Torx Truss Screw M8 X 50. Package XT
  • 340
    233281464 Elastic Flange Nut M8
    Elastic Flange Nut M8
  • 340
    233281464 Elastic Flange Nut M8. Package XT
    Elastic Flange Nut M8. Package XT
  • 350
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 375
    293150104 Pop Rivet 3/16''. Package PRO
    Pop Rivet 3/16''. Package PRO
  • 380
    517124300 Washer. Package PRO
    Washer. Package PRO
  • 390
    293450307 Insert
    Insert
  • 410
    210261250 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 415
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 420
    250000886 Torx Screw M8 X 30
    Torx Screw M8 X 30
  • 425
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 430
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 475
    293830163 Rubber Pad
    Rubber Pad
  • 480
    715004412 Storage Cover
    Storage Cover
  • 485
    705007487 Heat Deflector Sheet
    Heat Deflector Sheet
  • 487
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 506
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 525
    705011887 Rear Facia
    Rear Facia
  • 526
    705012280 Bracket. Not Shown
    Bracket. Not Shown
  • 527
    250000957 Extruded Panel Nut M6. Not Shown
    Extruded Panel Nut M6. Not Shown
  • 528
    250000722 Torx Screw M6 X 20. Not Shown
    Torx Screw M6 X 20. Not Shown
  • 570
    732610072 Push Nut. Package PRO
    Push Nut. Package PRO
  • 575a
    250000841 Screw Hex Flange M6 X 25. Max Model
    Screw Hex Flange M6 X 25. Max Model
  • 575b
    234062670 Flat Washer, Stainless. Max Model
    Flat Washer, Stainless. Max Model
  • 575c
    293150089 Tuflok Plastic Rivet. Max Model
    Tuflok Plastic Rivet. Max Model
  • 580
    250000807 Torx Screw M6 X 25
    Torx Screw M6 X 25
  • 590
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 610
    205003044 Socket Screw M10 x 30. Package XT
    Socket Screw M10 x 30. Package XT
  • 610
    205003044 Socket Screw M10 x 30. Package PRO
    Socket Screw M10 x 30. Package PRO
  • 610
    236282054 Hex. Screw M8 X 20. Package DPS
    Hex. Screw M8 X 20. Package DPS
  • 610
    236282054 Hex. Screw M8 X 20. Package STD
    Hex. Screw M8 X 20. Package STD
  • 675
    250000723 Phillips Screw K40 X 16
    Phillips Screw K40 X 16
  • 680
    705004147 LH Extension Pannel
    LH Extension Pannel
  • 690
    705003444 Engine Cover
    Engine Cover
  • 700
    705012554 Gauge Support. Except Package PRO
    Gauge Support. Except Package PRO
  • 700
    705012572 Gauge Support. Package PRO
    Gauge Support. Package PRO
  • 710
    715002783 Dash Kit
    Dash Kit
  • 720
    705003264 Grommet
    Grommet
  • 730
    705010714 RH Inner Fender
    RH Inner Fender
  • 750
    705012338 LH Inner Fender
    LH Inner Fender
  • 770
    293150230 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 820
    715001910 Front Bumper kit. Package XT
    Front Bumper kit. Package XT
  • 822
    233281464 Elastic Flange Nut M8
    Elastic Flange Nut M8
  • 823
    207582544 Hex. Flanged Screw M8 X 25, Scotch Grip. Package XT
    Hex. Flanged Screw M8 X 25, Scotch Grip. Package XT
  • 825
    250000898 Screw Pan Torx M8 X 25
    Screw Pan Torx M8 X 25
  • 830
    715001911 Rear Bumper kit. Package XT
    Rear Bumper kit. Package XT
  • 840
    705202455 Cap. Package XT
    Cap. Package XT
  • 930
    715001897 LH Extension Panel. Max Model
    LH Extension Panel. Max Model
  • 940
    705004348 RH Extension Panel. Max Model
    RH Extension Panel. Max Model
  • 960
    705006870 Heat Shield. Max Model
    Heat Shield. Max Model
  • 970
    705006871 Heat Shield. Max Model
    Heat Shield. Max Model
  • 1010
    705007948 Seat Holder. Max Model
    Seat Holder. Max Model
  • 1080
    704700168 Tool Kit
    Tool Kit
  • 1110
    529000035 Adjustement Wrench
    Adjustement Wrench
