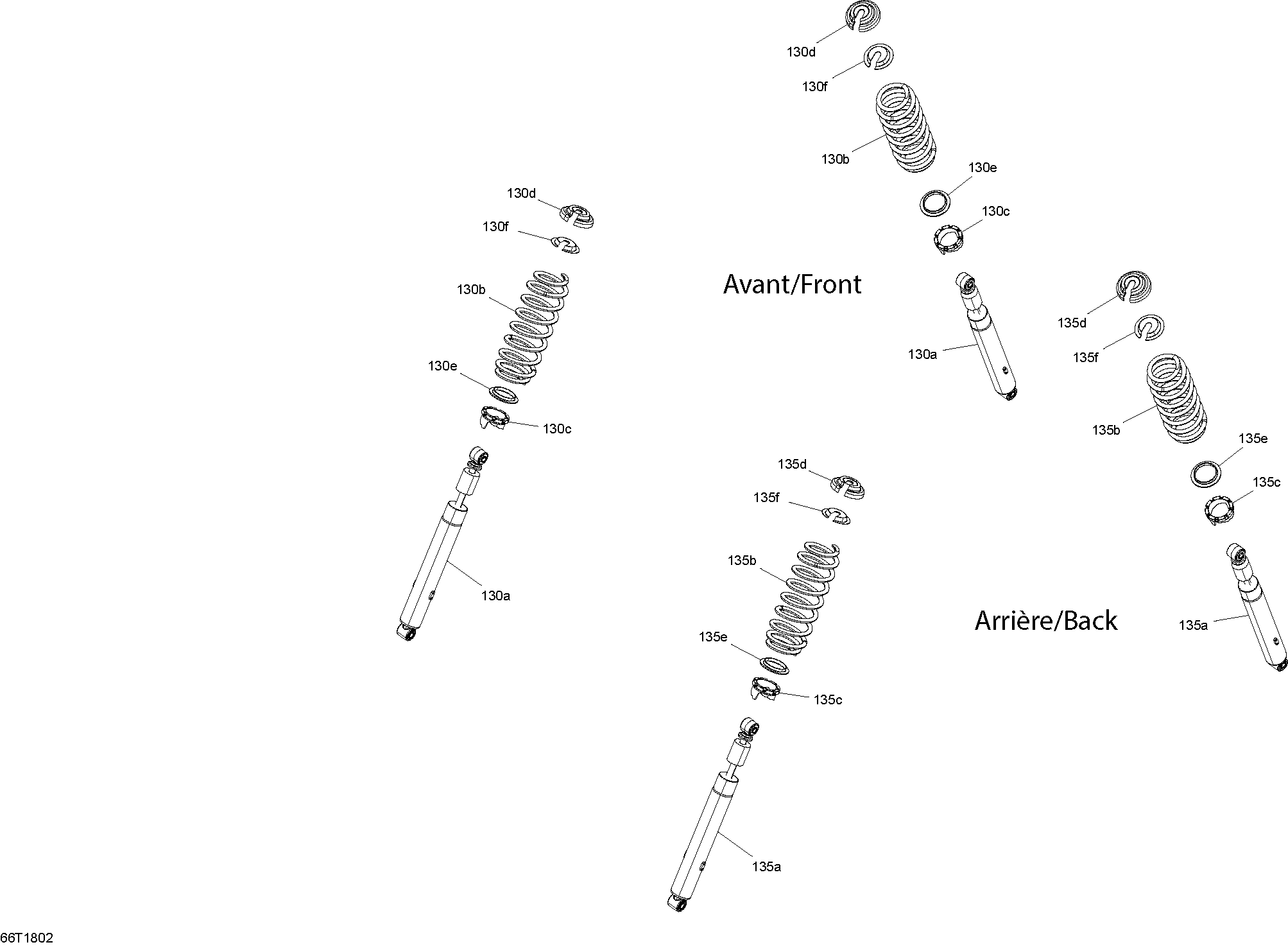

07- Shocks PRO для BRP 1- Outlander T3 570 EFI - 2018
-
№АртикулНазвание
-
130a706201170 Front Shock. FrontFront Shock. Front
-
130b706202394 Black Spring. FrontBlack Spring. Front
-
130c505073625 Adjustment Cam. FrontAdjustment Cam. Front
-
130d706200881 Spring Stopper. FrontSpring Stopper. Front
-
130e503187500 Spring Guide. FrontSpring Guide. Front
-
130f706200785 Cap. FrontCap. Front
-
135a706000958 Shock. RearShock. Rear
-
135b706002427 Black Spring. RearBlack Spring. Rear
-
135c505073625 Adjustment Cam. RearAdjustment Cam. Rear
-
135d706200881 Spring Stopper. RearSpring Stopper. Rear
-
135e503187500 Spring Guide. RearSpring Guide. Rear
-
135f706200785 Cap. RearCap. Rear
