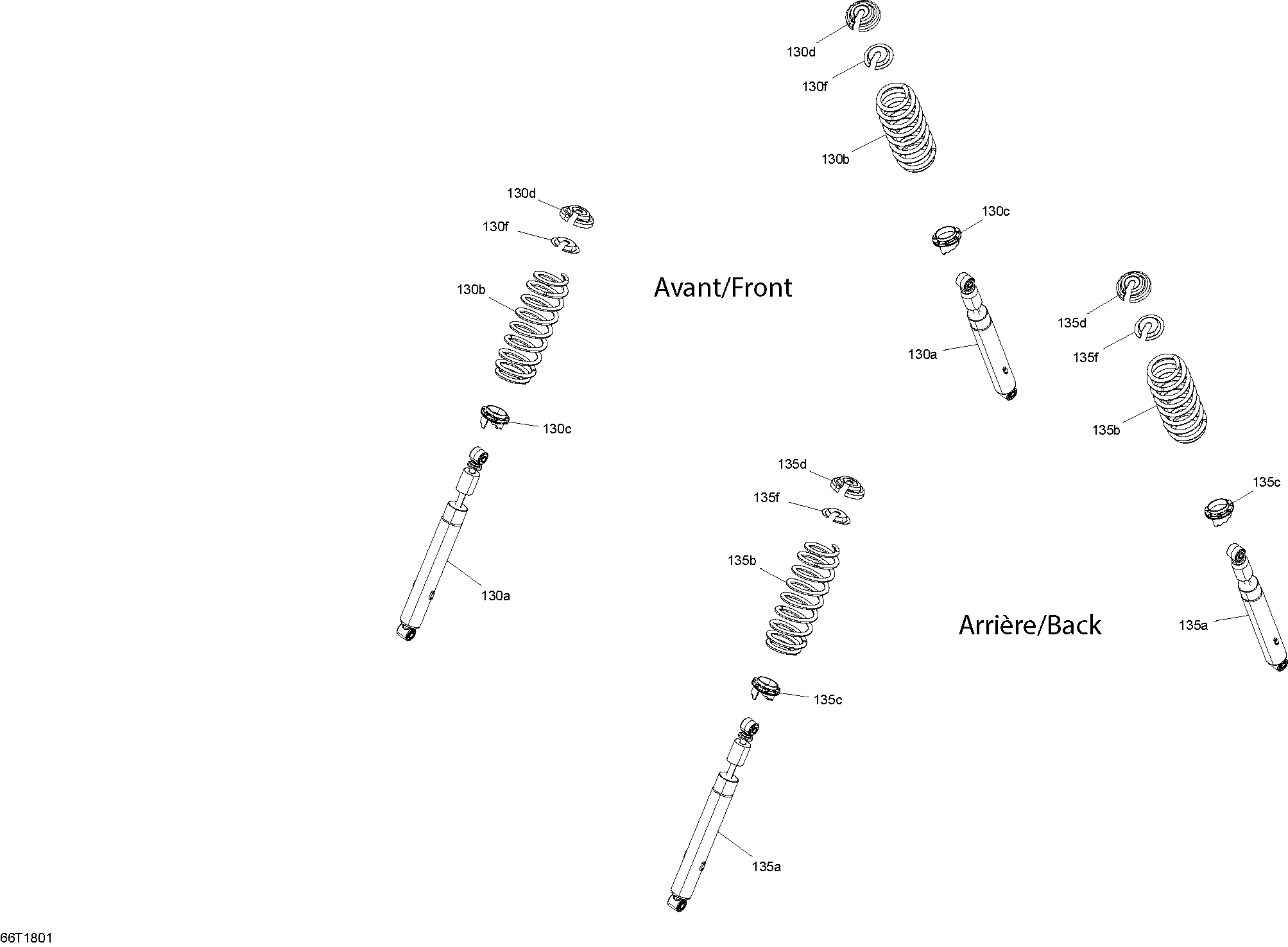

07- Shocks DPS для BRP 1- Outlander T3 570 EFI - 2018
-
№АртикулНазвание
-
130
-
130a706000958 Shock. OUT&P-XTShock. OUT&P-XT
-
130b706002464 Black Spring. OUT&P-XTBlack Spring. OUT&P-XT
-
130c505073625 Adjustment Cam. OUT&P-XTAdjustment Cam. OUT&P-XT
-
130d706200881 Spring Stopper. OUT&P-XTSpring Stopper. OUT&P-XT
-
130e503187500 Spring Guide. OUT&P-XTSpring Guide. OUT&P-XT
-
130f706200785 Cap. OUT&P-XTCap. OUT&P-XT
-
130
-
130a706000970 Rear Shock. OUT-MAX&P-XTRear Shock. OUT-MAX&P-XT
-
130a706201163 Front Shock. FrontFront Shock. Front
-
130b706202629 Black Spring. FrontBlack Spring. Front
-
130c706002356 Adjuster Ring. FrontAdjuster Ring. Front
-
130d706200881 Spring Stopper. FrontSpring Stopper. Front
-
130f706200785 Cap. FrontCap. Front
-
135a706001524 Rear Shock. RearRear Shock. Rear
-
135b706002475 Black Spring. RearBlack Spring. Rear
-
135c706002356 Adjuster Ring. RearAdjuster Ring. Rear
-
135d706200881 Spring Stopper. RearSpring Stopper. Rear
-
135f706200785 Cap. RearCap. Rear
