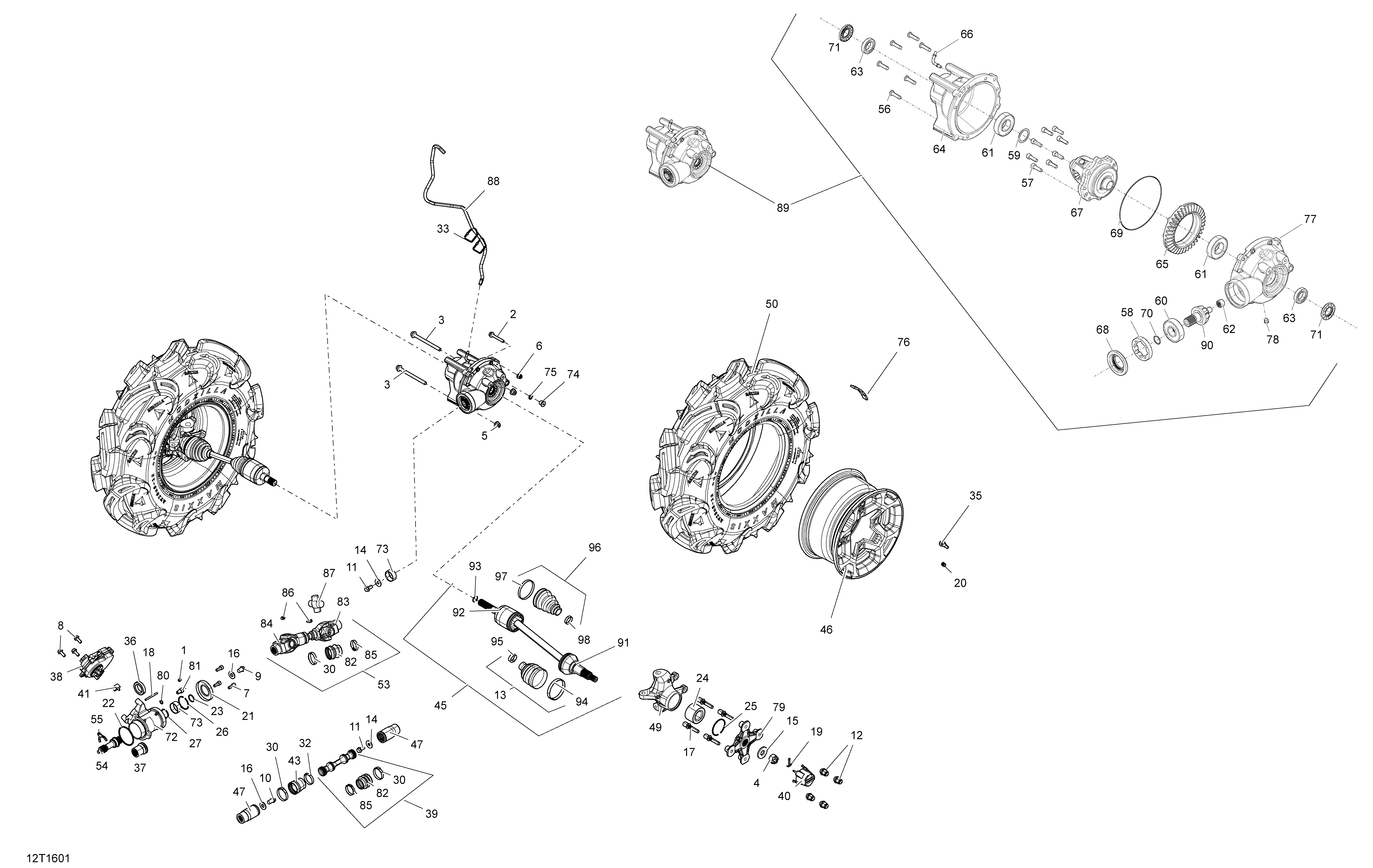

07- Front Drive System - All Models для BRP Outlander L - Outlander L MAX - 2016

№

Артикул

Название
1

206580890 Pressure Screw M8 X 8. Engine 450

Pressure Screw M8 X 8. Engine 450
2

207685544 Hex. Flanged Screw M8 X 55

Hex. Flanged Screw M8 X 55
3

230602546 Hex. Flanged Screw M10 X 125

Hex. Flanged Screw M10 X 125
4

250100047 Hex. Castellated Nut M18

Hex. Castellated Nut M18
5

233201436 Flanged Elastic Nut M10

Flanged Elastic Nut M10
6

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8
7

250000136 Socket Head Screw M8 X 20, Scotch Grip. Engine 450

Socket Head Screw M8 X 20, Scotch Grip. Engine 450
8

250000137 Hex. Flanged Screw M8 X 20, Scotch Grip. Engine 450

Hex. Flanged Screw M8 X 20, Scotch Grip. Engine 450
9

250000359 Hex Flanged Screw M12 x 16. Engine 450

Hex Flanged Screw M12 x 16. Engine 450
10

250000540 Hex Flanged Screw M12 X 20. Engine 570

Hex Flanged Screw M12 X 20. Engine 570
11

250000847 Hex. Flanged Screw M10 X 20

Hex. Flanged Screw M10 X 20
12

250100042 Steel Wheel Nut. Package STD

Steel Wheel Nut. Package STD
12

250100082 Chrome Wheel Nut M10 X 1.25. Package DPS Except Camo

Chrome Wheel Nut M10 X 1.25. Package DPS Except Camo
12

250100100 Black Wheel Nut M10 X 1.25. Package PRO - DPS (Camo) - XMR, LE, Hunter

Black Wheel Nut M10 X 1.25. Package PRO - DPS (Camo) - XMR, LE, Hunter
13

705401345 Boot Kit, Wheel Side. Package XMR

Boot Kit, Wheel Side. Package XMR
13

715900298 CV Boot Kit, Wheel Side. Except Package XMR

CV Boot Kit, Wheel Side. Except Package XMR
14

250200014 Flat Washer M10

Flat Washer M10
15

250200049 Spring Washer

Spring Washer
16

250200102 Flat Washer M12

Flat Washer M12
17

250300048 Wheel Stud

Wheel Stud
18

250400025 Dowell Pin. Engine 450

Dowell Pin. Engine 450
19

250400071 Cotter Pin

Cotter Pin
20

293000110 Valve Cap

Valve Cap
21

293250348 Oil Seal. Engine 450

Oil Seal. Engine 450
22

293300091 O-Ring. Engine 450

O-Ring. Engine 450
23

293300179 O-ring. Engine 450

O-ring. Engine 450
24

293350040 Cone Bearing

Cone Bearing
25

293370019 Circlip

Circlip
26

293370029 Circlip. Engine 450

Circlip. Engine 450
27

293370030 Circlip. Engine 450

Circlip. Engine 450
30

293650138 Oetiker Gear Clamp. Engine 450

Oetiker Gear Clamp. Engine 450
30

293650138 Oetiker Gear Clamp. Engine 570

Oetiker Gear Clamp. Engine 570
32

293650199 Oetiker Gear Clamp

Oetiker Gear Clamp
33

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm
35

705400193 Rim Valve With Cap

Rim Valve With Cap
36

705400249 Ball Bearing. Engine 450

Ball Bearing. Engine 450
37

705400389 Coupling Sleeve. Engine 450

Coupling Sleeve. Engine 450
38

705400581 Actuator Ass'y. Engine 450

Actuator Ass'y. Engine 450
39

705400913 Front Drive Axle Ass'y. Engine 570

Front Drive Axle Ass'y. Engine 570
40

705400928 Wheel Cap

Wheel Cap
41

705400956 Slider. Engine 450

Slider. Engine 450
43

705401093 Rubber Boot. Engine 570

Rubber Boot. Engine 570
45

705401115 LH Homocinetic Joint. Package XMR

LH Homocinetic Joint. Package XMR
45

705401116 RH Homocinetic Joint. Package XMR

RH Homocinetic Joint. Package XMR
45

705401428 RH Homocinetic Joint. Except Package XMR

RH Homocinetic Joint. Except Package XMR
45

705401429 LH Homocinetic Joint. Except Package XMR

LH Homocinetic Joint. Except Package XMR
46

705401199 Black Front Rim. Package STD

Black Front Rim. Package STD
46

705401402 SilverFront Rim. Package DPS Except Camo Model

SilverFront Rim. Package DPS Except Camo Model
46

705401522 Black Front Rim. Package DPS Camo Model

Black Front Rim. Package DPS Camo Model
46

705401127 Black Front Rim. Package PRO, LE, Hunter

Black Front Rim. Package PRO, LE, Hunter
46

705401420 Black Front Rim. Package XMR

Black Front Rim. Package XMR
47

703500678 Front Bushing Shaft Kit. Engine 570

Front Bushing Shaft Kit. Engine 570
49

705401290 LH Knuckle

LH Knuckle
49

705401291 RH Knuckle

RH Knuckle
50

705401625 Front Tire. Package STD - DPS Model

Front Tire. Package STD - DPS Model
50

705401626 Front Tire. Package STD - DPS _Europe Model

Front Tire. Package STD - DPS _Europe Model
50

705401736 Front Tire. Package PRO International -Hunter, LE

Front Tire. Package PRO International -Hunter, LE
50

705401737 Front Tire. Package PRO Europe

Front Tire. Package PRO Europe
50

705401391 Front Tire. Package XMR

Front Tire. Package XMR
53

705401492 Front Drive Axle Ass'y. Engine 450

Front Drive Axle Ass'y. Engine 450
54

705401509 Idler Shaft Gear. Engine 450

Idler Shaft Gear. Engine 450
55

705401553 Shifter Lever Plate. Engine 450

Shifter Lever Plate. Engine 450
56

705401601 Screw

Screw
57

705401602 Screw

Screw
58

705401603 Nut

Nut
59

705401604 Shim

Shim
60

705401605 Ball Bearing

Ball Bearing
61

705401606 Ball Bearing

Ball Bearing
62

705401607 Needle Bearing

Needle Bearing
63

705401608 Ball Bearing

Ball Bearing
64

705401610 Front Cover

Front Cover
65

705401612 Gear 36 Teeth

Gear 36 Teeth
66

705401613 Vent Valve

Vent Valve
67

705401506 Differential. Except Package STD

Differential. Except Package STD
67

705401614 Differential. Package STD

Differential. Package STD
67a

705401769 Shim

Shim
67b

705401770 Shim

Shim
68

705401615 Oil Seal

Oil Seal
69

705401616 Seal

Seal
70

705401617 O'Ring

O'Ring
71

705401618 Gasket

Gasket
72

705401632 Housing. Engine 450

Housing. Engine 450
73

705400036 Wear Ring

Wear Ring
74

705500504 Fill Level Plug

Fill Level Plug
75

705500506 Copper Washer

Copper Washer
76

705501385 1/2 OZ Weight

1/2 OZ Weight
77

705401792 Front Cover, Pinion

Front Cover, Pinion
78

705501885 Drain Plug

Drain Plug
79

705501900 Wheel Hub

Wheel Hub
80

705600310 Copper Washer. Engine 450

Copper Washer. Engine 450
81

710000324 Switch. Engine 450

Switch. Engine 450
82

715900118 Rubber Boot

Rubber Boot
83

715900116 Fixed Yoke Joint. Engine 450

Fixed Yoke Joint. Engine 450
84

715900293 Yoke Joint. Engine 450

Yoke Joint. Engine 450
85

509000045 Oetiker Gear Clamp

Oetiker Gear Clamp
86

715900295 Grease Fitting. Engine 450

Grease Fitting. Engine 450
87

703500845 Universal Joint Kit. Engine 450

Universal Joint Kit. Engine 450
88

415080200 Hose, Polyurethane

Hose, Polyurethane
89

703500899 Front Differential Ass'y. Package STD

Front Differential Ass'y. Package STD
89

703500900 Front Differential Ass'y. Except Package STD

Front Differential Ass'y. Except Package STD
90

705401791 Pinion 10 Teeth

Pinion 10 Teeth
91

705401344 CV Joint. Package XMR

CV Joint. Package XMR
91

715900297 CV Joint. Except Package XMR

CV Joint. Except Package XMR
92

705401348 RH Plunging Joint. Package XMR

RH Plunging Joint. Package XMR
92

705401350 LH Plunging Joint. Package XMR

LH Plunging Joint. Package XMR
92

715900300 RH Plunging CV Joint. Except Package XMR

RH Plunging CV Joint. Except Package XMR
92

715900301 LH Plunging CV Joint. Except Package XMR

LH Plunging CV Joint. Except Package XMR
93

705401349 Circlip Joint

Circlip Joint
94

715900262 Oetiker Clamp, Large. Except Package XMR

Oetiker Clamp, Large. Except Package XMR
94

715900282 Oetiker Clamp, Large. Package XMR

Oetiker Clamp, Large. Package XMR
95

715900283 Oetiker Clamp, Small. Package XMR

Oetiker Clamp, Small. Package XMR
95

715900317 Oetiker Clamp, Small. Except Package XMR

Oetiker Clamp, Small. Except Package XMR
96

705401346 Boot Kit, Differential Side. Package XMR

Boot Kit, Differential Side. Package XMR
96

715900299 CV Boot Kit, Differential Side. Except Package XMR

CV Boot Kit, Differential Side. Except Package XMR
97

715900284 Oetiker Clamp, Large. Package XMR

Oetiker Clamp, Large. Package XMR
97

715900318 Oetiker Clamp, Large. Except Package XMR

Oetiker Clamp, Large. Except Package XMR
98

715900261 Oetiker Clamp, Small. Package XMR

Oetiker Clamp, Small. Package XMR
98

715900317 Oetiker Clamp, Small. Except Package XMR

Oetiker Clamp, Small. Except Package XMR
